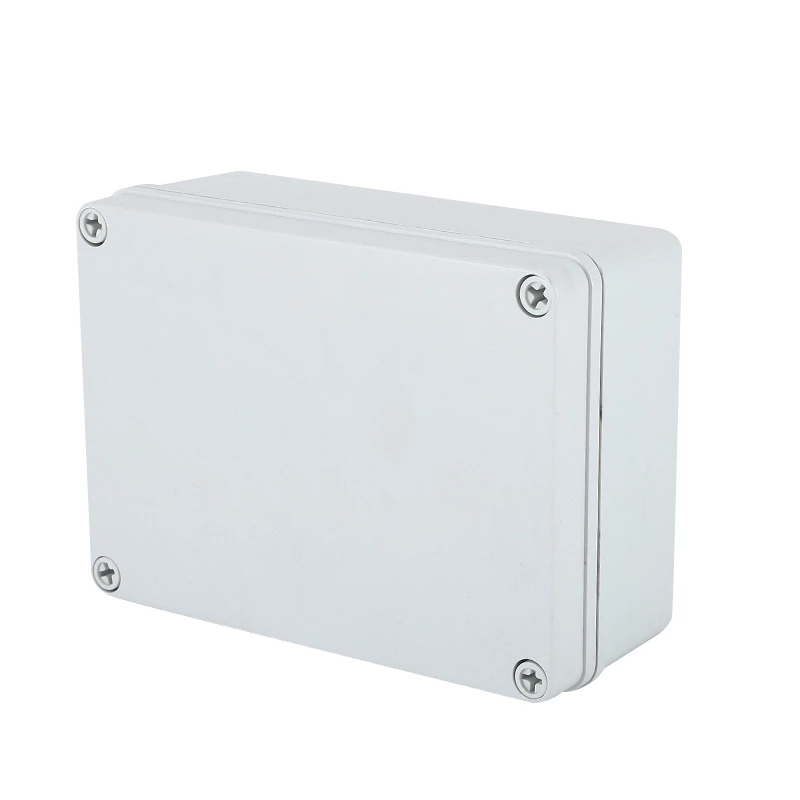

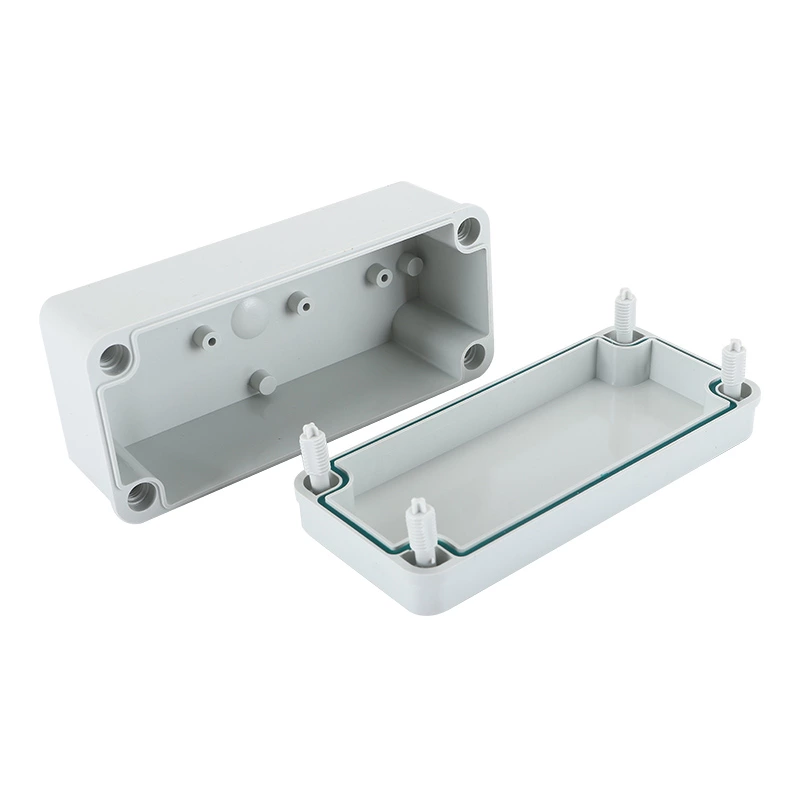

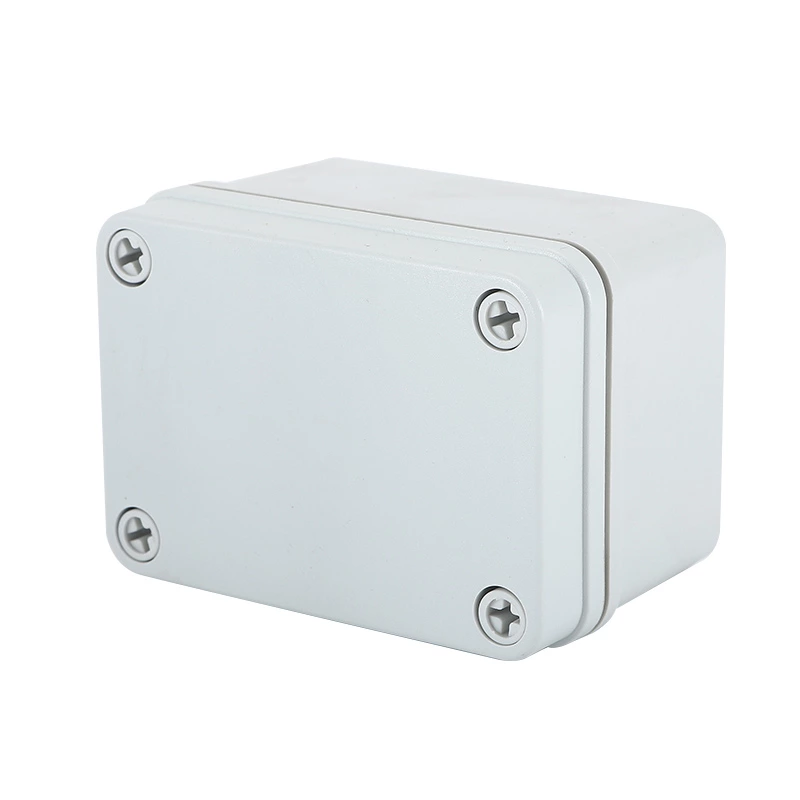

Description
Plastic junction boxes are widely used in the low-voltage electrical field, exhibiting features such as fire resistance, insulation, corrosion resistance, and acid and alkali resistance. The terminals inside the junction box are designed with a fixed structure, making them less prone to loosening and ensuring secure and stable wire connections.
SHAG uses PC raw materials, which can maintain stable electrical performance even under humid and high-temperature conditions. It is not afraid of harsh environments, has anti-aging and anti-ultraviolet properties, and comes in a variety of specifications and sizes. It can be customized to assemble any components.

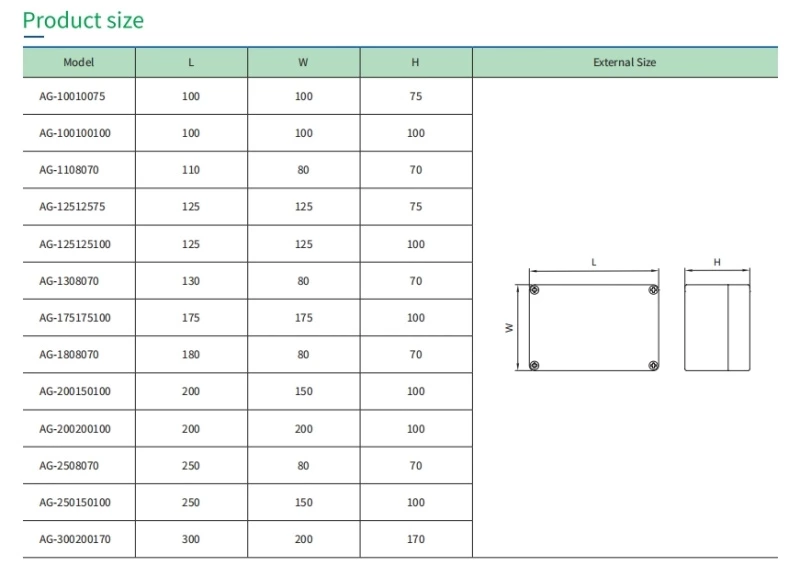

Specification
Advantage
Characteristic:
Colour: RAL 7035
Type of cover: Cover
Number of rows: 1
Product accessories: Mounting fittings
IP protection level: IP65
Flame retardant: 750℃ （30s）
ENVIRONMENTAL CONDITION
Application area: Indoor/Outdoor installation
Maximum ambient temperature 24 h: 35 °C
Ambient temperature: -5 °C up to +40 °C
Relative humidity: ≤ 50 % at 40 °C, ≤ 100 % at 25 °C
ELECTRIC BOX PERFORMANCE
Rated voltage: Un = 400 V
Rated insulation voltage：Ui:690V
Protection class:II
Rated current (of the terminal):In = 75 A
N separable:No
conforming to the standards:EN 60670-1, DIN EN 60670-24
MATERIAL CHARACTERISTICS
Material:PC plastic
According to IEC 60695-2-11 glow wire test temperature:750 °C
UL 94 Class:V-2
Temperature resistance:-25 °C up to +80 °C
Halogen-free:Yes
Silicone-free:Yes
Location
Metallurgy, steel, nuclear power plant, power plant, chemical industry, tunnel engineering, subway, charging pile, photovoltaic
