HY-D100C Single Phase Plastic Metering box
- Product Name:
- Single Phase Plastic Metering Enclosure
- Model Number:
- SO-HY-D100C
- Brand:
- SMICO
- Supply Ability:
- 1000000
- Operating Temperature:
- -25 ℃ ~ +50℃
- Color:
- White or Gray
- Material:
- Fire retardant Polycarbonate and ABS material
Description
SO-HY-D100C Single Phase plastic metering box is specially designed for the purpose of anti-tamper and protection of meter.

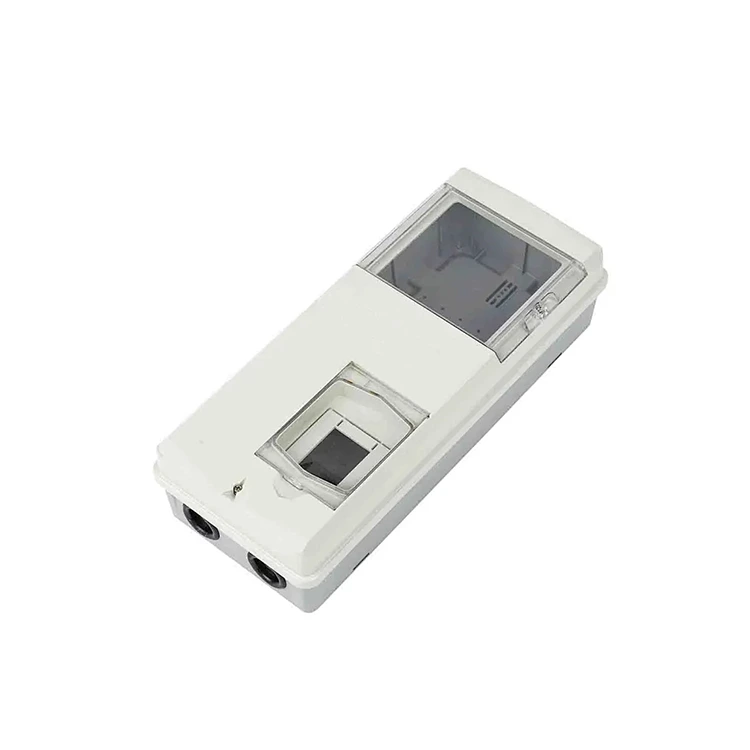

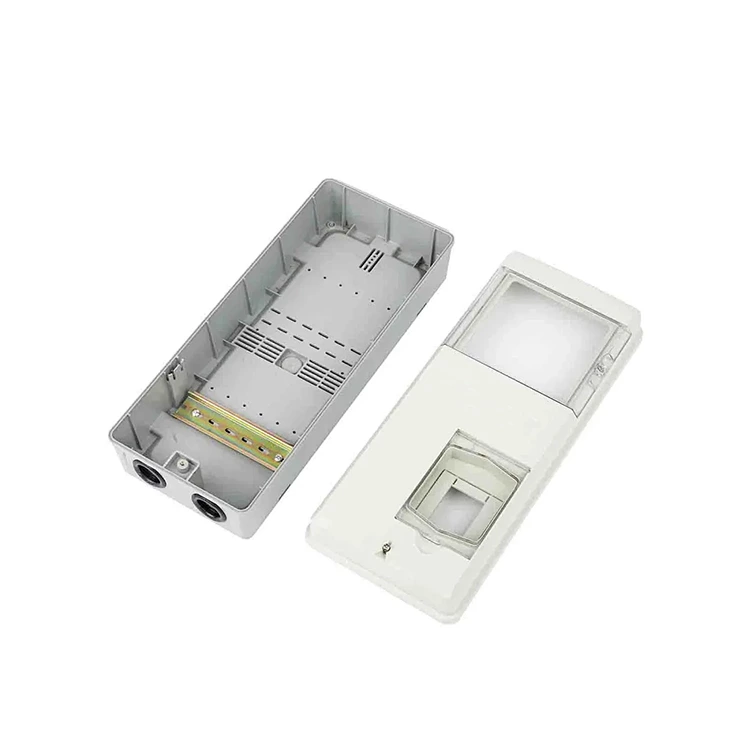

The plastic metering box is with two transparent windows, easily for operate meter and mcb. The material of plastic metering
boxis polycarbonate and ABS with UV resistance and V0 frame resistance degree. Pole mounted or wall mounted or lock and
key protection are based on project demand. Alarm sensor for enclosure opening is reserved function.
Specification
| Description | Paremeters |

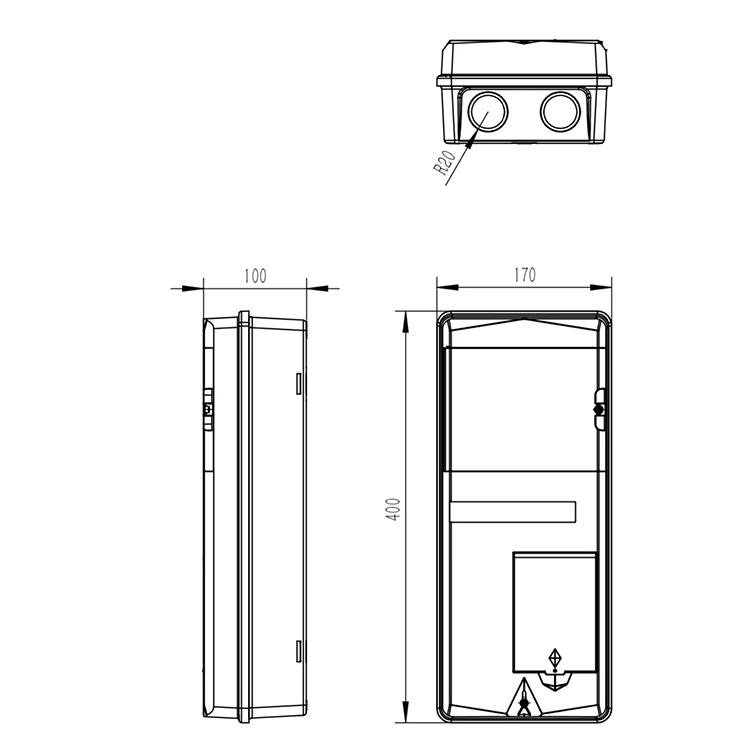

| Dimension | 400mm*170mm*100mm (L*W*H) |
| Material of top cover | Polycarbonate transparent |
| Material of turnover window | Polycarbonate transparent |
| Material of base | Polycarbonate +ABS |
| Protection Rate | IP54,IK09 |
| Anti-UV | Yes |
| Flame resistance degree | V0 |
| Anti-tamper protection | Seal and padlock for cover and seal for windows |
| Method of production | Injection |
| Working Temperature | -40ºC to 80ºC |
| Heat dissipation | Ventilation hole for cooling |
| Installation provision for MCB | Yes |

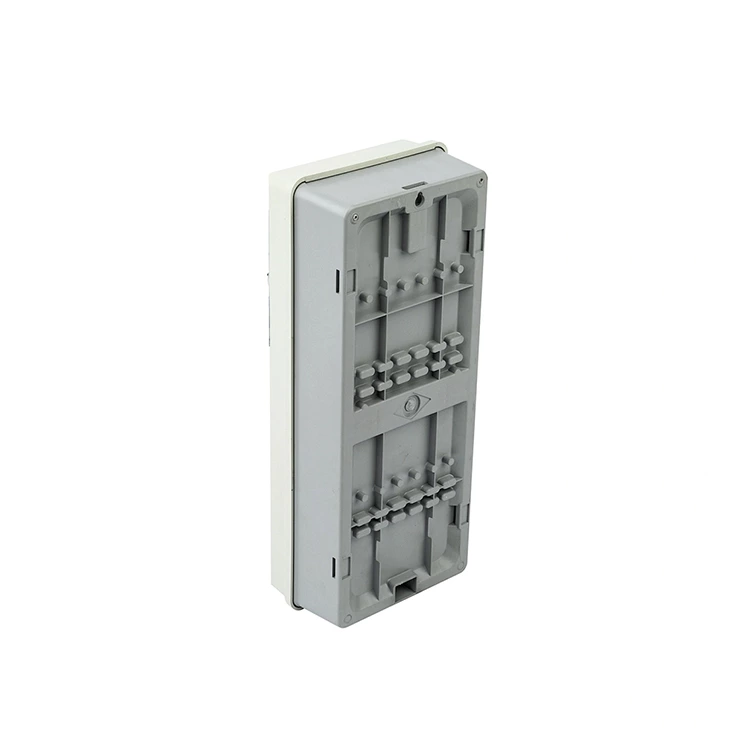

| Mounting methods | Pole mounted by stainless steel strap or wall mounted by screw |
| Thickness | Top cover 2mm, base 2mm, windows 2.2mm |
Advantage
1. Model No.: SO-HY-D100C
2. High protection rate IP54
3. Type: Polycarbonate&ABS Plastic metering box
4. Outline Dimension: 400*170*100mm
5. Color: White or Gray
6. Port: Ningbo/Shanghai, China
7. Operating Temperature: -25 ℃ ~ +50℃
8. Fire retardant Polycarbonate or ABS material
9. Optional wall mounted or pole mounted
10. Span life more than 30years
Location
- Metallurgy, steel, nuclear power plants
- Tunnels, subways, charging piles
- Photovoltaic systems and other electrical connection environments that require waterproofing and dustproofing
