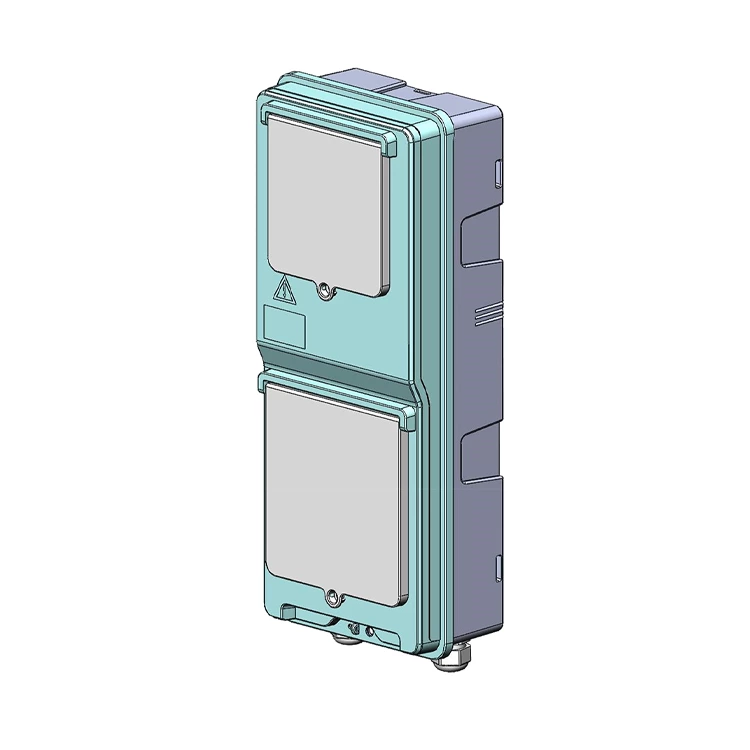

Single Phase Smart Meter Enclosure African ME1C
- Product Name:
- Single Phase Energy Smart Meter Enclosure African
- Model Number:
- SO-ME1C
- Brand:
- SMICO
- Standard:
- 1000000
- Operating Temperature:
- -30ºC to 80ºC
- Color:
- White or Gray
- Material:
- PC+10% GF non-transparent / PC transparent
Description
Energy Smart Meter Box Componects
1. Base
2. Energy meter
3. Fuse
4. Differential circuit breaker
5. Up cover
6. Turnover window for energy meter
7. Turnover windon for different circuit breaker
Installation Methods
Specification

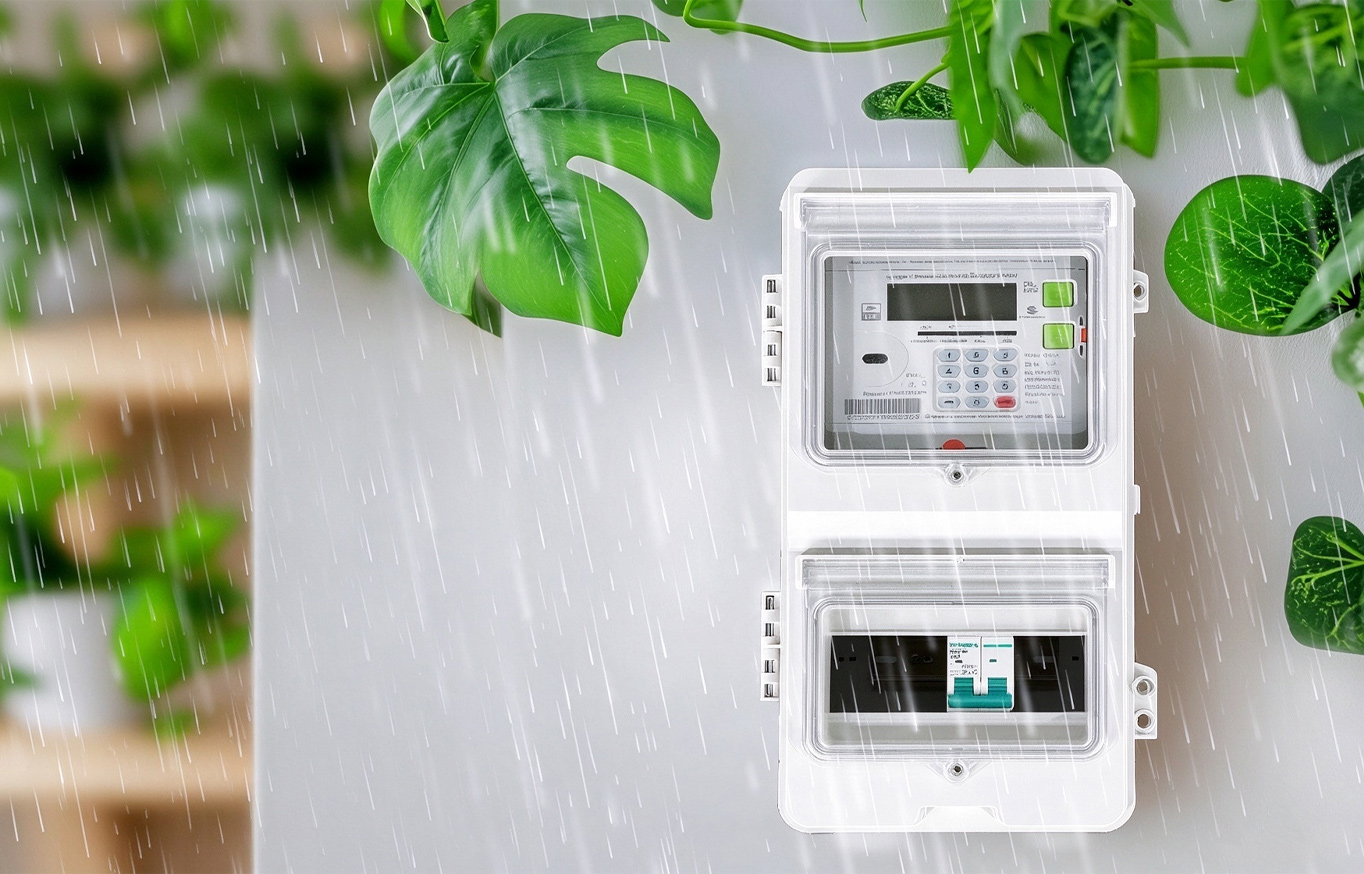

Single-phase meter enclosures are specifically designed for tamper resistance and meter protection - a BS type meter can be mounted via a bottom connection. The enclosure is equipped with two separate transparent windows, opaque/transparent top cover and opaque base. The enclosure is made of UV resistant polycarbonate and has a V0 frame rating. The mounting method can be pole mounted, wall mounted or key locked depending on the project requirements. Alarm sensor function is reserved to detect the opening of the enclosure. The frame can also adapt to the cut shape.
| Description | Paremeters |
| Dimension | 492mm*208mm*127mm (L*W*H) |
| Material of top cover | PC+10% GF non-transparent / PC transparent |
| Material of turnover window | PC transparent |
| Material of base | PC+10% GF non-transparent |
| Protection Rate | IP55,IK10 |
| Anti-UV | Yes |
| Flame resistance degree | V0 |
| Anti-tamper protection | Seal and padlock for cover and seal for windows |
| Method of production | Injection |
| Working Temperature | -30ºC to 80ºC |
| Heat dissipation | Ventilation hole for cooling |
| Installation provision for MCB | Yes |
| Mounting methods | Pole mounted by stainless steel strap or wall mounted by screw |
| Thickness | Top cover 2.3mm, base 2.3mm, windows 2mm |
Noted: Material can be customized
Advantage
1. Model No.: SO-HY-D400D
2. High protection rate IP54
3. Type: Din rail type Single Phase Meter Enclosure
4. Outline Dimension: 365*270*128mm
5. Color: White or Gray
6. Port: Ningbo/Shanghai, China
7. Operating Temperature: -25 ℃ ~ +50℃
8. Fire retardant Polycarbonate or ABS material
9. Optional wall mounted or pole mounted
10, Long span life more than 20years.
Location
- Metallurgy, steel, nuclear power plants
- Tunnels, subways, charging piles
- Photovoltaic systems and other electrical connection environments that require waterproofing and dustproofing
Packaging
