HL-S200 Three Phase Two Way New Meter box
- Product Name:
- Single Phase One Way Electrical Meter box
- Model Number:
- SO-HL-S200
- Brand:
- SMICO
- Supply Ability:
- 1000000
- Operating Temperature:
- -25 ℃ ~ +50℃
- Color:
- White or Gray
- Material:
- Fire retardant Polycarbonate and ABS material
Description
SO-HL-S200 Three Phase Two Way New Meter box is specially designed for the purpose of anti-tamper and protection of meter.
The SO-HL-S200 Three Phase Two Way New Meter box material is made of PC+ABS, its sealed transparent cover could prevent the meters
from being touched and stolen. This kind of new Meter Box could house multiple ways of meters at the same time with MCB as optional.
The material of new Meter box is PC+ABS with UV resistance and V0 frame resistance degree. Pole mounted or wall mounted, or lock and
key protection are based on project demand. Alarm sensor for enclosure opening is reserved function.
Specification
| Description | Paremeters |

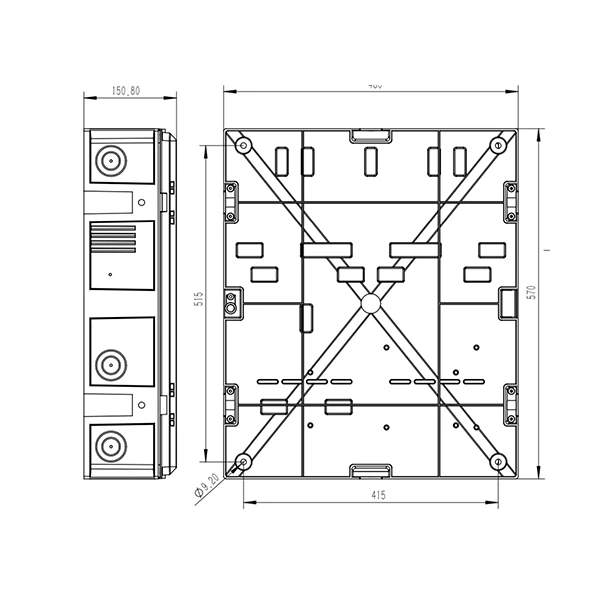

| Dimension | 575mm*480mm*150mm (L*W*H) |
| Material of top cover | Polycarbonate transparent |
| Material of turnover window | Polycarbonate transparent |
| Material of base | Polycarbonate +ABS |
| Protection degree | IP54,IK09 |
| Anti-UV | Yes |
| Flame resistance degree | V0 |
| Anti-tamper protection | Seal and padlock for cover and seal for windows |
| Method of production | Injection |
| Working Temperature | -40ºC to 80ºC |
| Heat dissipation | Ventilation hole for cooling |
| Installation provision for MCB | Yes |
| Mounting methods | Pole mounted by stainless steel strap or wall mounted by screw |
| Thickness | Top cover 2mm, base 2mm, windows 2.2mm |
Advantage
1. Model No.: SO-HL-S200
2. High protection rate IP54
3. Type:Three Phase Two Way New Meter Box
4. Outline Dimension: 575*480*150mm
5. Color: Gray
6. Port: Ningbo/Shanghai, China
7. Operating Temperature: -25 ℃ ~ +50℃
8. Fire retardant Polycarbonate and ABS material
9. Optional wall mounted or pole mounted
10. Span life more than 30years.
Location
- Metallurgy, steel, nuclear power plants
- Tunnels, subways, charging piles
- Photovoltaic systems and other electrical connection environments that require waterproofing and dustproofing
Packaging
Videos
FAQs
01. Manufacturer Offering Competitive Pricing and High Quality.
We are a direct-sales manufacturer offering both competitive pricing and high-quality products, helping you gain a foothold in the market—specifically in Wenzhou, Zhejiang Province, China. You are warmly invited to visit our company.
02. OEM/ODM Services.
We are a manufacturer backed by an exceptional and highly collaborative team.
03. Standard Payment Terms.
We accept various payment methods, including Telegraphic Transfer (TT) in advance, Letters of Credit (L/C), Western Union, and others. Please feel free to contact us if you have any questions!
04. Warranty Period.
1.5 years. Any quality issues will be resolved through free replacements included with your next order.
05. Free Samples.
Yes, we provide samples of smaller products for your quality assessment; you are only required to cover the courier fees.
