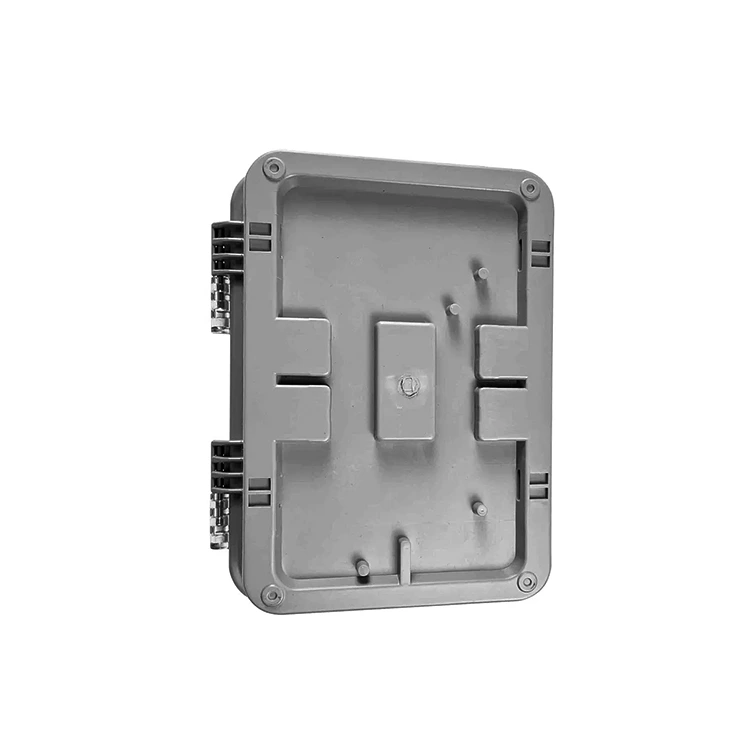

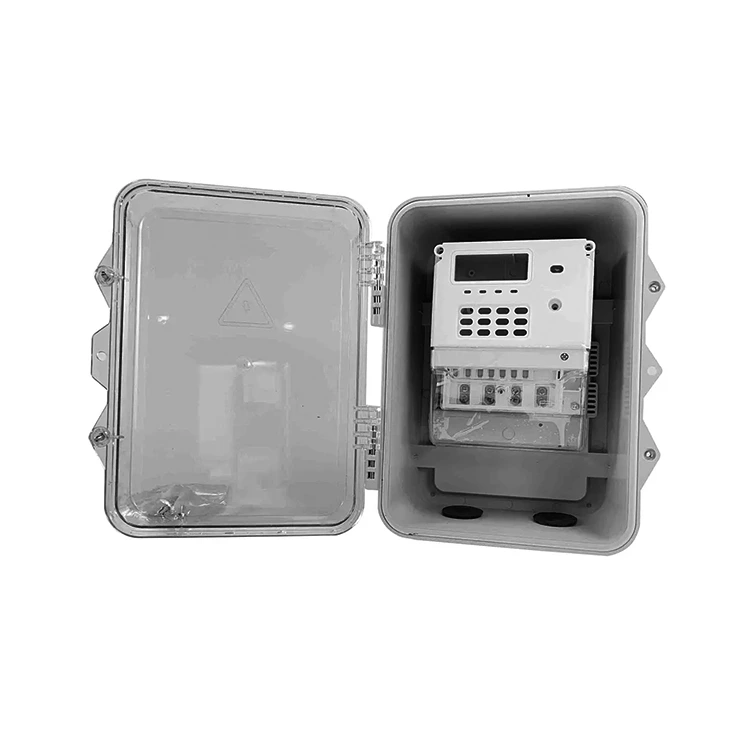

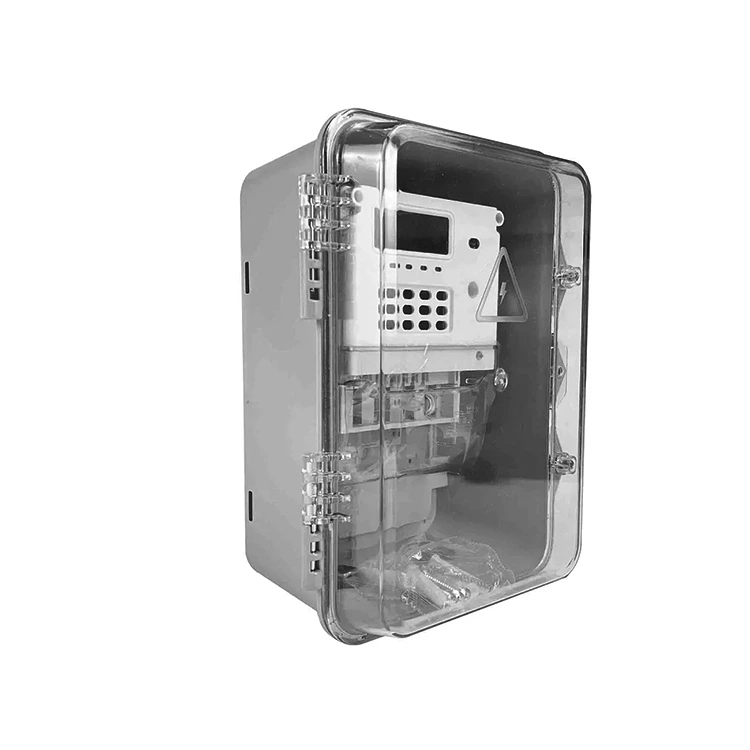

SO-C04 Single Phase One Way Meter box
- Product Name:
- Single Phase One Way Electrical Meter box
- Model Number:
- SO-C04
- Brand:
- SMICO
- Supply Ability:
- 1000000
- Operating Temperature:
- -30 ℃ ~ +50℃
- Color:
- White or Gray
- Material:
- Fire retardant Polycarbonate and ABS material
SO-C04 Single Phase One Way Meter box
Indtroduction:
SO-HL-D100 Single Phase One Way Meter box is specially designed for the purpose of anti-tamper and protection of meter.
The Electrical Meter box Cover material is made of PC+ABS, easily for checking meter and mcb. This model of one way meter box
can be installed with one meter using.The material of Electrical Meter box is polycarbonate + ABS with UV resistance and V0 frame resistance
degree.Pole mounted or wall mounted or lock and key protection are based on project demand. Alarm sensor for enclosure opening is reserved function.
Technical Data
1. Model No.: SO-C04
2. High protection rate IP54
3. Type:Single Phase One Way Meter Box
4. Outline Dimension: 269*217*123mm
5. Color: Gray
6. Port: Ningbo/Shanghai, China
7. Operating Temperature: -30 ℃ ~ +60℃
8. Fire retardant Polycarbonate and ABS material
9. Optional wall mounted or pole mounted
10. Span life more than 30years
Specification
| Description | Paremeters |
| Dimension | 269mm*217mm*123mm (L*W*H) |
| Material of turnover window | Polycarbonate transparent |
| Material of base | Polycarbonate +ABS |
| Protection degree | IP54,IK09 |
| Anti-UV | Yes |
| Flame resistance degree | UL94-V0 |
| Anti-tamper protection | Seal and padlock for cover and seal for windows |
| Method of production | Injection |
| Working Temperature | -30ºC to 50ºC |
| Heat dissipation | Ventilation hole for cooling |
| Installation provision for MCB | Yes |
| Mounting methods | Pole mounted by stainless steel strap or wall mounted by screw |
| Thickness | Top cover 2mm, base 2mm, windows 2.2mm |
