SO-HL-S100 One Way 3 Phase Meter Box

Product Name:
Single Phase One Way Electrical Meter box
Model Number:
SO-HL-S100
Brand:
SMICO
Supply Ability:
1000000
Operating Temperature:
-25 ℃ ~ +50℃
Color:
White or Gray
Material:
Fire retardant Polycarbonate and ABS material

SO-HL-S100 One Way 3 Phase Meter Box

Indtroduction:

SO-HL-S100 One Way 3 Phase Meter Box is specially designed for the purpose of anti-tamper and protection of meter.
The Electrical Meter box material is made of PC+ABS, easily for checking meter and mcb. This model of One Way 3 Phase Meter

Box can be installed with one Meter using.The material ofOne Way 3 Phase Meter Box is PC+ABS with UV resistance and V0 frame

resistance degree. Pole mounted or wall mounted or lock and keyprotection are based on project demand. Alarm sensor for enclosure

opening is reserved function

Technical Data

1. Model No.: SO-HL-D100

2. High protection rate IP54

3. Type:Single Phase One Way 3 Phase Meter Box

4. Outline Dimension: 400*255*150

5. Color: Gray

6. Port: Ningbo/Shanghai, China

7. Operating Temperature: -25 ℃ ~ +50℃

8. Fire retardant Polycarbonate  and ABS material

9. Optional wall mounted or pole mounted

10. Span life more than 30years.

Specification

Description Paremeters

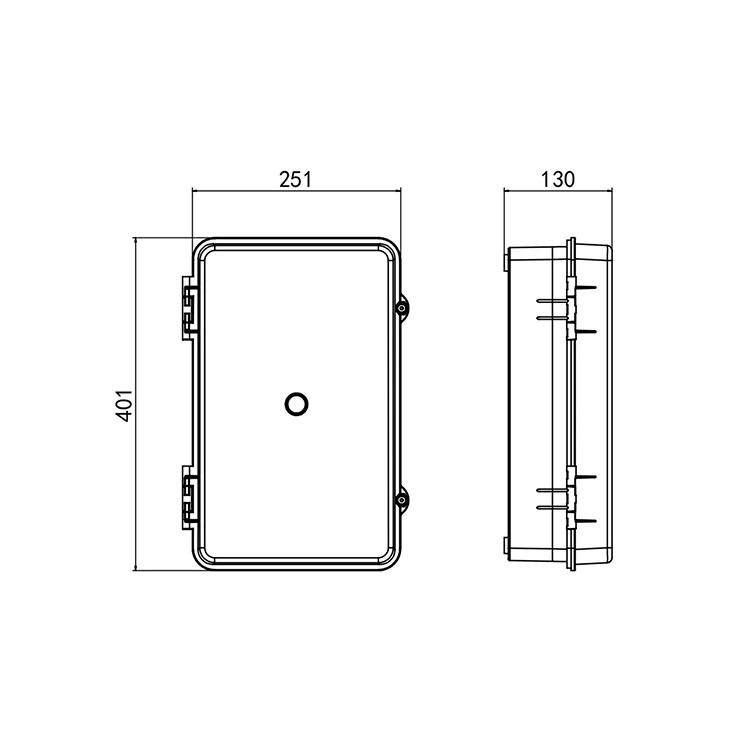

Dimension 400mm*255mm*150mm (L*W*H)
Material of top cover Polycarbonate transparent
Material of turnover window Polycarbonate transparent
Material of base Polycarbonate+ABS
Protection degree IP54,IK09
Anti-UV Yes
Flame resistance degree V0
Anti-tamper protection Seal and padlock for cover and seal for windows
Method of production Injection
Working Temperature -40ºC to 80ºC
Heat dissipation Ventilation hole for cooling
Installation provision for MCB Yes
Mounting methods Pole mounted by stainless steel strap or wall mounted by screw
Thickness Top cover 2mm, base 2mm, windows 2.2mm
