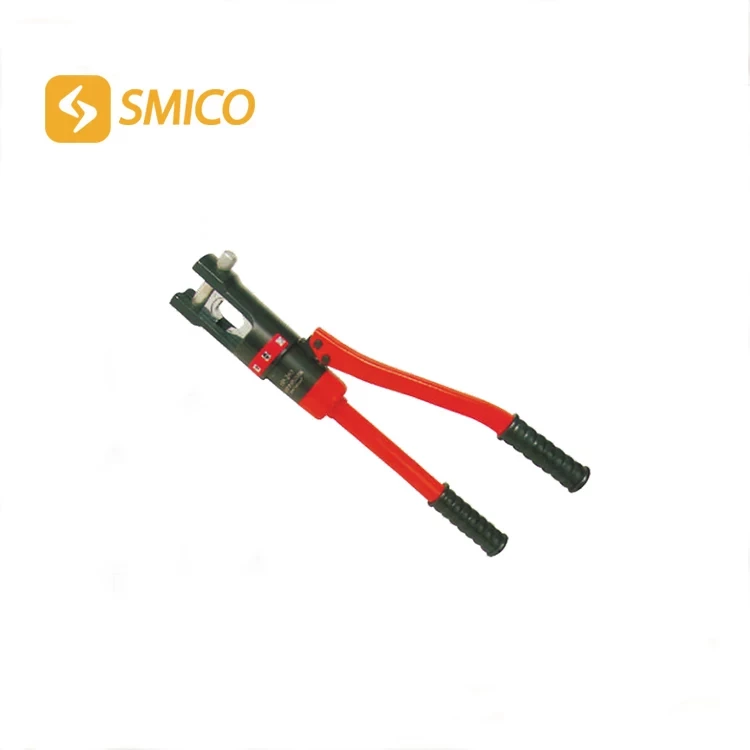

YQ-240/300 HP-240/300/300B Fashion Simple Operation Hydraulic Angle Iron Cutter Tools
- weight:
- 3.8 / 3.9 / 4.0
- Output:
- 12
- Contact Mould:
- 10-240 / 16-300 / 16-240
- Ram Stroke:
- 18
- Size:
- 490×130×70
Description
Specification
| Specifications | |||||
| Model | Output(T) | Contact Mould(mm2) | Ram Stroke(mm) | Size(mm) | Weight(kg) |
| YQ-240 | 12 | 10-240 | 18 | 490×130×70 | 3.8 |
| YQ-300 | 12 | 16-300 | 18 | 490×130×70 | 3.9 |
| HP-240(Dual speed) | 12 | 16-240 | 18 | 490×130×70 | 3.8 |
| HP-300(Dual speed) | 12 | 16-300 | 18 | 490×130×70 | 3.9 |
| HP-300B(Dual speed，Safety devices) | 12 | 16-300 | 18 | 490×130×70 | 4.0 |
Advantage
1.The compression pliers are designed for hydraulic crimping on power calbe and wire.The crimped conductor is tested in high conductivity and close contact so that it's uneasy to break out and turn hot.
2.Dies are quickly put on tube by double speed unit.Then compression force lift and automatically change to low speed.The operation finishes with energy saving and time shorten.
3.Fitted with safety valve.When pressure reaches to limited max.Value,pressure release automatically to prevent over pressure.
4. Standard eleven sets of die assembling:16、25、35、50、70、95、120、150、185、240、(300)
5.Packing case is made from robust integral plastic box.
Location
Packaging
Downloads
| YQ-240/300 HP-240/300/300B Fashion Simple Operation Hydraulic Angle Iron Cutter Tools | Download |
FAQs
01. Manufacturer Offering Competitive Pricing and High Quality.
We are a direct-sales manufacturer offering both competitive pricing and high-quality products, helping you gain a foothold in the market—specifically in Wenzhou, Zhejiang Province, China. You are warmly invited to visit our company.
02. OEM/ODM Services.
We are a manufacturer backed by an exceptional and highly collaborative team.
03. Standard Payment Terms.
We accept various payment methods, including Telegraphic Transfer (TT) in advance, Letters of Credit (L/C), Western Union, and others. Please feel free to contact us if you have any questions!
04. Warranty Period.
1.5 years. Any quality issues will be resolved through free replacements included with your next order.
05. Free Samples.
Yes, we provide samples of smaller products for your quality assessment; you are only required to cover the courier fees.
