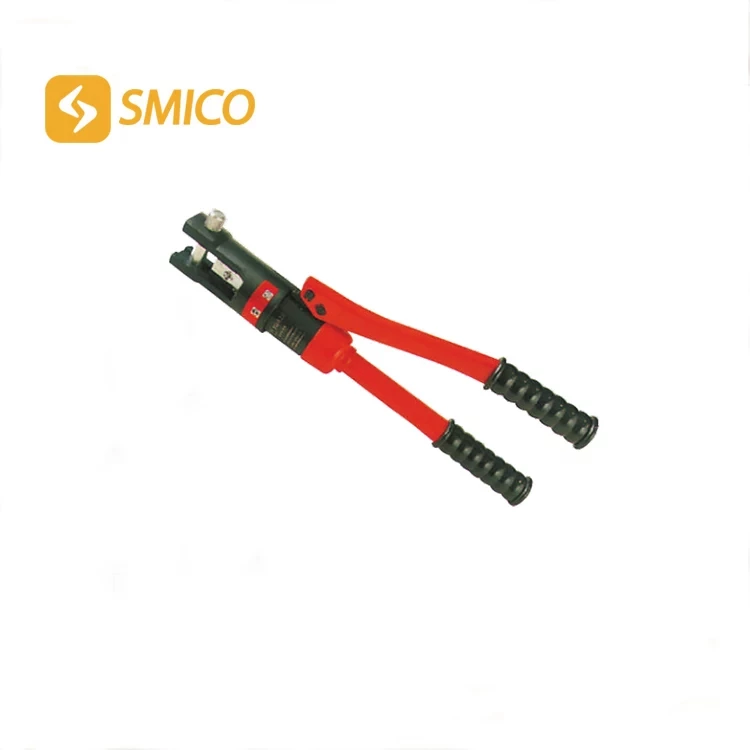

YQ-120 HP-120/120B Manual Hydraulic Crimping Tool

Hydraulic Crimping Tools
1.The compression pliers are designed for hydraulic crimping on power calbeand wire. The cirmped conductor is tested in high conductivity and close contact sp that it's uneasy to breaker out and turn hot.
2.Dies are quickly put on tube by double speed unit.Then compression force lift and automati cally change to low speed.The operation finishes with energy saving and time shorten.
3.Fitted with safety valve.When pressure reaches to liited max.Value,pressure release automatically to prevent over pressure.
4.Standard eight sets of die assembling:10、16、25、35、50、70、95、120
5.Packing case is made from robust integral plastic box.

Specifications
Model Output(T) Contact Mould(mm2) Ram Stroke(mm) Size(mm) Weight(kg)
YQ-120 8 10-120 14 415×126×65 3.0
HP-120(双速) 8 10-120 14 415×126×65 3.0
HP-120B(双速,安全装置) 8 10-120 14 415×126×65 3.1
