HEE 18pin Heavy Duty Rectangular Connector 09320183101 HEE-018-FC
- Number of contacts:
- 18 PINS
- Rated current:
- 16A
- Part:
- SO-HEE-018-FC
- Packaging Details:
- Standard Export Cartons
- Delivery Time:
- Within 7 Days
- Payment Terms:
- L/C, T/T, Western Union, Paypal
- Supply Ability:
- 100000 pcs per month
- Rated voltage conductor:
- 500V
- Product Certification:
- UL CUL CE ROHS DMT
- Order No.:
- 09320183101
Description
Specification

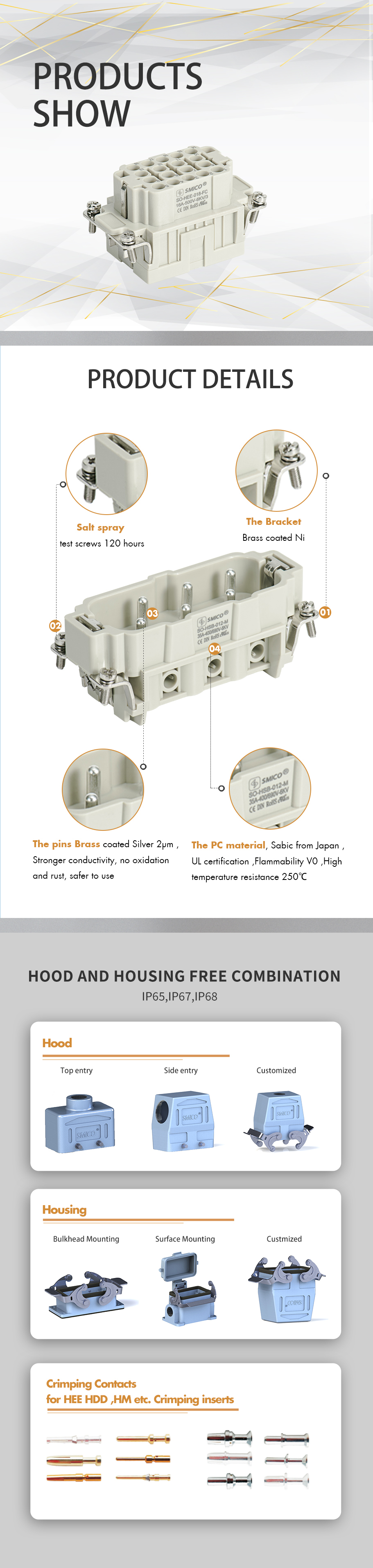

HEE 18pin Heavy Duty Rectangular Connector
HEE 18pin Heavy Duty Rectangular Connector are widely used in construction machinery, textile machinery, packaging and printing machinery, tobacco machinery etc.

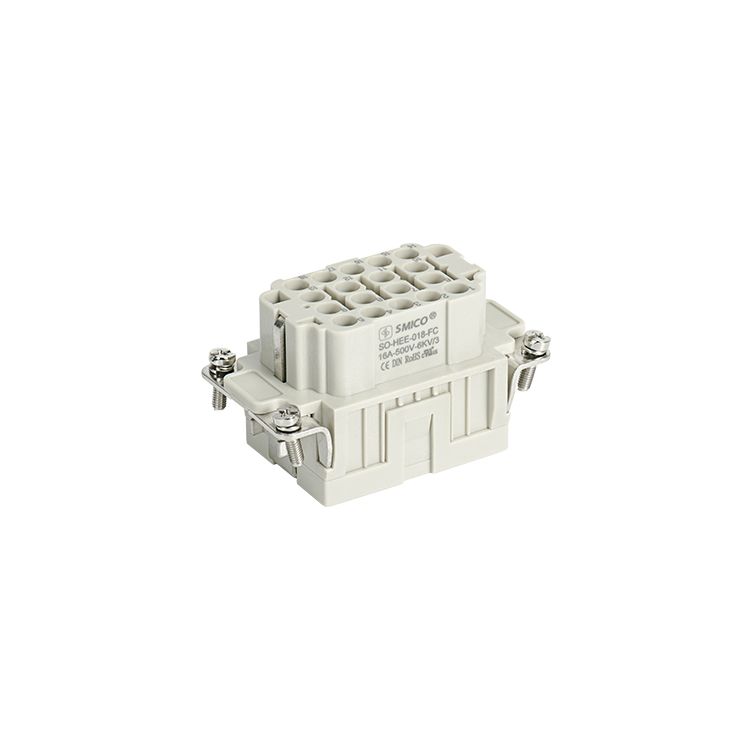

18 Poles+PE,16A,Crimping Female insert :
| Inserts | Suitable Shell:10BHood/Housing |
| Number of contacts | 18 |
| Electrical data acc. to EN 61 984 | |
| ---Rated current | 16A |
| ---Rated voltage conductor | 500V |
| ---Rated impulse voltage | 6kV |
| ---Pollution degree | 3 |
| ---Pollution degree 2 also | 16A 830V 8kV 2 |
| Rated voltage acc. to UL/CSA | 600V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-gold plated |
| hard-silver plated | |
| Contact resistance | ≤1mΩ |
| Crimp terminal | |
| ---Wrie gauge | 0.14-4.0mm2 |
| ---AWG | 26-12 |
| ---Stripping length | 7.5mm |
SMICO heavy duty connector can match the following interchangeable.
The hood and housing for H10B .
| Suppier | Plug insert | Socket insert |
| SMICO | SO-HEE-018-MC | SO-HEE-018-FC |
| H | 09320183001 | 09320183101 |
| ILME | ||
| TE | ||
| LAPP EPIC | 10.1824C0 | 10.1834C0 |
| PHOENIX | 1584716 | 1584729 |
| MOLEX | ||
| WEIDMULLER | HDC HEE 18 MC | HDC HEE 18 FC |
| WIELAND | 70.810.1056.0 | 70.800.1856.0 |
| AMPHENOL |
Advantage
SMICO heavy duty connector
-
Compatible with other brands
-
accept OEM /ODM
-
accept customized colour : like blue ,black
-
The popular parts in stock , delivery time fast
-
Export Packing : Packing for each items respectively or packing for full one set
Location
Heavy-duty connectors are specially designed and applied to meet the requirements of harsh environmental conditions.
The main application areas are industrial automation, equipment manufacturing and industrial system buildings, as well as information and control technology.
Such products are widely used in machinery, industrial systems and transmission equipment. With the in-depth development of industrial automation, more innovations have appeared in mechanical products. For example, many products have been modularized and expanded in accordance with the needs of the application. The use of heavy-duty aviation plug connectors including pneumatic modules and high-current modules not only realizes the barrier-free and fast connection between modular devices, but also ensures the transmission of signals and power supply.
Packaging
Videos
Downloads
| HEE 18pin Heavy Duty Rectangular Connector 09320183101 HEE-018-FC | Download |
FAQs
01.How many employees are there in your factory?
We have more than 130 employees, including the entire production chain.
02.Whether to provide technical documents?
Sure. If there is anything unclear about the product, we will provide you with as detailed technical documents as possible.
03.Does this insert can fit with my frame?
Our module insert can fit with Harting,ILME,Weidmuller,TE and other brand.
04.How to order?
Please email us your purchase order and we will send you a quotation and a proforma invoice.
