heavy duty connector molex 18 pins HEE series 09320183001 HEE-018-MC
- Number of contacts:
- 18 PIN
- Rated current:
- 16A
- Part:
- SO-HEE-018-MC
- Packaging Details:
- Standard Export Cartons
- Delivery Time:
- Within 7 Days
- Payment Terms:
- L/C, T/T, Western Union, Paypal
- Supply Ability:
- 100000 pcs per month
- Rated voltage conductor:
- 500V
- Product Certification:
- UL CUL CE ROHS DMT
- Order No.:
- 09320183001
Description

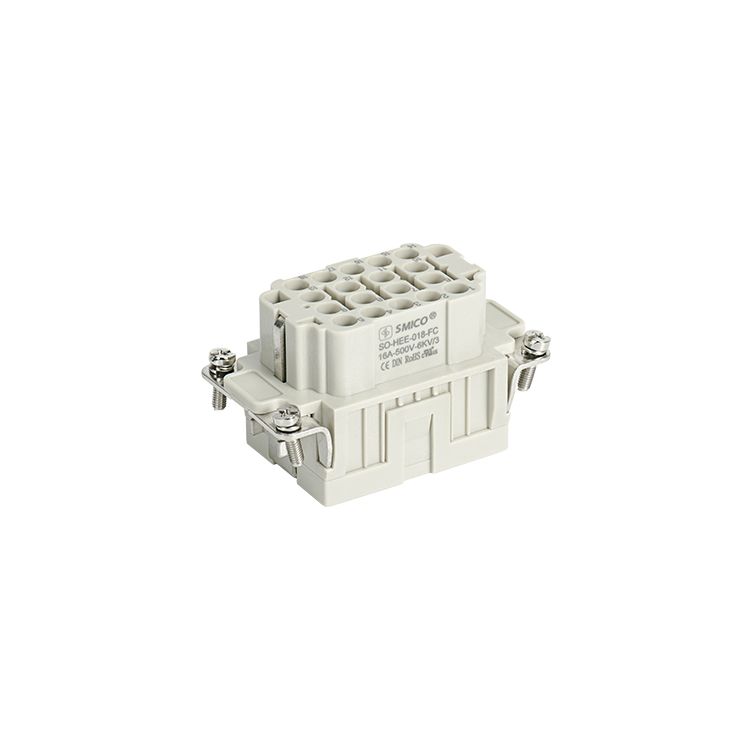

heavy duty connector molex 18 pins HEE series
heavy duty connector molex HEE series 18 pins ,crimping type . The goods we have in stock , usually 1-7 days can delivery and accept OEM ,ODM
18 Poles+PE,16A,Crimping male insert :
| Inserts | Suitable Shell:10BHood/Housing |
| Number of contacts | 18 |
| Electrical data acc. to EN 61 984 | |
| ---Rated current | 16A |
| ---Rated voltage conductor | 500V |
| ---Rated impulse voltage | 6kV |
| ---Pollution degree | 3 |
| ---Pollution degree 2 also | 16A 830V 8kV 2 |
| Rated voltage acc. to UL/CSA | 600V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-gold plated |
| hard-silver plated | |
| Contact resistance | ≤1mΩ |
| Crimp terminal | |
| ---Wrie gauge | 0.14-4.0mm2 |
| ---AWG | 26-12 |
| ---Stripping length | 7.5mm |
SMICO heavy duty connector can match the following interchangeable.
The hood and housing for H10B .
| Suppier | Plug insert | Socket insert |
| SMICO | SO-HEE-018-MC | SO-HEE-018-FC |
| H | 09320183001 | 09320183101 |
| ILME | ||
| TE | ||
| LAPP EPIC | 10.1824C0 | 10.1834C0 |
| PHOENIX | 1584716 | 1584729 |
| MOLEX | ||
| WEIDMULLER | HDC HEE 18 MC | HDC HEE 18 FC |
| WIELAND | 70.810.1056.0 | 70.800.1856.0 |
| AMPHENOL |
