Rectangular Heavy Duty Connectors replace HDD-024-FC 09160243101
- Number of contacts:
- 24 pins
- Rated current:
- 10A
- Part:
- SO-HDD-024-FC
- Packaging Details:
- Standard Export Cartons
- Delivery Time:
- Within 7 Days
- Payment Terms:
- L/C, T/T, Western Union, Paypal
- Supply Ability:
- 100000 pcs per month
- Rated voltage conductor:
- 250V
- Product Certification:
- UL CUL CE ROHS DMT
- Order No.:
- 09160243101
Description
For machinery and equipment manufacturers, it can save installation time, secure and reliable connections, and reduce overall production costs. For terminal users, they can freely install and operate equipment without any professional guidance. It also becomes easy to maintain. This not only increases the effectiveness and practicability of the mechanical equipment, but also reduces the parking time and the equipment maintenance time. The efficiency has been effectively improved. Meet the needs of customers.
Specification

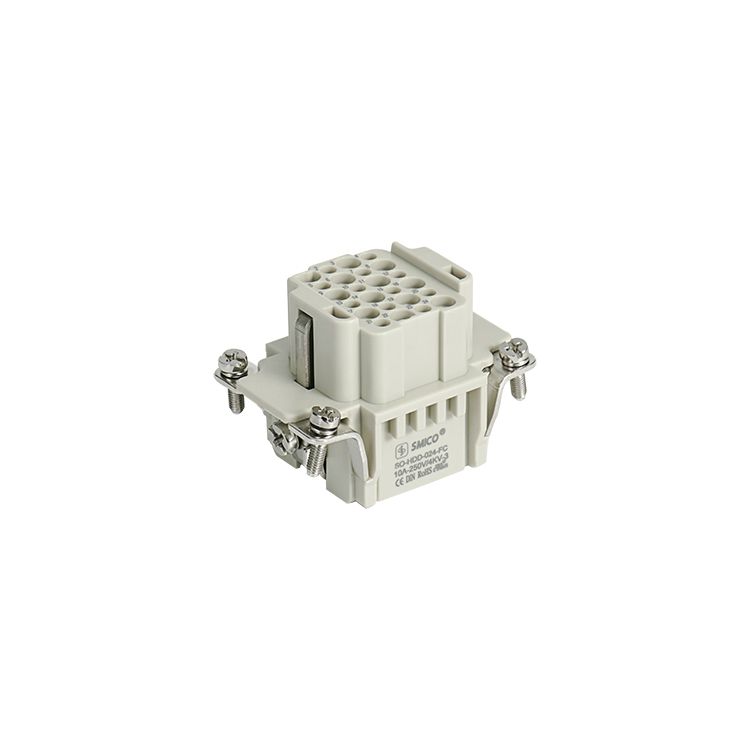

Rectangular Heavy Duty Connectors replace HE-024-1 HDD-024-FC
Rectangular Heavy Duty Connectors replace the Circular connector ， industrial plug socket , each to install and has 6,10,16,24,32 to 218 pins .
24 Poles + PE, 10 A Female Crimping Terminal :
| Inserts | Suitable Shell:6BHood/Housing |
| Number of contacts | 24 |
| Electrical data acc. to EN 61 984 | |
| ---Rated current | 10A |
| ---Rated voltage conductor | 250V |
| ---Rated impulse voltage | 4kV |
| ---Pollution degree | 3 |
| ---Pollution degree 2 also | 10A 230/400V 4kV 2 |
| Rated voltage acc. to UL/CSA | 600V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-gold plated |
| hard-silver plated | |
| Contact resistance | ≤3mΩ |
| Crimp terminal | |
| ---Wrie gauge | 0.14-2.5mm² |
| ---AWG | 26-14 |
Rectangular connectors, also known as heavy-duty sockets, are widely used in construction machinery, textile machinery, packaging and printing machinery, tobacco machinery, electric locomotives and petrochemical electrical equipment that require electrical and signal connections.
SMICO heavy duty connector can match the following interchangeable.
The hood and housing for H6B .
| Suppier | Plug insert | Socket insert |
| SMICO | SO-HDD-024-MC | SO-HDD-024-FC |
| H | 09160243001 | 09160243101 |
| ILME | CDDM 24 | CDDF 24 |
| TE | ||
| LAPP EPIC | 11.2850 | 11.2860 |
| PHOENIX | 1584033 | 1584046 |
| MOLEX | ||
| WEIDMULLER | HDC HDD 24 MC | HDC HDD 24 FC |
| WIELAND | 73.810.2453.0 | 73.800.2453.0 |
| AMPHENOL |
Advantage
SMICO heavy duty connector
-
Compatible with other brands
-
accept OEM /ODM
-
accept customized colour : like blue ,black
-
The popular parts in stock , delivery time fast
-
Export Packing : Packing for each items respectively or packing for full one set
