HDD-042-MC heavy duty connector supplier 09160423001
- Number of contacts:
- 42 pins
- Rated current:
- 10A
- Part:
- SO-HDD-042-MC
- Packaging Details:
- Standard Export Cartons
- Delivery Time:
- Within 7 Days
- Payment Terms:
- L/C, T/T, Western Union, Paypal
- Supply Ability:
- 100000 pcs per month
- Rated voltage conductor:
- 250V
- Product Certification:
- UL CUL CE ROHS DMT
- Order No.:
- 09160423001
Description

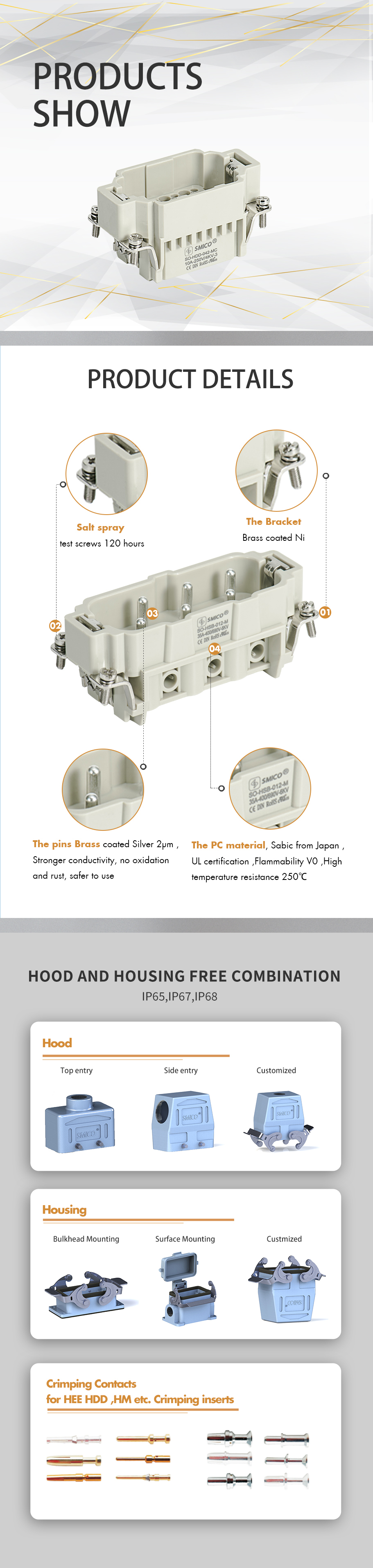

HDC HDD 42 MC heavy duty connector supplier
HDC HDD 42 MC heavy duty connector supplier SMICO that manufacturer for the heavy duty connectors , from 5A to 200A and 3pin to 218pin and more ,accept OEM ,ODM
42 Poles + PE, 10 A Male Crimping Terminal :
| Inserts | Suitable Shell:10BHood/Housing |
| Number of contacts | 42 |
| Electrical data acc. to EN 61 984 | |
| ---Rated current | 10A |
| ---Rated voltage conductor | 250V |
| ---Rated impulse voltage | 4kV |
| ---Pollution degree | 3 |
| ---Pollution degree 2 also | 10A 230/400V 4kV 2 |
| Rated voltage acc. to UL/CSA | 600V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-gold plated |
| hard-silver plated | |
| Contact resistance | ≤3mΩ |
| Crimp terminal | |
| ---Wrie gauge | 0.14-2.5mm² |
| ---AWG | 26-14 |
SMICO heavy duty connector can match the following interchangeable.
The hood and housing for H6B .
| Suppier | Plug insert | Socket insert |
| SMICO | SO-HDD-042-MC | SO-HDD-042-FC |
| H | 09160243001 | 09160423101 |
| ILME | CDDM 42 | CDDF 42 |
| TE | ||
| LAPP EPIC | 11.2851 | 11.2861 |
| PHOENIX | 1584059 | 1584062 |
| MOLEX | ||
| WEIDMULLER | HDC HDD 42 MC | HDC HDD 42 FC |
| WIELAND | 73.800.4253.0 | 73.810.4253.0 |
| AMPHENOL |
