Industrial connector 108 pins IP65 wire connector 09161083001 HDD-108-MC
- Number of contacts:
- 108 PINS
- Rated current:
- 10A
- Part:
- SO-HDD-108-MC
- Packaging Details:
- Standard Export Cartons
- Delivery Time:
- Within 7 Days
- Payment Terms:
- L/C, T/T, Western Union, Paypal
- Supply Ability:
- 100000 pcs per month
- Rated voltage conductor:
- 250V
- Product Certification:
- UL CUL CE ROHS DMT
- Order No.:
- 09161083001
Description
Specification
Industrial connector 108 pins IP65 wire connector
Industrial connectors used to connect the wire and protect the cable , used in most equipment and where need plug socket to connect the power ,Specializing in machinery, bid farewell to "Farewell"-SMICO releases new compact heavy-duty connectors.
108Poles + PE, 10 A Male Crimping Terminal :
| Inserts | Suitable Shell:24BHood/Housing |
| Number of contacts | 108 |
| Electrical data acc. to EN 61 984 | |
| ---Rated current | 10A |
| ---Rated voltage conductor | 250V |
| ---Rated impulse voltage | 4kV |
| ---Pollution degree | 3 |
| ---Pollution degree 2 also | 10A 230/400V 4kV 2 |
| Rated voltage acc. to UL/CSA | 600V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-gold plated |
| hard-silver plated | |
| Contact resistance | ≤3mΩ |
| Crimp terminal | |
| ---Wrie gauge | 0.14-2.5mm² |
| ---AWG | 26-14 |
SMICO heavy duty connector can match the following interchangeable.
The hood and housing for H24B .
| Suppier | Plug insert | Socket insert |
| SMICO | SO-HDD-108-MC | SO-HDD-108-FC |
| H | 09161083001 | 09161083101 |
| ILME | CDDM 108 | CDDF 108 |
| TE | ||
| LAPP EPIC | 11.2853 | 11.2863 |
| PHOENIX | 1584114 | 1584130 |
| MOLEX | ||
| WEIDMULLER | HDC HDD 108 MC | HDC HDD 108 FC |
| WIELAND | 73.810.0853.0 | 73.800.0853.0 |
| AMPHENOL |
heavy-duty connectors, which originated from the custom-developed train carriage connection requirements in the 1950s, have been widely used in industry due to their high reliability and ruggedness. But today, the application environment of heavy-duty connectors has changed. In the connection scenarios of most mechanical equipment, the design of traditional heavy-duty connectors has been too wasteful.
Advantage

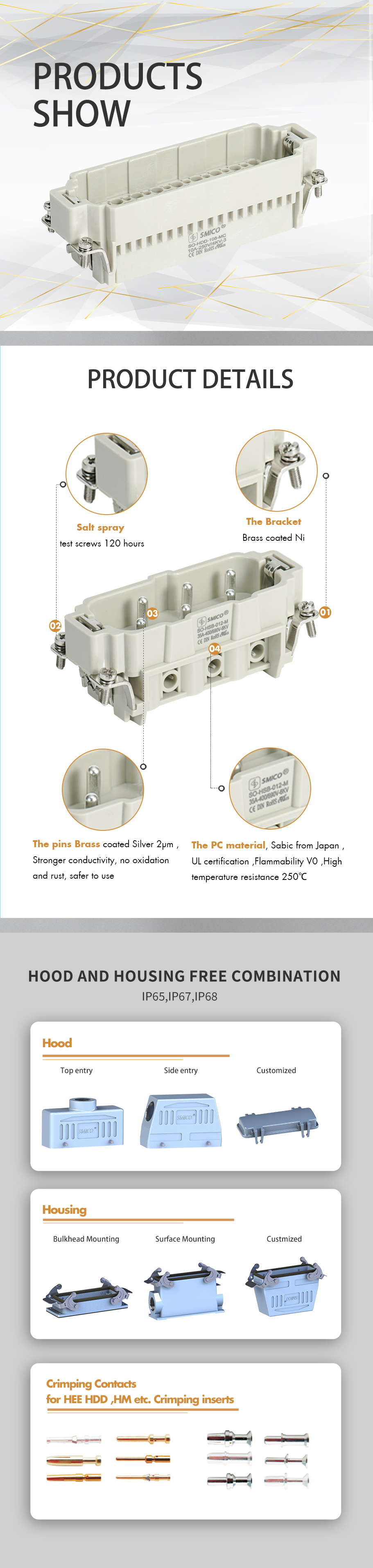

SMICO heavy duty connector
-
Compatible with other brands
-
accept OEM /ODM
-
accept customized colour : like blue ,black
-
The popular parts in stock , delivery time fast
-
Export Packing : Packing for each items respectively or packing for full one set
Location
- Machinery
- Automation
- Robotics
- Rail
- Energy Distribution
- Renewable Energy
- Construction Machinery
- Professional Light and Sound
Packaging
Videos
Downloads
| Industrial connector 108 pins IP65 wire connector 09161083001 HDD-108-MC | Download |
FAQs
01.How many employees are there in your factory?
We have more than 130 employees, including the entire production chain.
02.Whether to provide technical documents?
Sure. If there is anything unclear about the product, we will provide you with as detailed technical documents as possible.
03.Does this insert can fit with my frame?
Our module insert can fit with Harting,ILME,Weidmuller,TE and other brand.
04.How to order?
Please email us your purchase order and we will send you a quotation and a proforma invoice.
