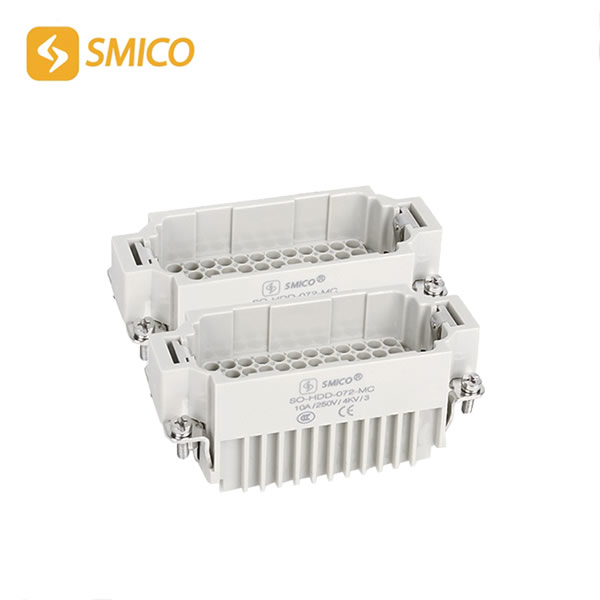

Heavy duty connector 144 pins rectangular type
- Number of contacts:
- 144 PINS
- Rated current:
- 10A
- Part:
- SO-HDD-144-MC
- Packaging Details:
- Standard Export Cartons
- Delivery Time:
- Within 7 Days
- Payment Terms:
- L/C, T/T, Western Union, Paypal
- Supply Ability:
- 100000 pcs per month
- Rated voltage conductor:
- 250V
- Product Certification:
- UL CUL CE ROHS DMT
Heavy duty connector 144 pins rectangular type
144Poles + PE, 10 A Male Crimping Terminal :
| Inserts | Suitable Shell:32BHood/Housing |
| Number of contacts | 144 |
| Electrical data acc. to EN 61 984 | |
| ---Rated current | 10A |
| ---Rated voltage conductor | 250V |
| ---Rated impulse voltage | 4kV |
| ---Pollution degree | 3 |
| ---Pollution degree 2 also | 10A 230/400V 4kV 2 |
| ---Rated voltage acc. to UL/CSA | 600V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-gold plated |
| hard-silver plated | |
| Contact resistance | ≤3mΩ |
| Crimp terminal | |
| ---Wrie gauge | 0.14-2.5mm² |
| ---AWG | 26-14 |
SMICO heavy duty connector can match the following interchangeable.
The hood and housing for H16B .
| Suppier | Plug insert | Socket insert |
| SMICO | SO-HDD-144-MC | SO-HDD-144-FC |
| H | 09160723001 09160723011 | 09160723101 09160723111 |
| ILME | CDDM 72 CDDM 72 N | CDDF 72 CDDF 72 N |
| TE | ||
| LAPP EPIC | 11.2852 11.2854 | 11.2862 11.2864 |
| PHOENIX | 1584075 1584088 | 1584091 1584101 |
| MOLEX | ||
| WEIDMULLER | HDC HDD 72 MC HDC HDD 72 MC 73-144 | HDC HDD 72 FC HDC HDD 72 FC 73-144 |
| WIELAND | 73.810.4253.0 | 73.800.7253.0 |
| AMPHENOL |
