Optical fiber ADSS dead end clamp

Optical fiber ADSS dead end clamp

Description of anchor clamp wedge type

Optical fiber ADSS dead end clamp for fiber optical cable service line.The tension clamp for opgw is designed to anchor insulated service lines with 2 or 4 conductors to the pole or wall. The tension clamp for opgw and ADSS is composed of a body, wedges and removable and adjustable bail or pad. One core wire anchor electrical clamp are design to supporting the neutral messenger,the wedge can be self-adjusting. Pilot wires or street lighting conductor are led alongside the anchoring clamp for optical fiber cables.The self opening is featured by an integrate spring facilities for easily insert the conductor into the clamp. Standard: NFC 33-042.

Material of dead end clamp for ab cable

The clamp body, the main mechanical component is manufactured in heavy duty weatherproof synthetic material.The wedge, made from synthetic material exerts necessary mechanical pressure in retaining the cable in the body of the clamp.The pull hook is made from anti corrosion rod.For anchoring isolated coaxial and unipolar cables.

Feature of tension clamp

1.Simple and fast installation requiring no tools.

2.Suits to all field configurations.

3.Possible to mount on pole line hardware with open or closed eye.

4.Mechanical traction resistant.

5.Supports industrial duty tension.

6.Corrosion resistant.

7.Weatherproof.

For the correct installing cable dead end clamp, the following steps are recommended:

• Loosen the mooring hook from the anchor clamp.
• Place the hook en the place to be mooring point or support, fixing it inside the body of the clamp
• Remove the wedge from its base and then place the cable within the clamp.
• Replace the wedge to its corresponding position and proceed to tense the cable taut.

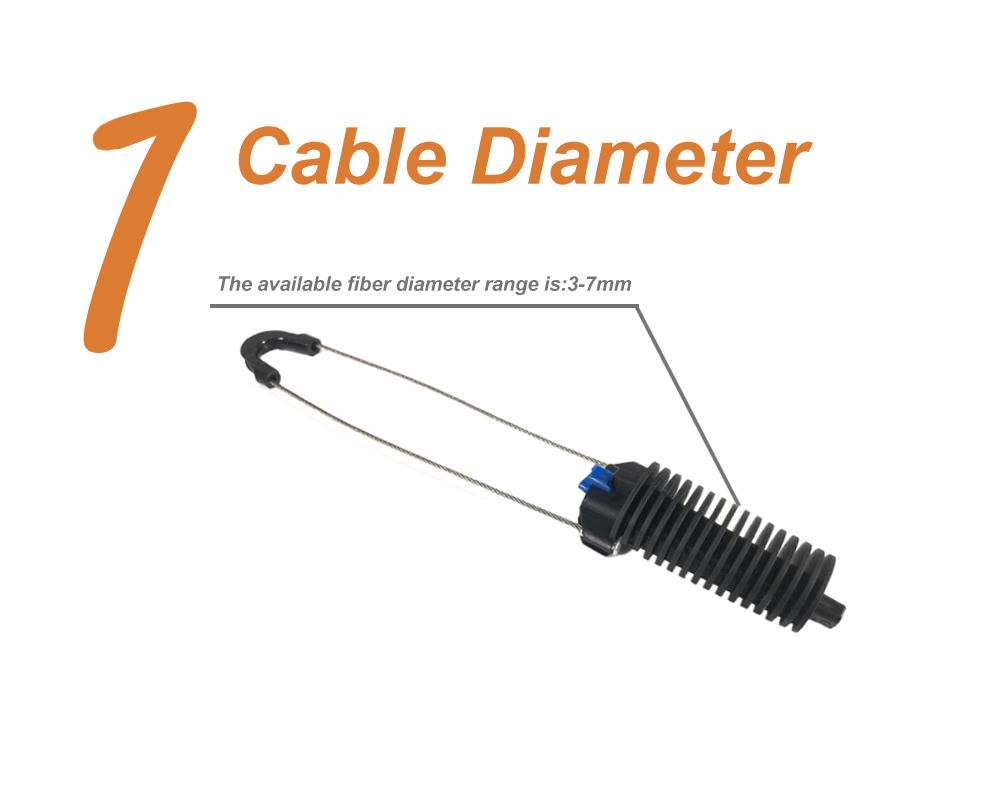

Cable Diameter

The available fiber diameter range is 3-7mm

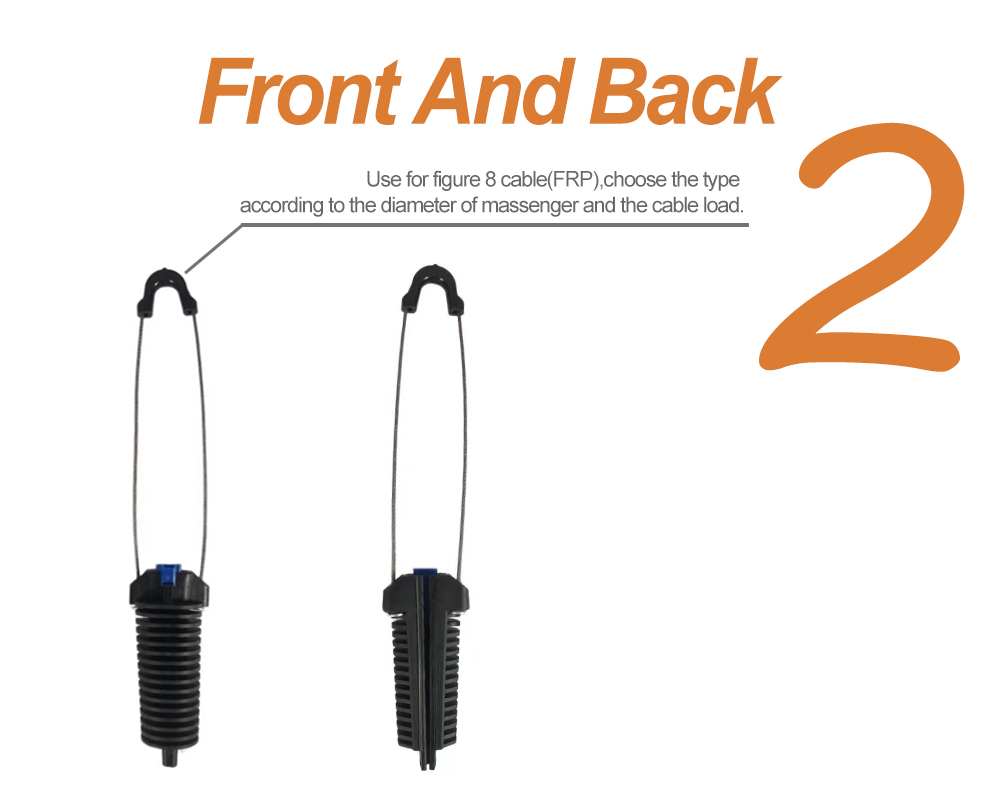

Optical fiber ADSS dead end clamp Front and Back

Use for figure 8 cable(FRP),choose the type according to the diameter of messenger and the cable load

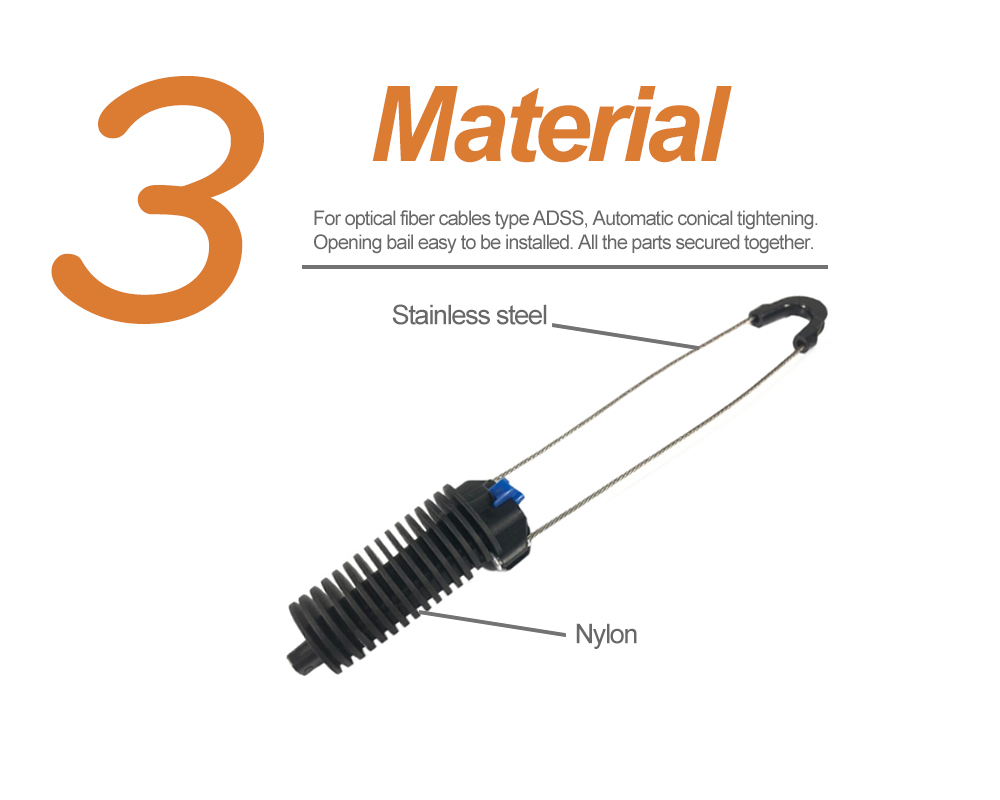

Optical fiber ADSS dead end clamp material

For optical fiber cables type ADSS,Automatic conical tightening. Opening bail easy to be installed. All the parts secured together.
