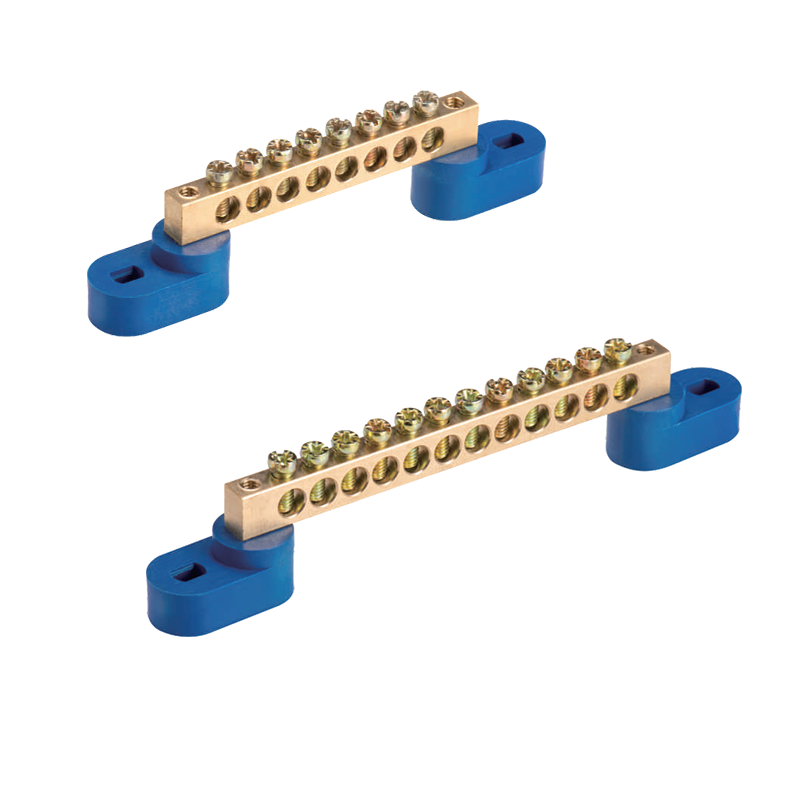

Copper Terminal block

Copper Terminal Blocks T002 SeriesBest Quality Connector4P/6P/8P/10P/12P/14P/16P/18P for Distribution Box

Model Number:
Terminal block T002
Conductor Range:
63.5mm-178mm
Standard:
IEC 60947-7-1
Bolt:
Zinc Coated Steel
Voltage:
500V
Tightening Torque:
2-3NM
Operating Temperature:
-40~+85℃
Color:
Gray-Blue
Packaging Details:
Carton
Certification:
CE

Terminal block

Material PA66
Grade of flame retardant VO
Metal Meterial Brass nickel plated



Features

Screw Barrier Terminal Block.

Each of terminals is insulated from the next, prevent circuit in disorder.

The set screws secure wires reliable contact and help prevent accidental contact with the terminals.

Used for wires connecting of home appliances, electronic circuits, machines, etc.

With Blue Neutral and Green PE type



Catalog Number

T002

Copper Terminal Blocks T002 SeriesBest Quality Connector4P/6P/8P/10P/12P/14P/16P/18P for Distribution Box

Certifications

        Copper Terminal Blocks T002 SeriesBest Quality Connector4P/6P/8P/10P/12P/14P/16P/18P for Distribution Box

Material

Ways 4/6/8/10/12/14/16/18
Spec 6X9/8X12
Screws M4 M5
Diameter 5.2/6.0
Housing PA66/V-0
Cover PC
Conductor Tin-Coated Brass

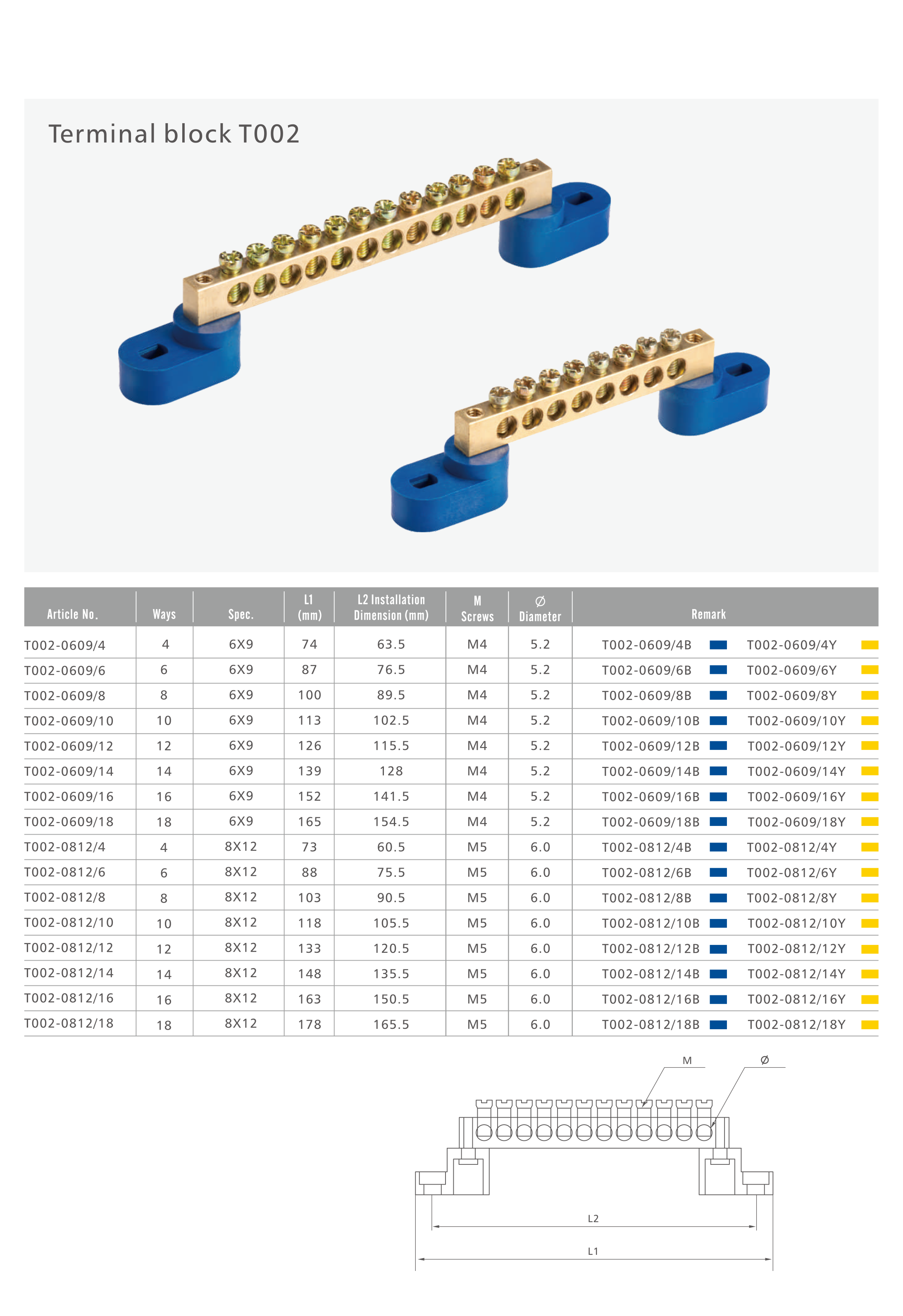

Ways Conductor T002 L1(mm) L2(mm) spec Screws Diameter
4 0609/4   0812/4       74/73 63.5/60.5 6X9/8X12 M4/M5 5.2/6.0
6 0609/6   0812/6 87/88 76.5/75.5 6X9/8X12 M4/M5 5.2/6.0
8 0609/8   0812/8 100/103 89.5/90.5 6X9/8X12 M4/M5 5.2/6.0
10 0609/10  0812/10 113/118 102.5/105.5 6X9/8X12 M4/M5 5.2/6.0
12 0609/12  0812/12 126/133 115.5/120.5 6X9/8X12 M4/M5 5.2/6.0
14 0609/14  0812/14 139/148 128/135.5 6X9/8X12 M4/M5 5.2/6.0
16 0609/16  0812/16 152/163 141.5/150.5 6X9/8X12 M4/M5 5.2/6.0
18 0609/18  0812/18 165/178 154.5/165.5 6X9/8X12 M4/M5 5.2/6.0







Electrical Date

Standards IEC 60947-7-1
Voltage(V) 500
Current(A) 125
Icw(KA) 4.5
Ipk(KA) 20





Diagrams



Copper Terminal Blocks T002 SeriesBest Quality Connector4P/6P/8P/10P/12P/14P/16P/18P for Distribution Box
