Screw Din Rail Terminal Block Power Distribution T001
- Conductor Range:
- 58.5mm-165.5mm
- Standard:
- IEC 60947-7-1
- Bolt:
- Zinc Coated Steel
- Voltage:
- 500V
- Tightening Torque:
- 2-3NM
- Operating Temperature:
- -40～+85℃
- Color:
- Gray-Blue
- Packaging Details:
- Carton
- Certification:
- CE
Description
Terminal block
| Material | PA66 |
| Grade of flame retardant | VO |
| Metal Meterial | Brass nickel plated |
Catalog Number
T001
Certifications
Specification
Material
| Spec | 6X9/8X12 |
| Screws | M4 M5 |
| Diameter | 5.2/6.0 |
| Housing | PA66/V-0 |
| Cover | PC |
| Conductor | Tin-Coated Brass |

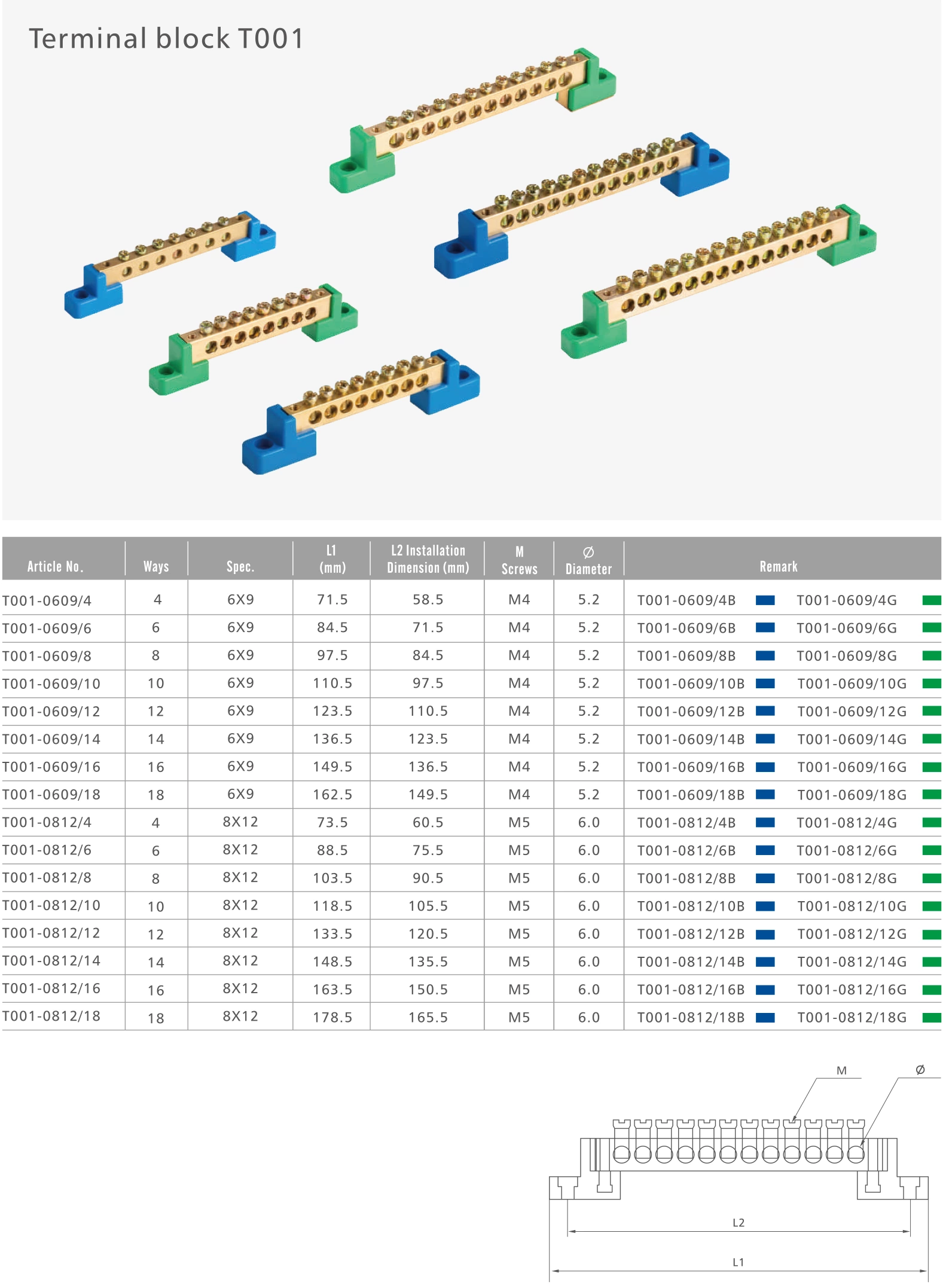

| Ways | Conductor | L1(mm) | L2(mm) | spec | Screws | Diameter |
| 4 | 0609/4 0812/4 | 71.5/73.5 | 58.5/60.5 | 6X9/8X12 | M4/M5 | 5.2/6.0 |
| 6 | 0609/6 0812/6 | 84.5/88.5 | 71.5/75.5 | 6X9/8X12 | M4/M5 | 5.2/6.0 |
| 8 | 0609/8 0812/8 | 97.5/103.5 | 84.5/90.5 | 6X9/8X12 | M4/M5 | 5.2/6.0 |
| 10 | 0609/10 0812/10 | 110.5/118.5 | 97.5/105.5 | 6X9/8X12 | M4/M5 | 5.2/6.0 |
| 12 | 0609/12 0812/12 | 123.5/133.5 | 110.5/120.5 | 6X9/8X12 | M4/M5 | 5.2/6.0 |
| 14 | 0609/14 0812/14 | 136.5/148.5 | 123.5/135.5 | 6X9/8X12 | M4/M5 | 5.2/6.0 |
| 16 | 0609/16 0812/16 | 149.5/163.5 | 136.5/150.5 | 6X9/8X12 | M4/M5 | 5.2/6.0 |
| 18 | 0609/18 0812/18 | 162.5/178.5 | 149.5/165.5 | 6X9/8X12 | M4/M5 | 5.2/6.0 |
Electrical Date
| Standards | IEC 60947-7-1 |
| Voltage(V) | 500 |
| Current(A) | 125 |
| Icw(KA) | 4.5 |
| Ipk(KA) | 20 |
Diagrams
Advantage
Screw Barrier Terminal Block.
Each of terminals is insulated from the next, prevent circuit in disorder.
The set screws secure wires reliable contact and help prevent accidental contact with the terminals.
Used for wires connecting of home appliances, electronic circuits, machines, etc.

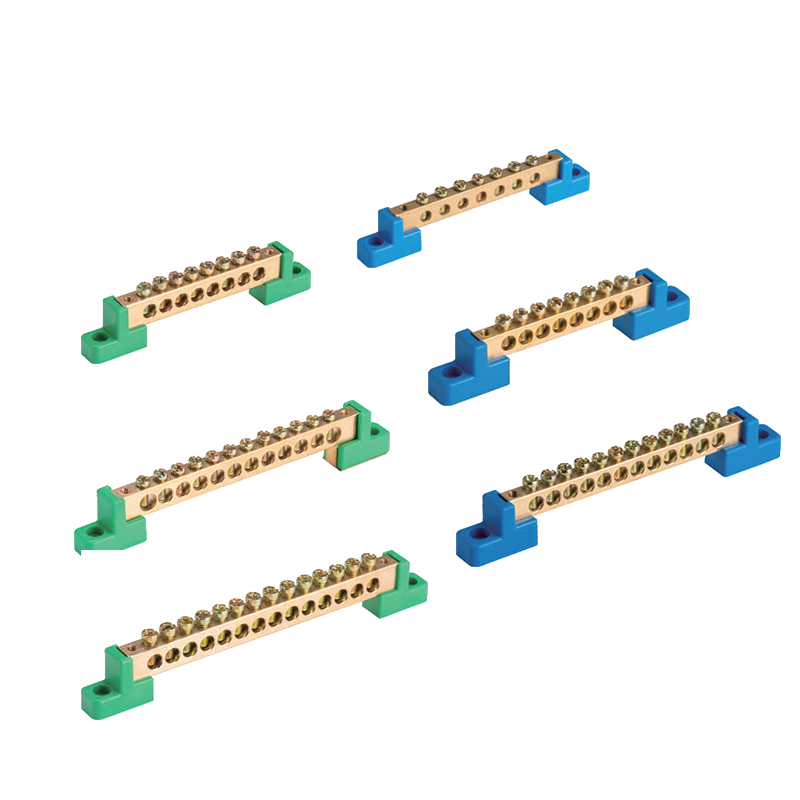

With Blue Neutral and Green PE type
