SB Copper Brass Split Bolt Clamp Copper Alloy Line Tap Bolted Connector

Enquiry
SB Copper Brass Split Bolt Clamp Copper Alloy Line Tap Bolted Connector
SB Copper Brass Split Bolt Clamp Copper Alloy Line Tap Bolted Connector

SB Copper Brass Split Bolt Clamp Copper Alloy Line Tap Bolted Connector

Material:Brass
Surface treatment:Tin plated or copper plated on request
Product Property:It is used to branch or connect a erial hard copper conductor or insulated copper conductor.

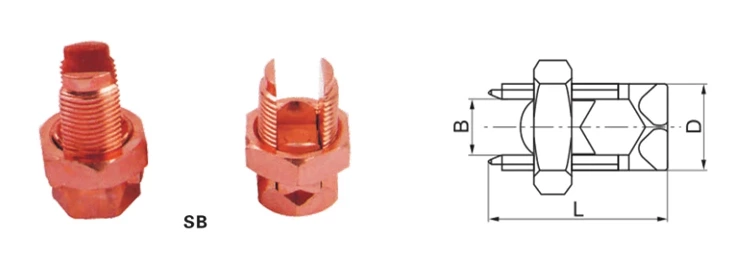

Type Dimensions(mm)
L D B Screw Thread
SB 16-35 38 17 8.5 5/8-18UNF-2A
SB 25-50 42 19 10 3/4-16UNF-2A
SB 50-70 46 21 11 3/4-16UNF-2A
SB 95-120 50 26 14.5 1-12UNF-2A
SB 150-185 60 30 17.2 1 3/16-12UNF-2A
SB 200-240 45 32 19.3 1 1/4-12UNF-2A
SB 10 27 13 5 1/220UNF-2A
SB 16 30 14 6 G1/4
SB 25 32 17 7 5/8-18UNF-2A
SB 35 38 17 8.5 5/8-18UNF-2A
SB 50 42 19 10 3/4-16UNF-2A
SB 70 46 21 11 3/4-16UNF-2A
SB 95 46 26 14.5 1-12UNF-2A
SB 120 50 26 16.5 1-12UNF-2A
SB 150 55 30 17.2 1 3/16-12UNF-2A
SB 185 60 30 19.3 1 3/16-12UNF-2A
SB 240 65 32   1 1/4-12UNF-2A
