Description

Material:Aluminum alloy
Surface treatment:Tin plated mini 15 microns

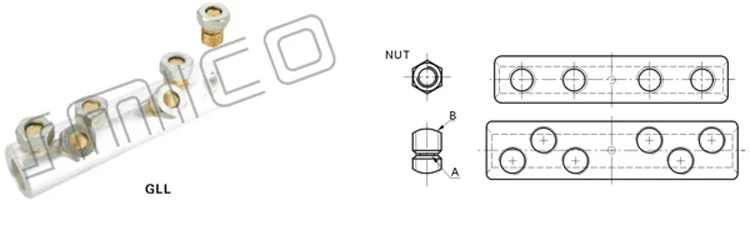

Product property:The bolt has two shear ends A and B(Note:A is shorter than B).the special design ensures perfect strength and electric conductors when installing you can choose the suitable end to screw and tighten it until it breaks the usage is easy and quick and its type test is in accordance with IEC61238-1
Specification
| Type | Conducot cross-section(mm2) | shear head A or B | Number of bokts |
| GLL16-70 | 16-35 50-70 |
B A |
4 |
| GLL95-150 | 95-120 150 |
B A |
4 |
| GLL185-240 | 185 240 |
B A |
6 |
Advantage
- will not happen corrosion,compare to aluminium connector.
- use for termination.
- the friction welding is well done.
- its barrel capped is fulled with joint compound to avoid oxidization.
- the type test is follow IEC61238-1
- Material:E-Cu,Al-99.6% Surface treatment:Bright
