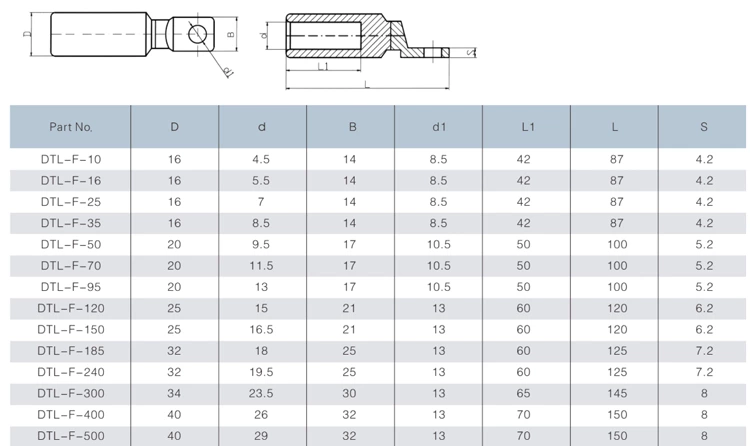

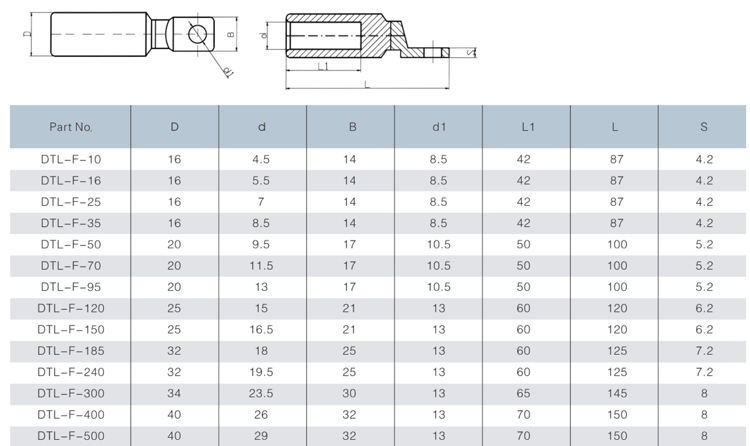

DTL-F Square Narrow Plate Bi-metal Lug

Bi-metal Lug (Square Narrow Plate)

DTL-F Bi-metal Lug are made from the highest quality aluminium and copper, joined using a friction welding process. The barrels are filled with a jointing compound, which breaks the oxide layers on the aluminium.

1. will not  happen corrosion,compare to aluminium connector.
2. use for termination.
3. the friction welding is well done.
4. its barrel capped is fulled with joint compound to avoid oxidization.
5. the type test is follow IEC61238-1
6. Material:E-Cu,Al-99.6%  Surface treatment:Bright

01. Manufacturer Offering Competitive Pricing and High Quality.

We are a direct-sales manufacturer offering both competitive pricing and high-quality products, helping you gain a foothold in the market—specifically in Wenzhou, Zhejiang Province, China. You are warmly invited to visit our company.

02. OEM/ODM Services.

We are a manufacturer backed by an exceptional and highly collaborative team.

03. Standard Payment Terms.

We accept various payment methods, including Telegraphic Transfer (TT) in advance, Letters of Credit (L/C), Western Union, and others. Please feel free to contact us if you have any questions!

04. Warranty Period.

1.5 years. Any quality issues will be resolved through free replacements included with your next order.

05. Free Samples.

Yes, we provide samples of smaller products for your quality assessment; you are only required to cover the courier fees.
