Junction boxes with sealed bars

POLYMERIC BOX
The box is made of Polycarbonate with anti-UV and FR (flame retardant) additives. Ease of installation, does not require terminals. The seals are made of rubber with additives for outdoor use. All our models comply with electrical, mechanical, airtightness, UV, flame retardant tests, etc.

TECHNICAL CHARACTERISTICS OF THE CONDUCTOR BAR
The bar is made of copper alloy with a capacity of up to 200A, it allows the installation of connections of up to 16m2 of copper. Upon request, it prepares for larger sections. This system prevents accidental short circuits, guarantees the tightness of the connections, Cu or Al conductors can be used.

TECHNICAL CHARACTERISTICS
OF THE INSULATOR
mechanical properties
High Impact Strength ASTM D 4812. Tensile Strength ASTM D 638. Flexural Strength ASTM D790 Electrical Properties
Dielectric strength 14.9 Kv/mm ASTM D 149.

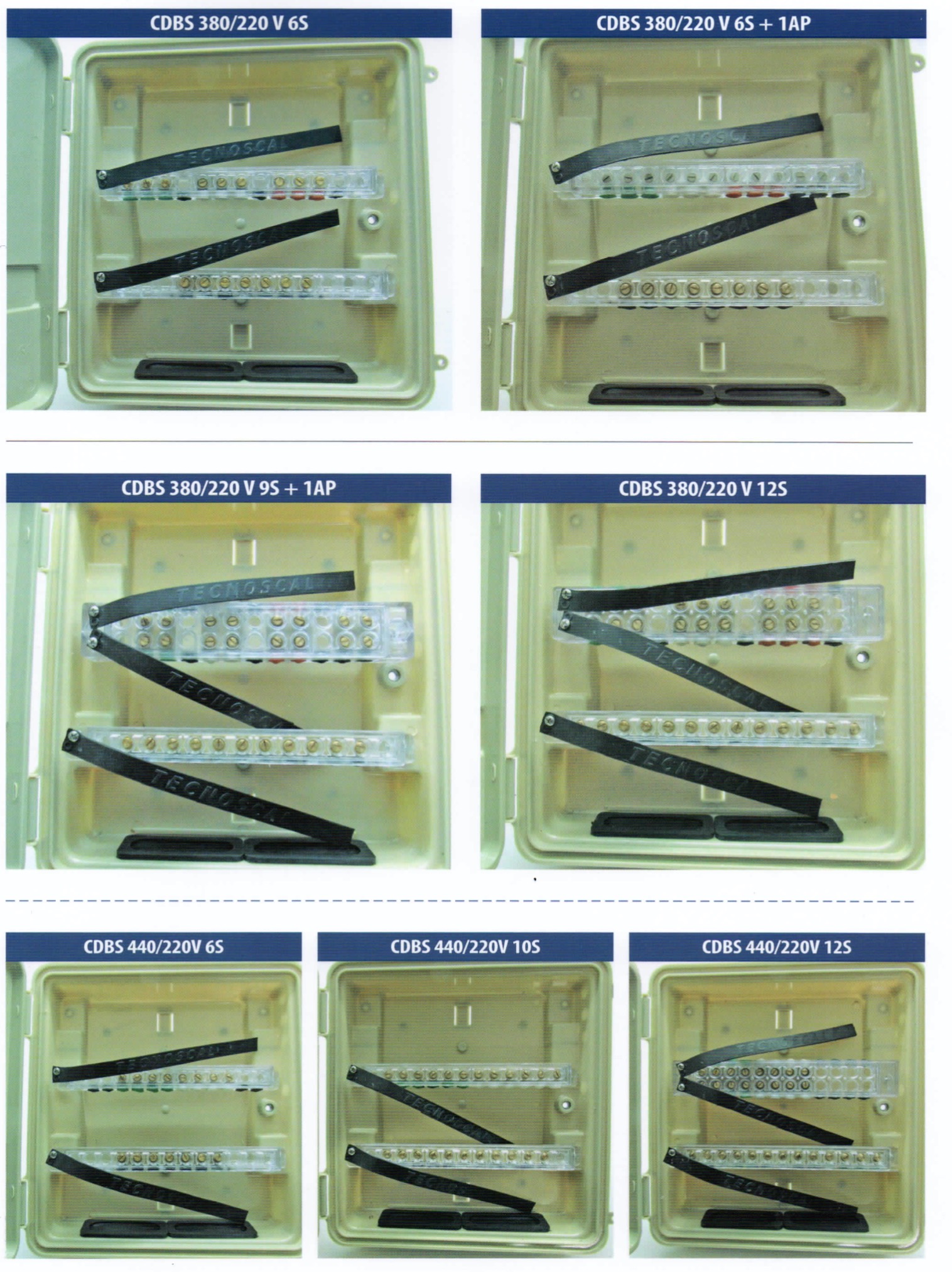

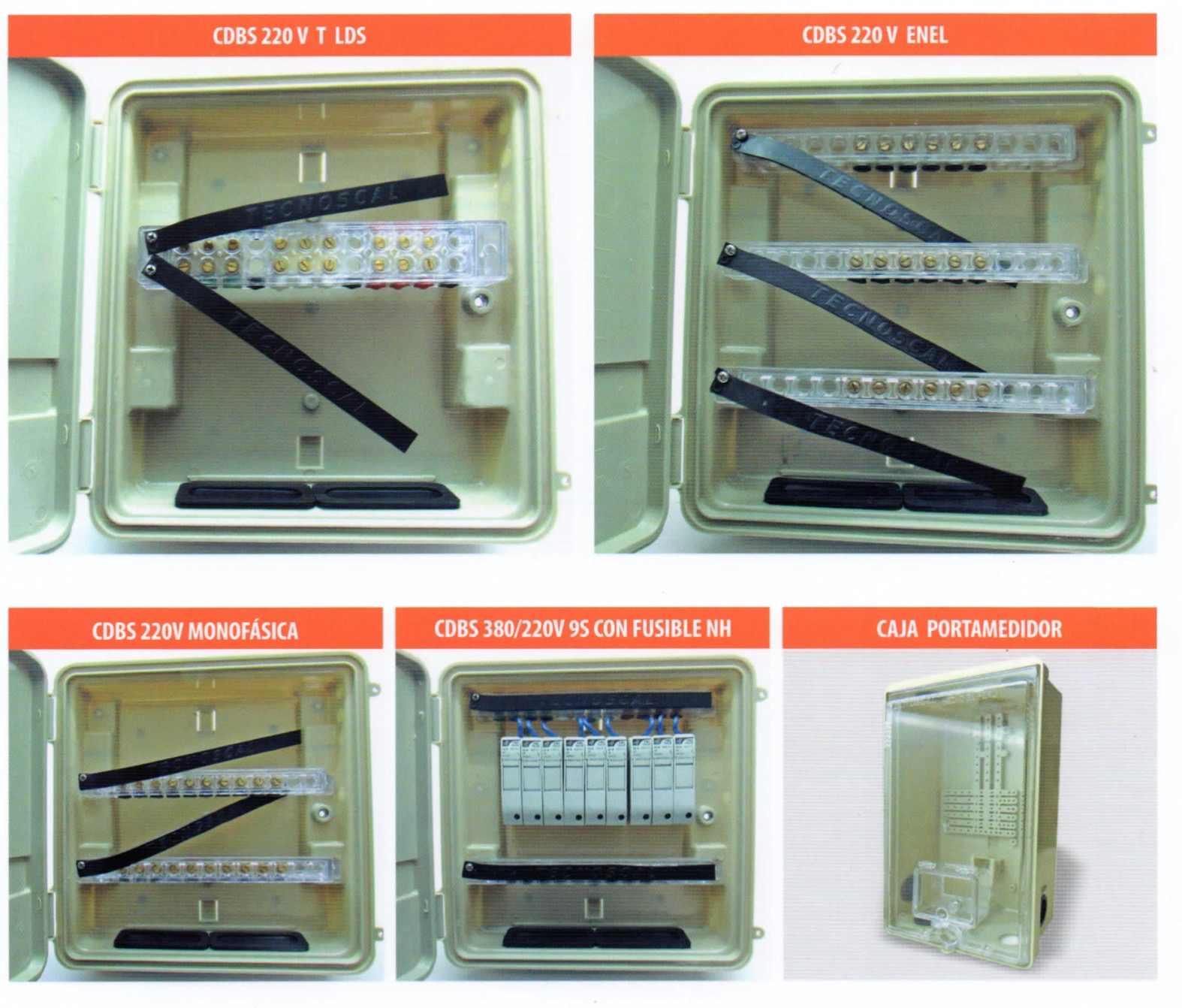

Busbars and derivation modules
Monopolar BDCS are installed on the cable, close to the pole. They have 01 power supply point for the phase and 4 derivation points, in addition to 3 points (electrically isolated from the first) for the cut.

Product Features:

• Color: RAL 7035
• Hinged door design for easy maintenance
• IP66 waterproof and dustproof
• IK09 impact resistance
• Flame retardant: 650℃ (30s)

Environmental conditions:

• Indoor/outdoor installation
• Temperature: -5°C to +40°C
• Humidity: adapt to different humidity environments

Performance parameters:

• Rated voltage: 400V
• Rated current: 75A
• Comply with standards: EN 60670-1, DIN EN 60670-24

Material properties:

• ABS shell/PC door
• Flame retardant, temperature resistant: -25°C to +80°C
• Halogen-free, silicon-free

• Metallurgy, steel, nuclear power plants
• Tunnels, subways, charging piles
• Photovoltaic systems and other electrical connection environments that require waterproofing and dustproofing
