Description

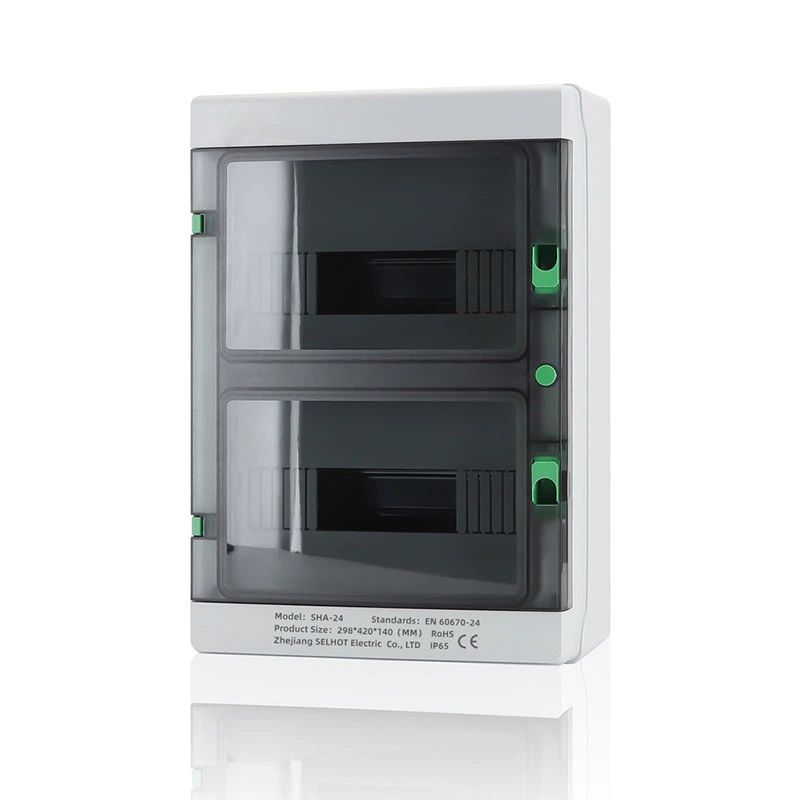

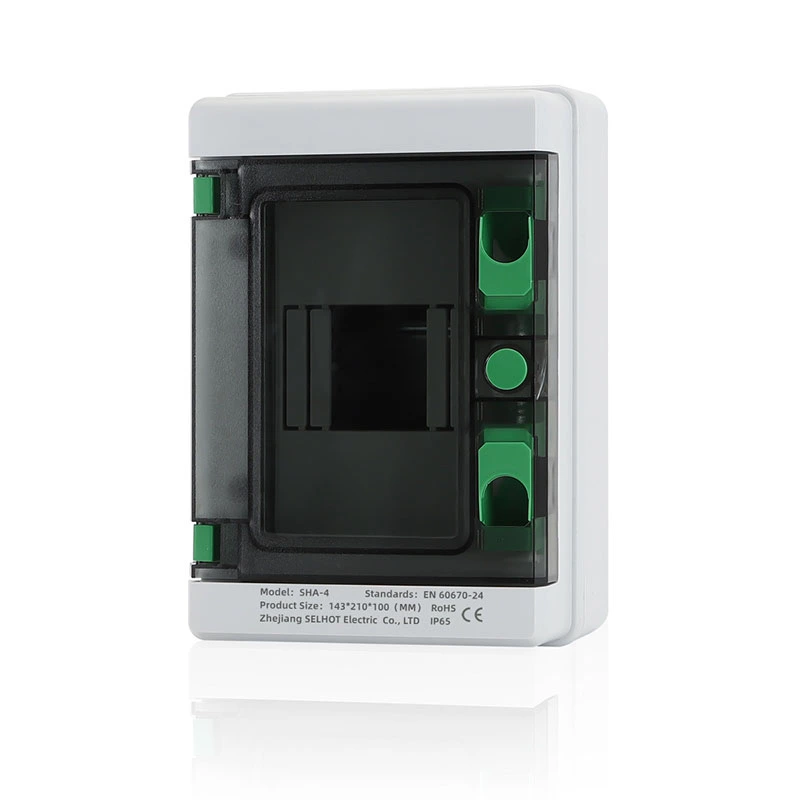

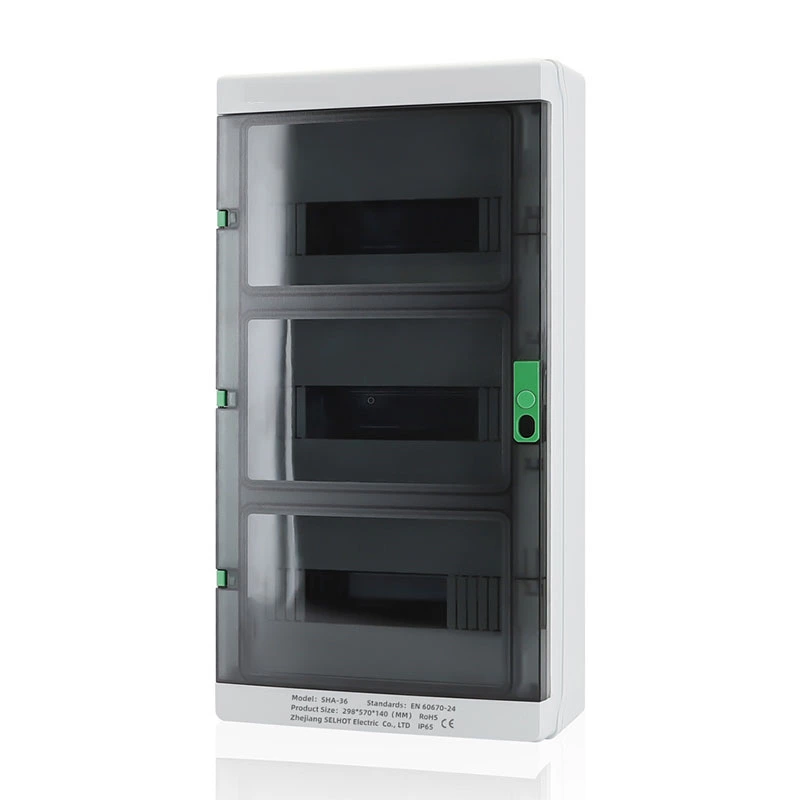

SMICO's IP65 protection rating is one of the common protection rating standards for outdoor plastic distribution boxes. IP represents the international protection level (Ingress Protection), 65 means dustproof level 6 and waterproof level 5. This grade of distribution box is highly waterproof and can be used in outdoor environments, effectively preventing dust and water from entering.
Mechanical properties:
Cover type: with cover
Transparent cover: yes
Number of modules: 4-36 channels
Number of lines: 1-3 lines
Protection level: IP65 (dustproof and waterproof), IK09 (resistance to mechanical impact)
Environmental conditions:
Application areas: indoor/outdoor
Maximum temperature in 24 hours: 35℃
Working temperature: -5℃ to +40℃
Relative humidity: ≤50% at 40°C, ≤100% at 25°C
Electrical characteristics:
Rated voltage: Un=400V
Rated insulation voltage: Ui=690V
Protection level: Level II
Rated current (terminal): In=75A
Comply with standards: EN 60670-1, DIN EN 60670-24
Material properties:
Material: ABS shell/PC door
Glow wire test: IEC 60695-2-11, 650°C
Temperature resistance: -25°C to +80°C
Halogen-free, silicon-free

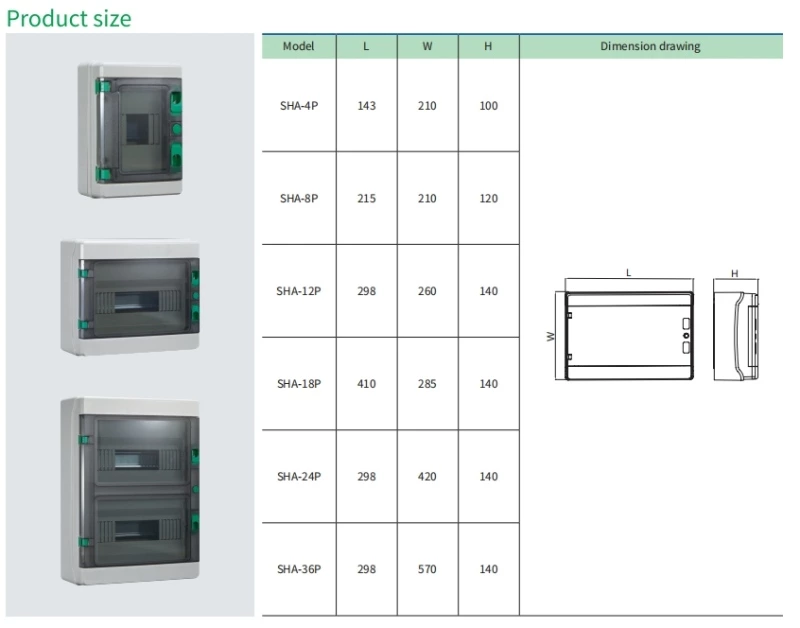

Specification
Advantage
Small size, easy to install
Fixed location, unique configuration
Not limited by site, widely used
Stable and reliable operation, high space utilization
Small footprint and good environmental protection effect
Location
- Metallurgy, steel, nuclear power plants
- Tunnels, subways, charging piles
- Photovoltaic systems and other electrical connection environments that require waterproofing and dustproofing
