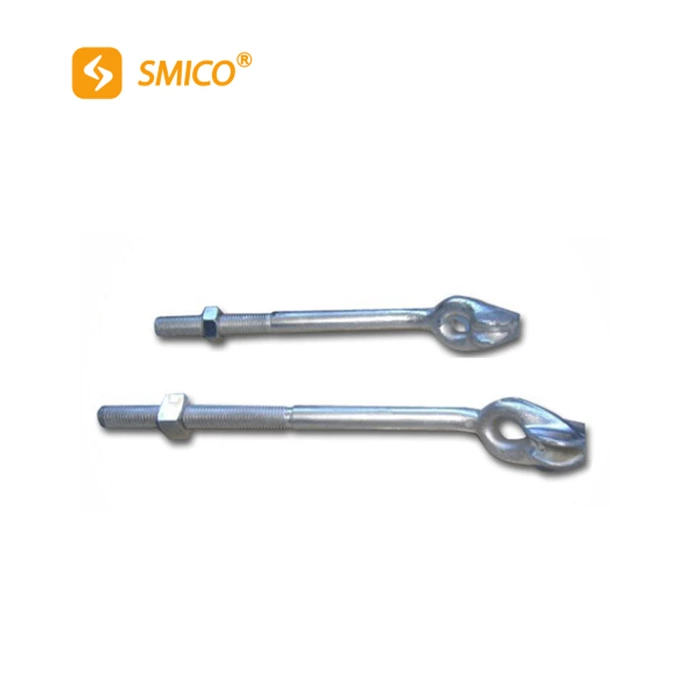

Against rust and corrosion thimble eye bolt for electric and communication lines fittings
- Model Number:
- Thimble eye bolt
- Standard:
- ISO 1461 ISO 9001
- Supply Ability:
- 200000/Month
Description
SMICO's ball clevis is a common fitting in electric and communication lines. This is because both the infrastructures have poles. The good thing about this line fitting is it can work on both wooden and concrete poles.
Specification

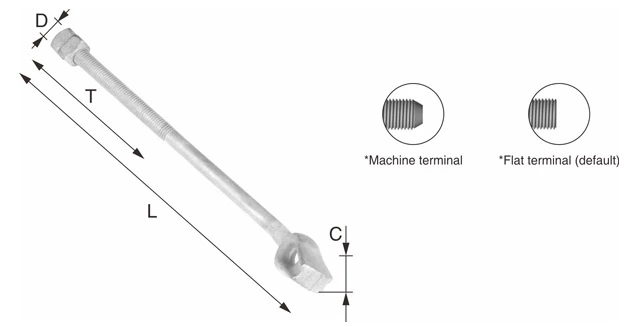

| Modle | Dimensions in inches and millimeters（mm） | |||
| C | D | L | T | |
| SMB01 | 3″(76) | 5/8″(16) | 8″(200) | 4″(100) |
| SMB02 | 3″(76) | 5/8″(16) | 10″(250) | 4″(100) |
| SMB03 | 3″(76) | 5/8″(16) | 12″(300) | 6″(150) |
| SMB04 | 3″(76) | 5/8″(16) | 14″(350) | 6″(150) |
| SMB05 | 3″(76) | 5/8″(16) | 16″(400) | 6″(150) |
| SMB06 | 3 9/16″(90) | 3/4″(20) | 10″(250) | 4″(100) |
| SMB07 | 3 9/16″(90) | 3/4″(20) | 12″(300) | 6″(150) |
| SMB08 | 3 9/16″(90) | 3/4″(20) | 14″(350) | 6″(150) |
| SMB09 | 3 9/16″(90) | 3/4″(20) | 16″(400) | 6″(150) |
| SMB10 | 3 9/16″(90) | 3/4″(20) | 18″(450) | 6″(150) |
Advantage
When it comes to the thimble eye bolt design, it can be described as simple. The fitting features a smooth internal curve which is in the middle of the thimble. This ergonomic design allows easy connection to the loop of the guy grip.
For the material, our thimble eye bolt is made of steel. We use this material mainly because of its high tensile strength. This means that it can sustain immense force.
The powerline fitting is galvanized, a feature that gives it protection against rust and corrosion.
