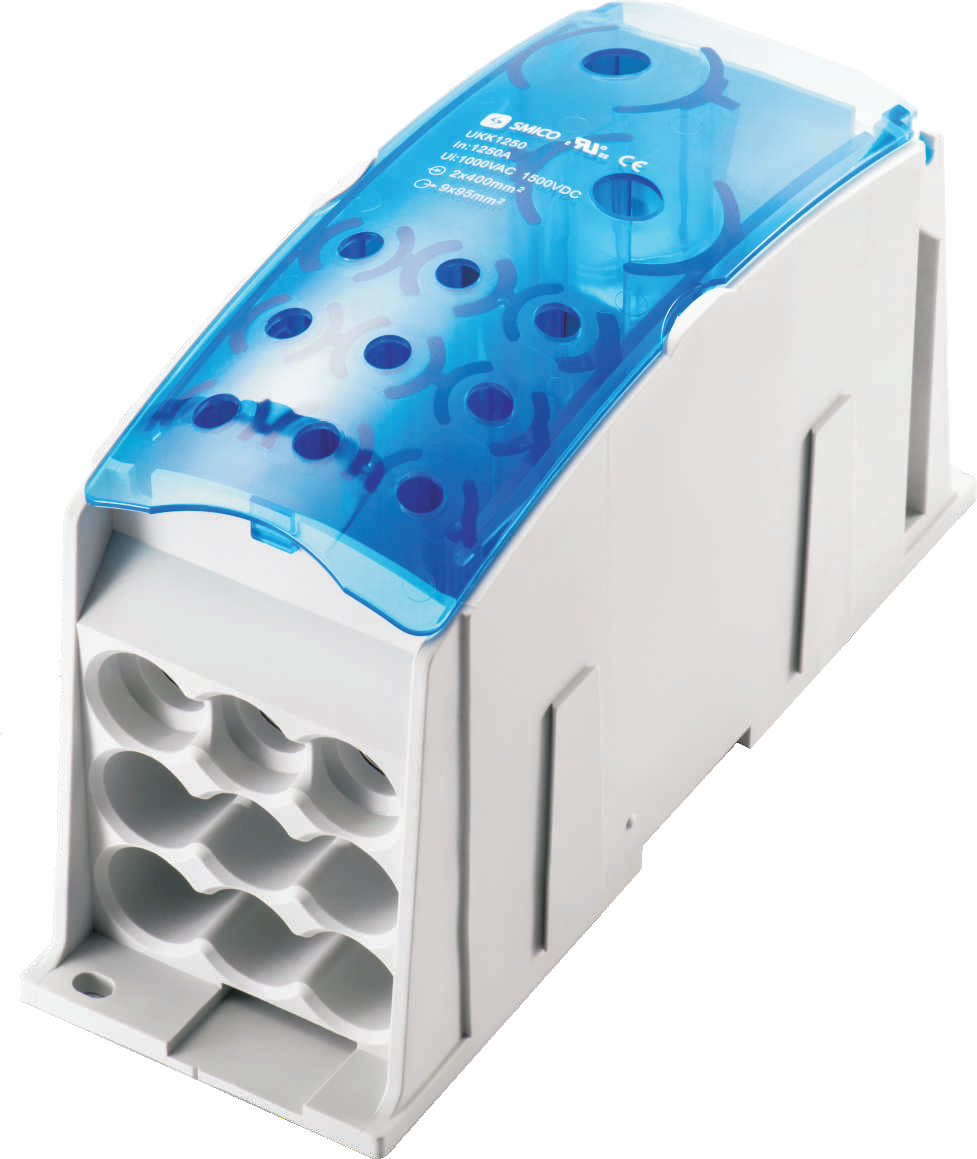

Terminal Block UKK-1250A Screw Type connector
- Conductor Range:
- In 2x(185-400)mm² Out 9x(10-95)mm²
- Standard:
- IEC 60947-7-1
- Bolt:
- Zinc Coated Steel
- Voltage:
- 600V
- Color:
- Gray-Blue
- Packaging Details:
- Carton
- Certification:
- UL
Description
UKK Series Single Pole Distribution Blocks
| Material | PA66 |
| Grade of flame retardant | V2 |
| Metal Meterial | Brass nickel plated |
Catalog Number
UKK-1250
Certifications
Specification
Material
| Size(mm) | 195.5x72.2x112 |
| Screw | Zinc-Coated Steel/Aluminium Alloy |
| Conductor | Tin-Coated Aluminium |
| Housing | PA66/V-0 |
| Cover | PC |
Electrical Date
| Standards | IEC 60947-7-1 | UL1059 |
| Voltage(V) | 1000 | 1000 |
| Current(A) | 1740 | 950 |
| Icw(KA) | ||
| Ipk(KA) |
Wiring Data
| Input | A |
| Connection Points | x2 |
| Torque(N.m) | 42.2 |
| Diameter(mm) | 27.5 |
| Metric Wire(mm²) | 185-400 |
| Imperial Wire(AWG) | 400-750kcmil |
| Ootput | A |
| Connection Points | x9 |
| Torque(N.m) | 17 |
| Diameter(mm) | 13.5 |
| Metric Wire(mm²) | 10-95 |
| Imperial Wire(AWG) | 8-3/0 |
Advantage
Tinned copper or aluminum block allows for copper or aluminum conductor direct connections, or using ferrule
Screw retaining cover is hinged and removable
Design allows for visual inspection of conductor and confirmation of connection
Modular snap-together blocks for building multi-pole power blocks
Easily clips onto DIN rail or mounts to panel with screws
95% fill ratio
RoHS compliant
Conforms to EN 45545 obtaining an HL3 classification for chapter R23 and HL2 classification for chapter R22
Halogen free

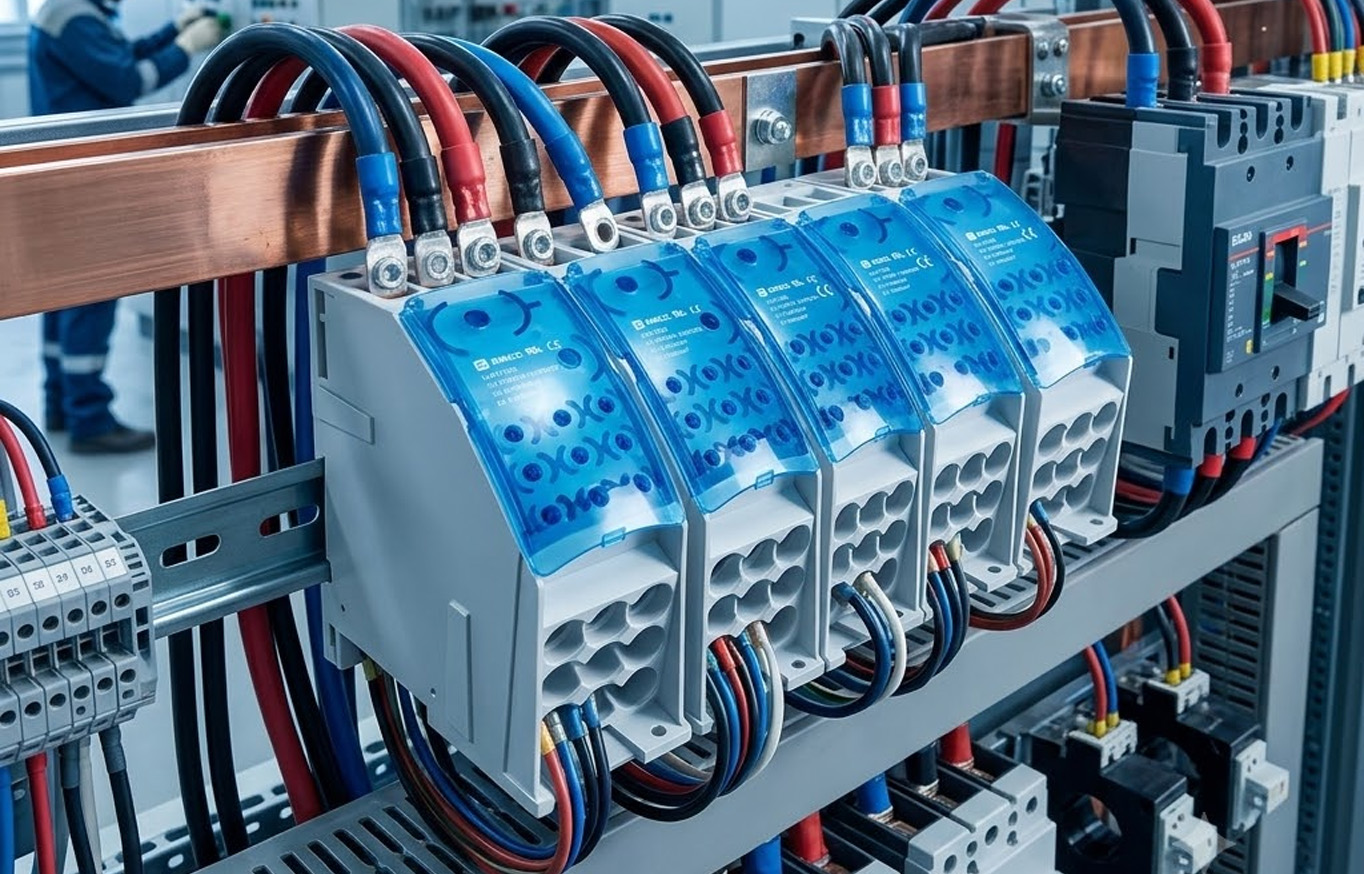

Location
