80A DIN Rail Distribuitor Box UKK terminal UKK 80A
- Model Number:
- UKK 80A
- Conductor Range:
- Entry:1x16mm² Output:2x16/4x16mm²
- Standard:
- IEC 60947-7-1
- Supply Ability:
- 200000/Month
- Voltage:
- 690V
- Color:
- Blue and Gray
- Material:
- Flame resistant Nylon PA66, brass conductor
- Certification:
- CE, RoHS, CQC, ISO 9001
Description
 |
 |
 |

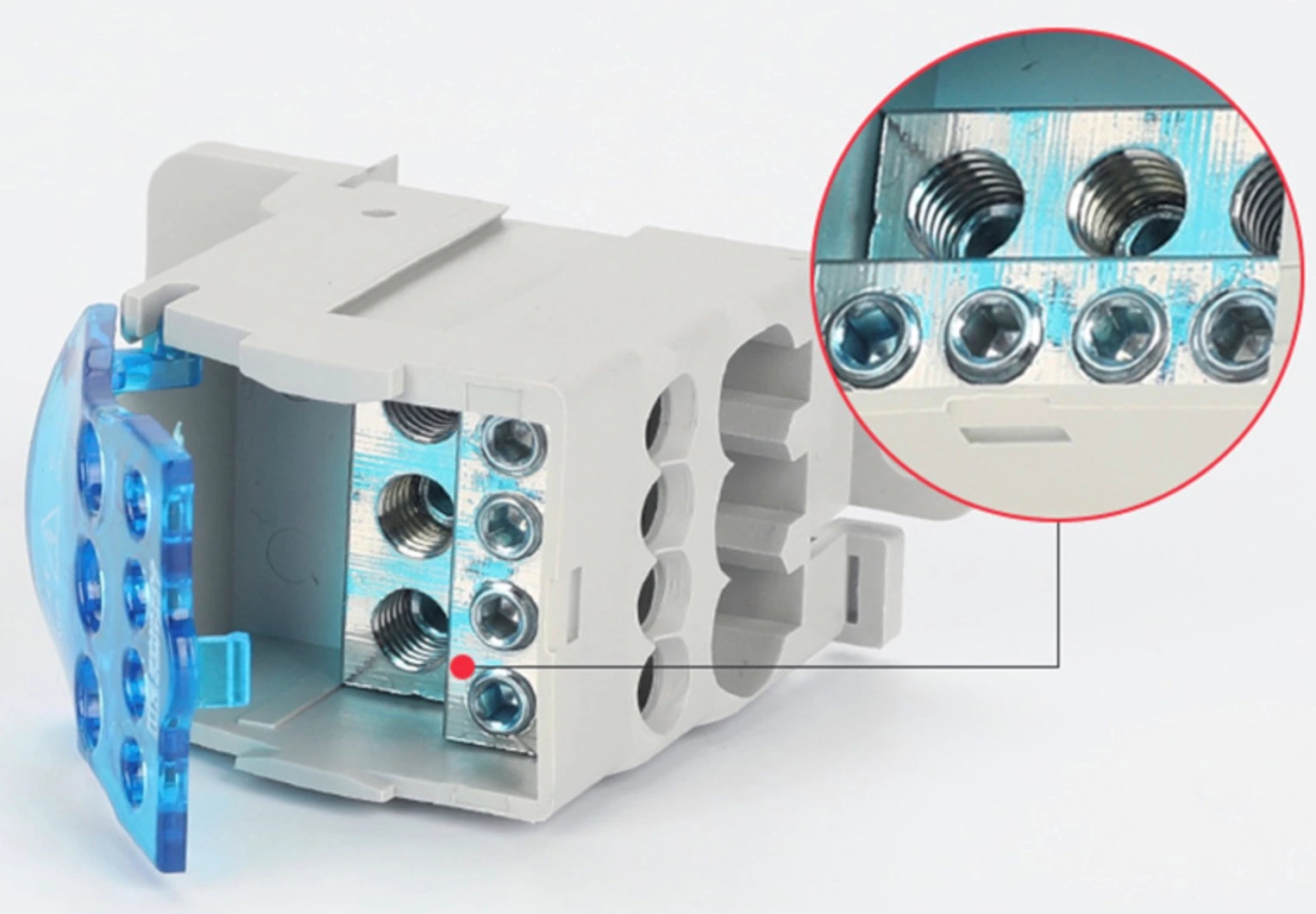

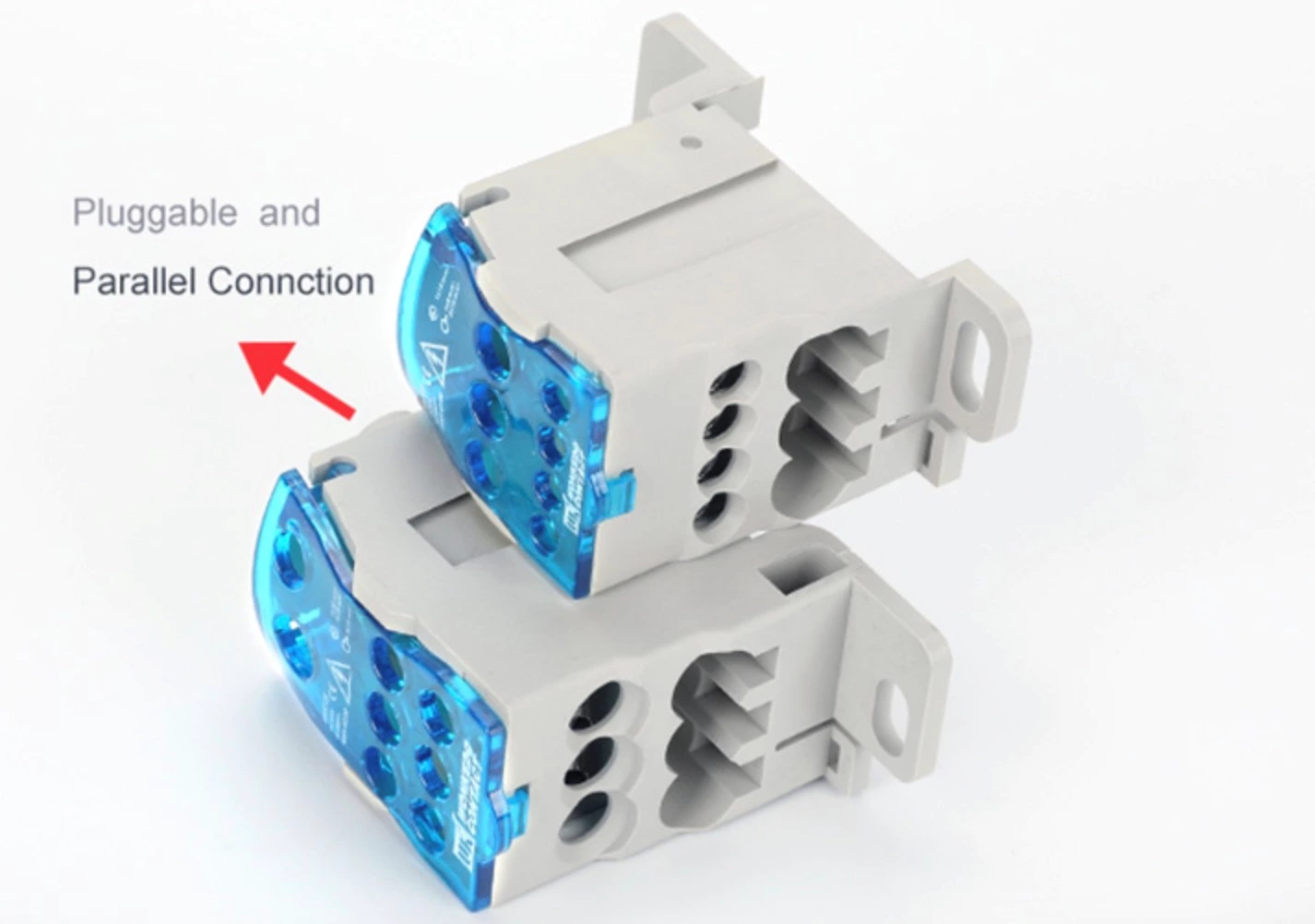

| UKK teriminal dimensions | Brass metal material | Pluggable connection |
 |
 |
 |

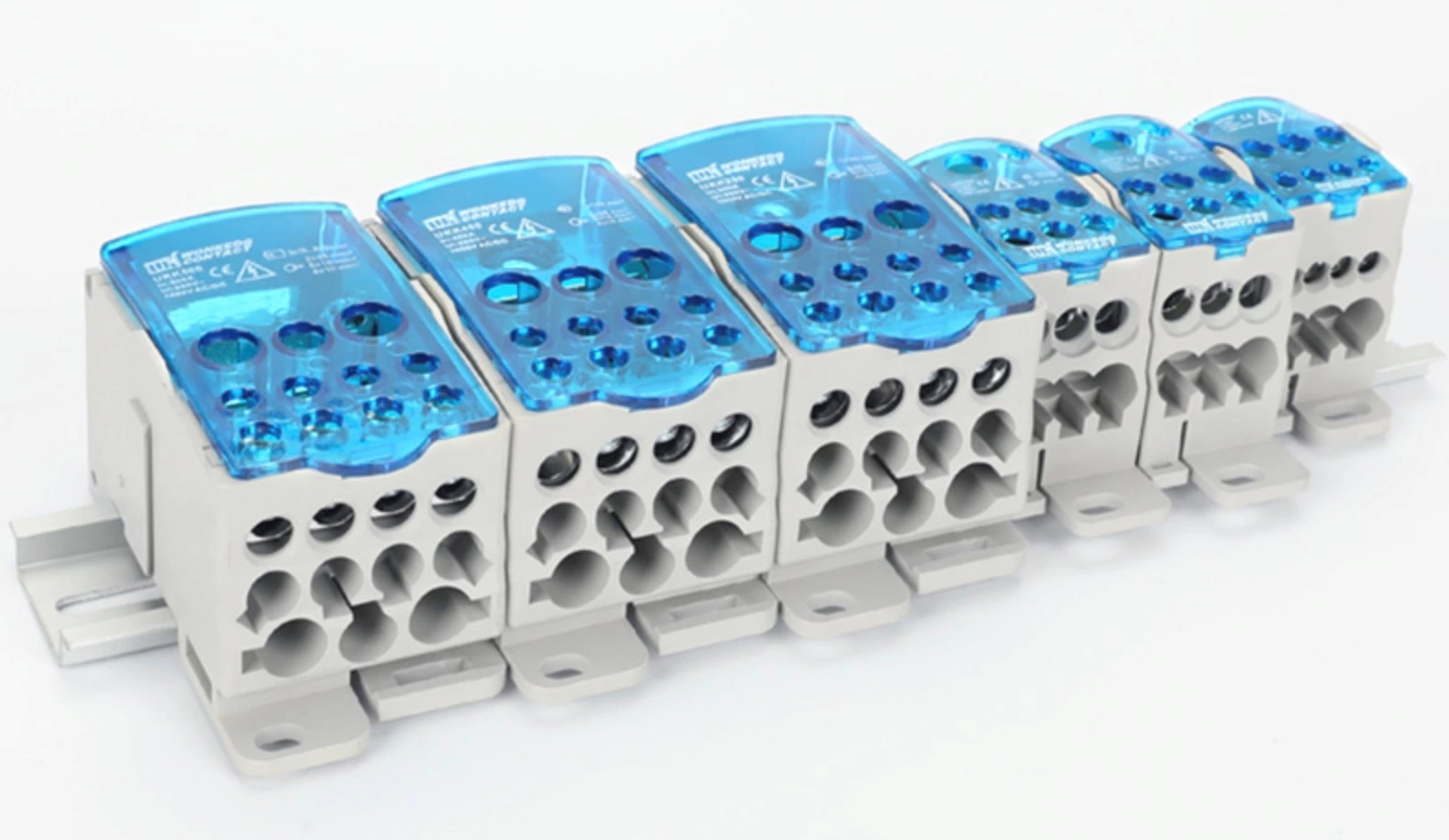

| One entry multi output simple and quick operation | Reasonable structural design | Din rail install |
Specification
| Model No. | UKK 80A |
| Color | Blue and Gray |

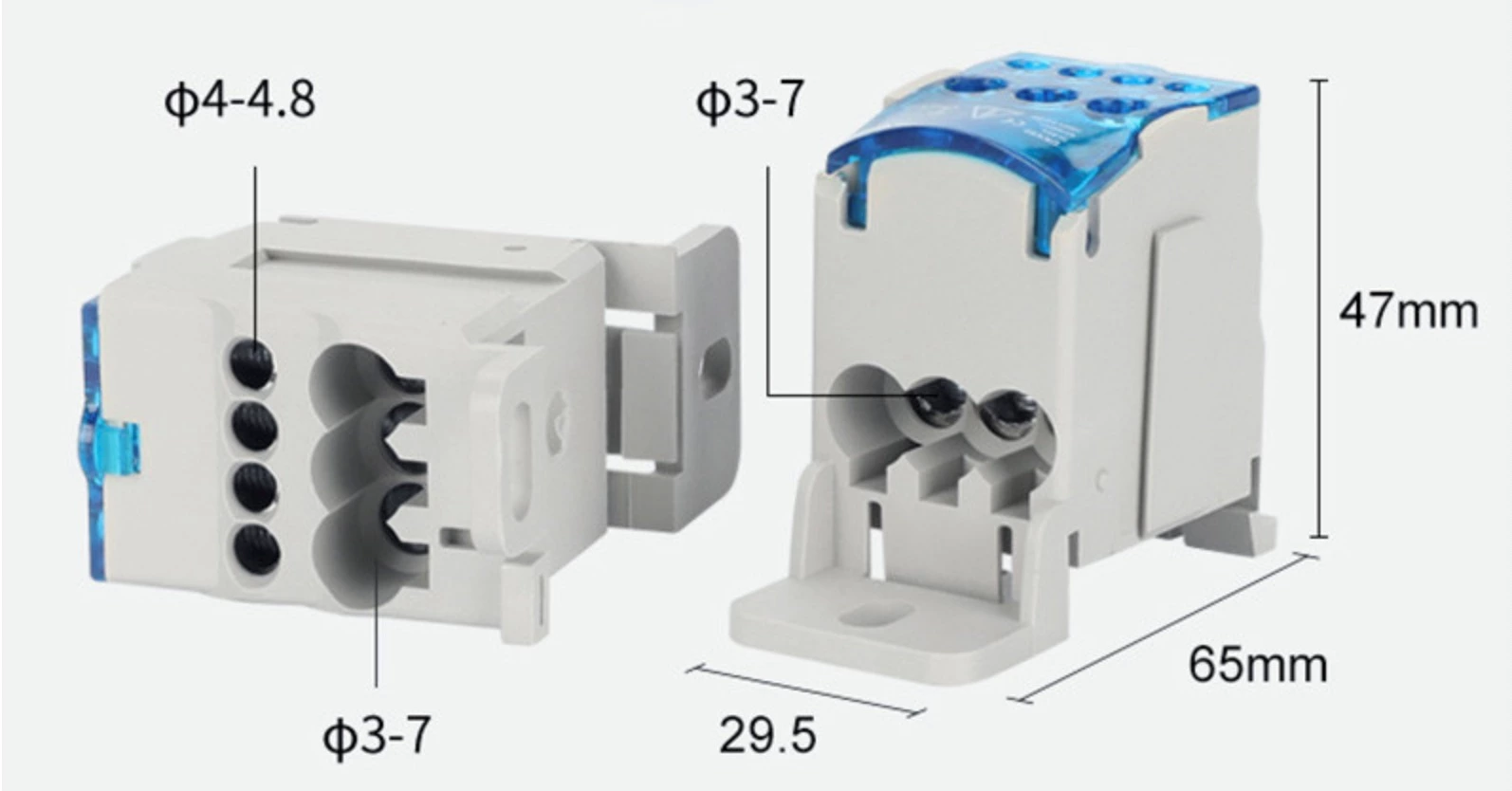

| Length/Height/Wide (mm) | 29.5/47/65 |
| Connection method | Screw connection |
| Material | Flame resistant Nylon PA66, brass conductor |
| Rated Voltage/Current | 690V/80A |
| Entry Specification | 1X16 mm² |
| Output Specification | 2X16/ 4X16 mm² |

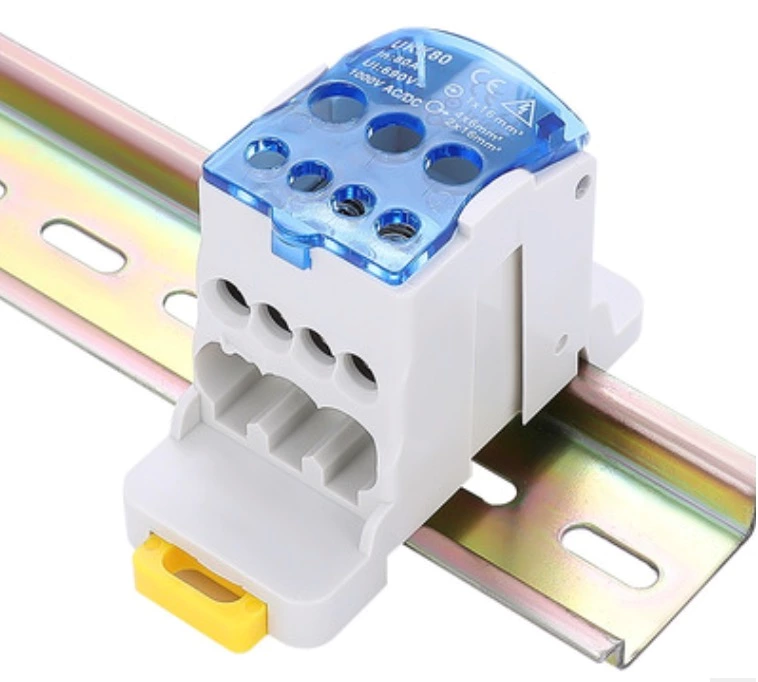

| Mounting Type | DIN Rail NS 35 |
| Standard | IEC 60947-7-1 |
| LOGO | SMICO, LOGO can be customized |
| Certification | CE/RoHS/CQC/ISO 9001 |
Advantage
Adapter switch cabinet accessories junction box connector Ukk 80A. The purpose of this junction box is to allow the construction of single pole, two pole and three pole power modules. The transparent cover allows you to easily check whether the cable is reliably connected. The protection class of the protective cover is IP20.
- High conductivity and good electrical contact.
- Compact design in accordance with EN 60947-1 design
- Suitable for 35mm DIN Rail.
- Accept customized LOGO, other colors can also be customized.
- Also available with Din Rail Terminal Block,Bus bar Terminal Block,Screw Terminal Block,Multi Conductor Terminal Blocks,Push In Terminal Block etc.
