Power Distribution Two Socket Ready Board

Product Name:
Ready Board
Brand:
SMICO
Voltage:
240V
Working current:
MAX 16A

Product Description

Product Introduction:

The 2 sockets of this product can be replaced with plugs of any specification according to your needs, such as German Standard module,French Standard module,British Standard module,American Standard module,Australian Standard module,South Africa module,Israel module,Iltalian module ,Brazilian module,USB module,etc.

SERVICE CONDITION

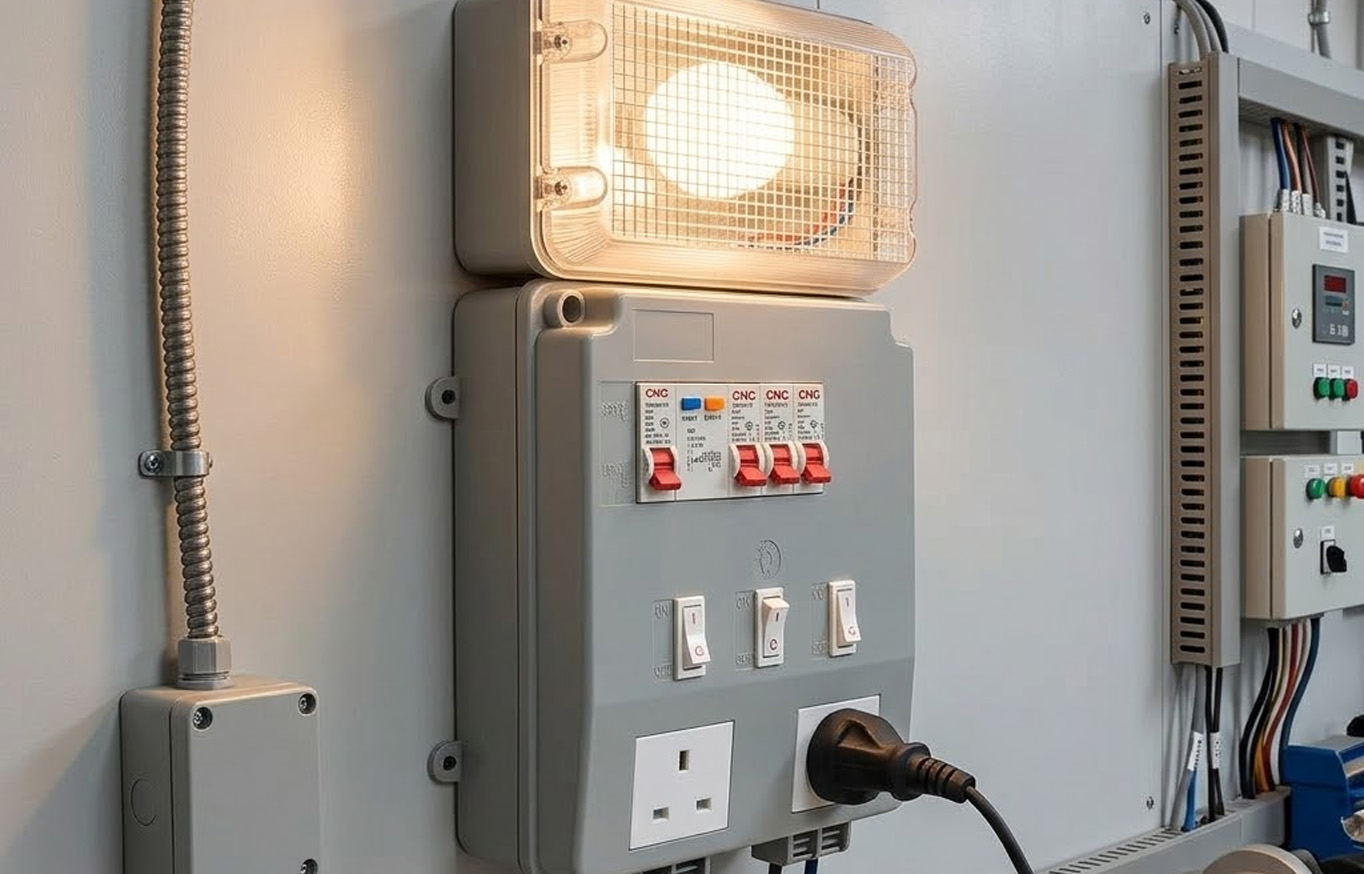

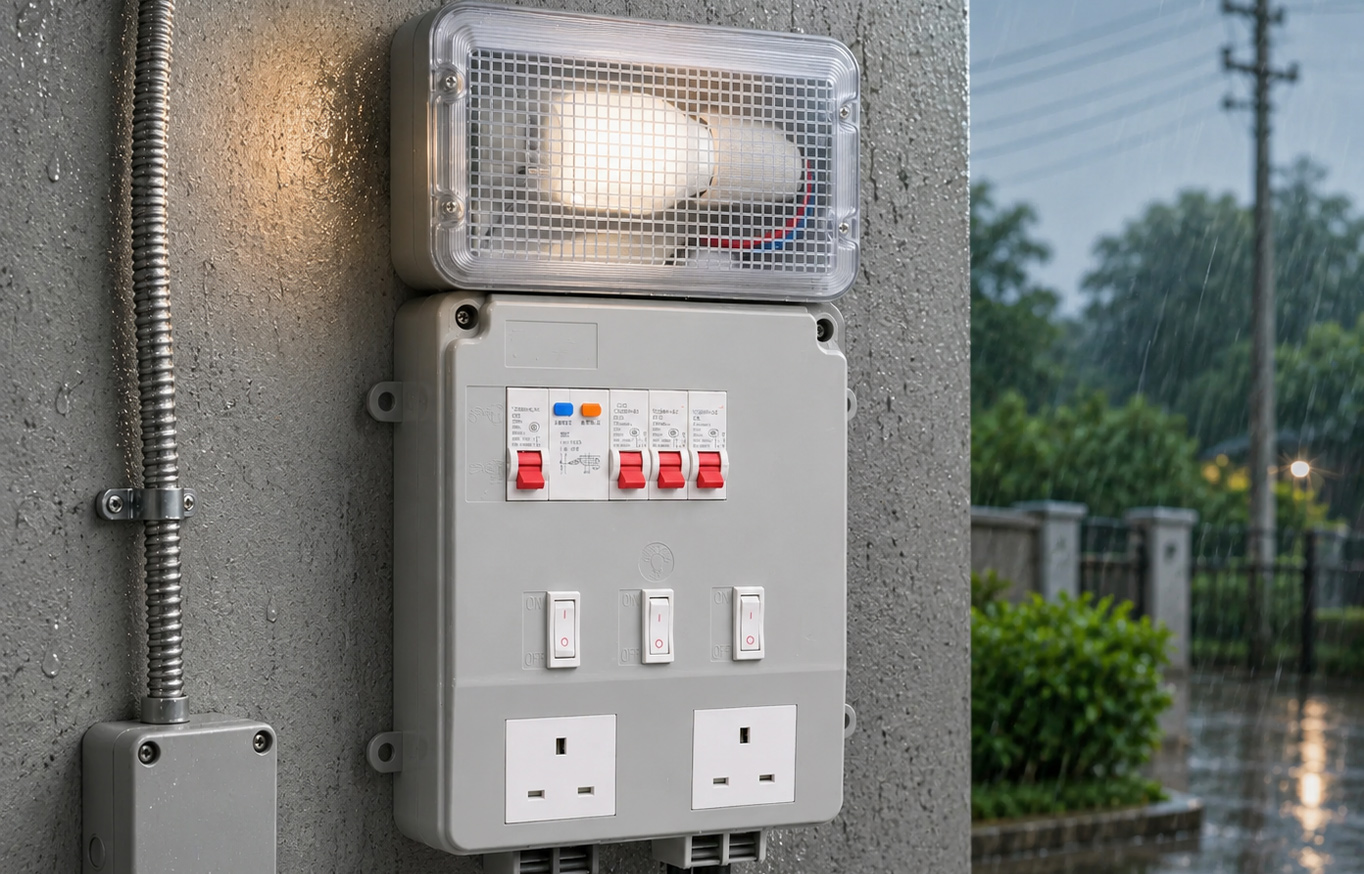

A Ready Board is a small gadget used to distribute power in a small building of two rooms or less.Since no wiring is needed, extension cables are used to supply power from the gadget to places where power is needed.When using Ready Board, one does not need electrical wiring in the property, therefore can save wiring cost.

FEATURES

Ready Board is basically a set of the following items:
Main Switch: for switching power supply on or off.
Circuit Breaker:for disconnecting supply in the event of a short circuit.
Earth Leakage System: for safety in case of leakages.
One large lamp for lighting the room where Ready Board is installed
Tow Switch Socket:
Left Hand Side Switch Socket: For connecting extension cable to heavy power appliances such as cookers.
Middle Switch Socket:For connecting extension cable to medium power appliances such as a iron
Right Hand Side Switch Socket: For connecting extension cable to light power appliances such as radio, TV set, fans etc.
Ready Board is supplied to customers along with a metering unit for measuring electricity consumption.

Specifications

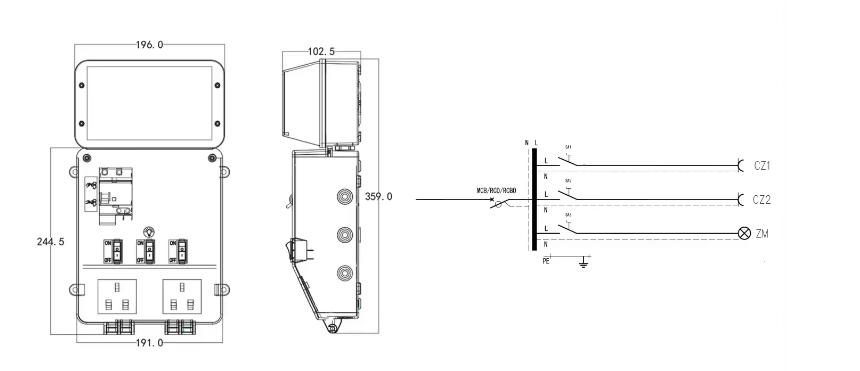

Power Distribution Two Socket Ready Board

Items Parameters
Power input AC 230V/240V/220V/50Hz
Socket power output Double sockets 13A
Lamp power 1W-100W
Switch current Max.16A
Residual-current circuit breaker (RCBO) AC230V/50Hz 5-80A
Temperature -30 to 60℃
Protection class Socket IP34, casing IP54, light chamber IP67





Application Places

  1. Applications of the ready board include: ‌

  2. Homes and apartments: ‌ is used to control and distribute lighting and power to homes and apartments. ‌
    Commercial buildings: ‌ such as office buildings, ‌ shopping centers, ‌ restaurants and other commercial places of power distribution and lighting control. ‌
  3. Industrial field: ‌ In factories and production facilities ‌ supplies power to various mechanical equipment and lighting systems. ‌
  4. Educational institutions: ‌ In educational institutions such as schools and ‌ universities, ‌ controls the lighting and power supply on campus. ‌
  5. Medical institutions: ‌ In hospitals, ‌ clinics and other medical facilities, ‌ is used for lighting, ‌ medical equipment power supply. ‌
  6. Public facilities: ‌ In the library, ‌ gymnasium, ‌ museum and other public facilities, ‌ is used for power distribution and lighting management. ‌
  7. Outdoor place: ‌ used for street lamps and outdoor lighting in public streets, ‌ parks, ‌ parking lots and other outdoor places. ‌
