Ratchet Cutter

Products

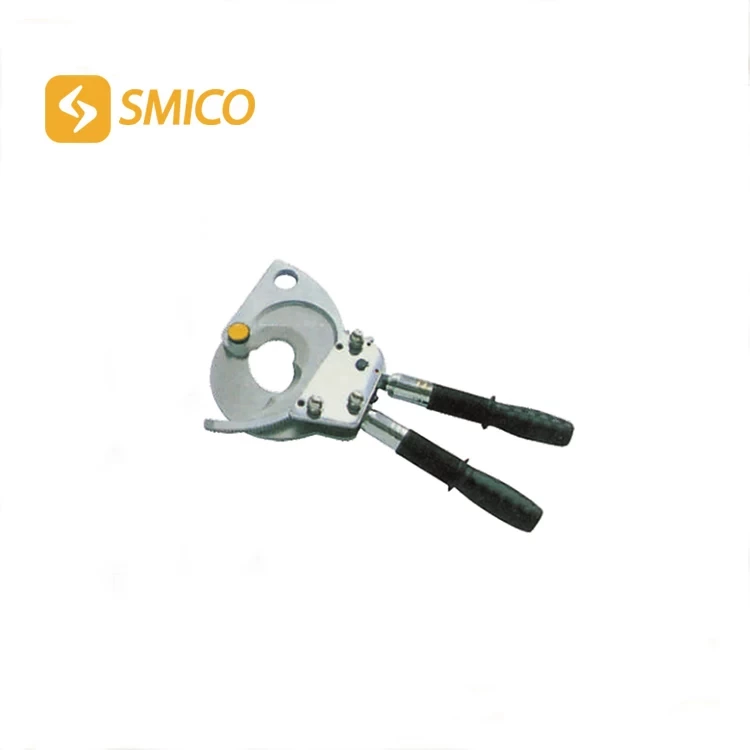

XLJ-65A Ratchet cutter

Type XLJ-65A Types XLJ-95A/120A/160A
XLJ-65A Ratchet cutter XLJ-65A Ratchet cutter
Ratchet Cutter
Forged knife edge for long shelflife and easy cutting.
Compact and light for easy carrying.
Easy release and could stop at any position.
Ifkinife return is necessary during cutting,let the movable handlelock and against the prop tooth block,
then loosen the hand which gripes the handle,turn the swivel knife in counter clockwise.
Note:Cutting steel rope and steel baris strictly prohibited.

Specification
Model Range of Application Length Weight
XLJ-65A Cutting Cu-Al cable below Φ65 355mm(stretch Extend 435mm) 3.0kg
XLJ-95A Cutting Cu-Al cable below Φ95 530mm(stretch Extend 725mm) 6.3kg
XLJ-120A Cutting Cu-Al cable below Φ120 555mm(stretch Extend 745mm) 7.0kg
XLJ-160A Cutting Cu-Al cable below Φ160 760mm(stretch Extend 950mm) 9.5kg
