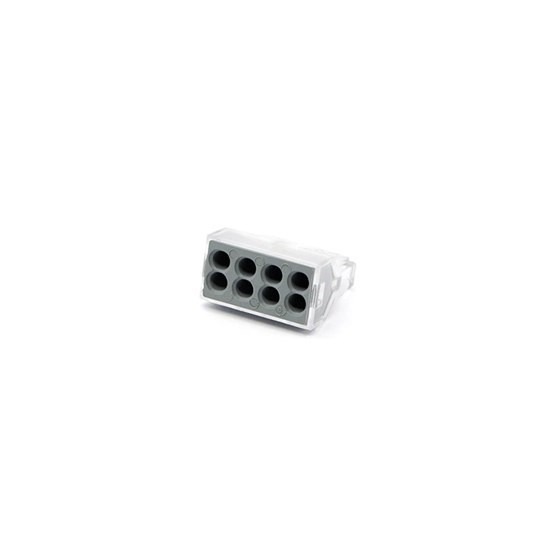

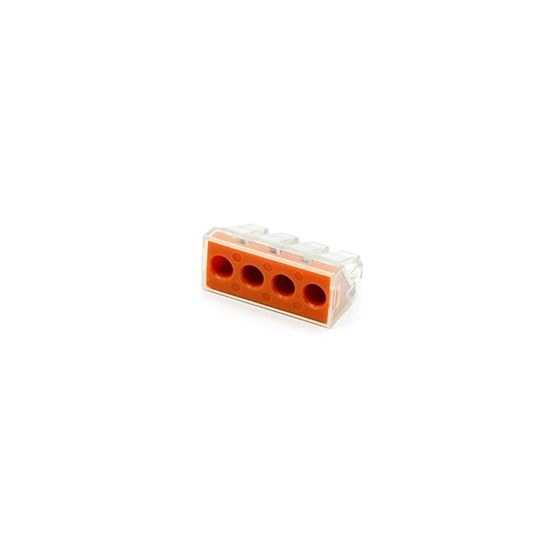

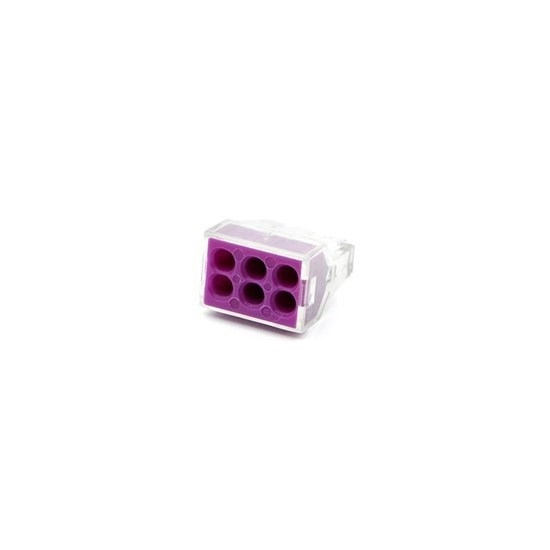

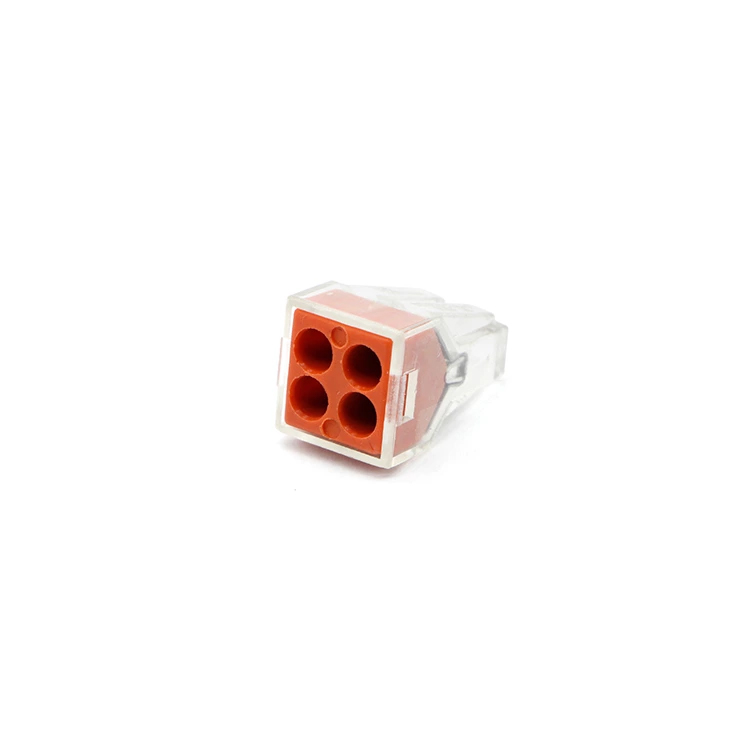

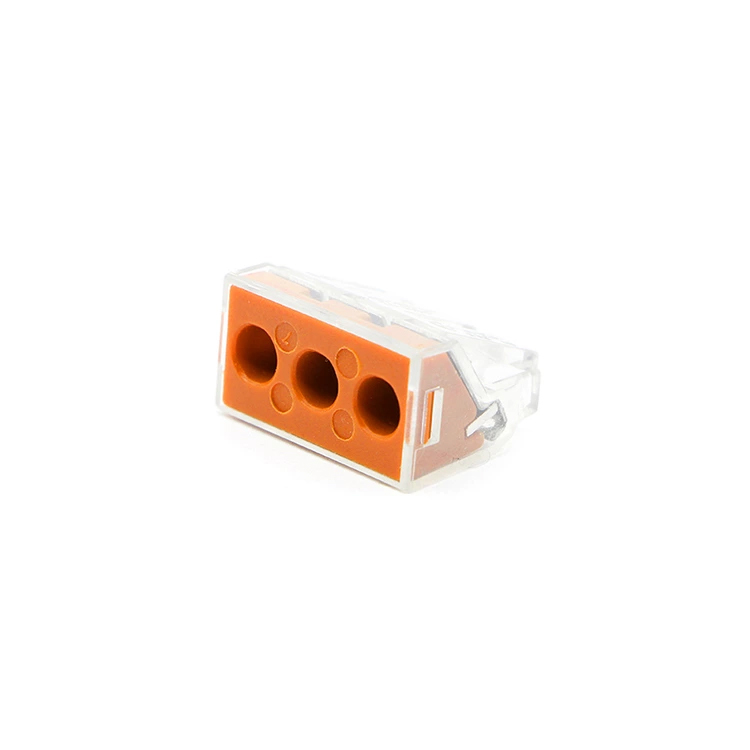

773 series wire terminal connector 104D quick connector 4pin push wire connector PCT-102
- Number of contacts:
- PCT-102
- Rated current:
- 24A
- Part:
- PCT-102
- Packaging Details:
- Standard Export Cartons
- Delivery Time:
- Within 7 Days
- Payment Terms:
- L/C, T/T, Western Union, Paypal
- Supply Ability:
- 100000 pcs per month
- Rated voltage conductor:
- 450V
- Order No.:
- PCT-102
Description
Specification
| Parameter | Specification |
|---|---|
| Rated voltage conductor | 450V |
| Rated current | 24A |
| Applicable Wire Size | 0.5~2.5mm², compatible with solid & stranded copper wire (no ferrule needed for stranded wire) |
| Flammability Rating | UL94-V0 flame retardant PC housing |
| Operating Temperature | -40℃ ~ +105℃ |
| Ingress Protection | IP20 (indoor wiring only) |
| Internal Structure | All terminals internally connected, multi-in & multi-out wire splitting |
Advantage
Fast, easy, no-twist necessary, reduces installation time and twist fatigue
Color-coded for easy indentification of different sizes
Compact size; takes up less space
No bare wires to cause shorts
Each wire is individually clamped; provides more secure gripping on conductor
Location
Packaging
FAQs
01. Manufacturer Offering Competitive Pricing and High Quality.
We are a direct-sales manufacturer offering both competitive pricing and high-quality products, helping you gain a foothold in the market—specifically in Wenzhou, Zhejiang Province, China. You are warmly invited to visit our company.
02. OEM/ODM Services.
We are a manufacturer backed by an exceptional and highly collaborative team.
03. Standard Payment Terms.
We accept various payment methods, including Telegraphic Transfer (TT) in advance, Letters of Credit (L/C), Western Union, and others. Please feel free to contact us if you have any questions!
04. Warranty Period.
1.5 years. Any quality issues will be resolved through free replacements included with your next order.
05. Free Samples.
Yes, we provide samples of smaller products for your quality assessment; you are only required to cover the courier fees.
