D101D One Position Din-Rail Meter Enclosure Complete Set
- Product Name:
- One Position Din-Rail Meter Enclosure Complete Set
- Model Number:
- SO-D101D
- Brand:
- SMICO
- Supply Ability:
- 1000000
- Operating Temperature:
- -25 ℃ ~ +50℃
- Color:
- White or Gray
- Material:
- Fire retardant Polycarbonate and ABS material
Description
SO-D101D ONE Position din rail meter enclosure is Suitable for single-phase guide rail meters, with circuit breaker flip cover,
with the characteristics of high strength, protrusion, tensile resistance, weighting, etc. Protection grade IP54, supports coherent and
pole installation, can be padlocked and sealed, and supports meter box detection function.
Specification
| PARAMETERS | SO-D101D |
| Meter Type | Din Rail Meter |
| Meter Ways | 1Way |

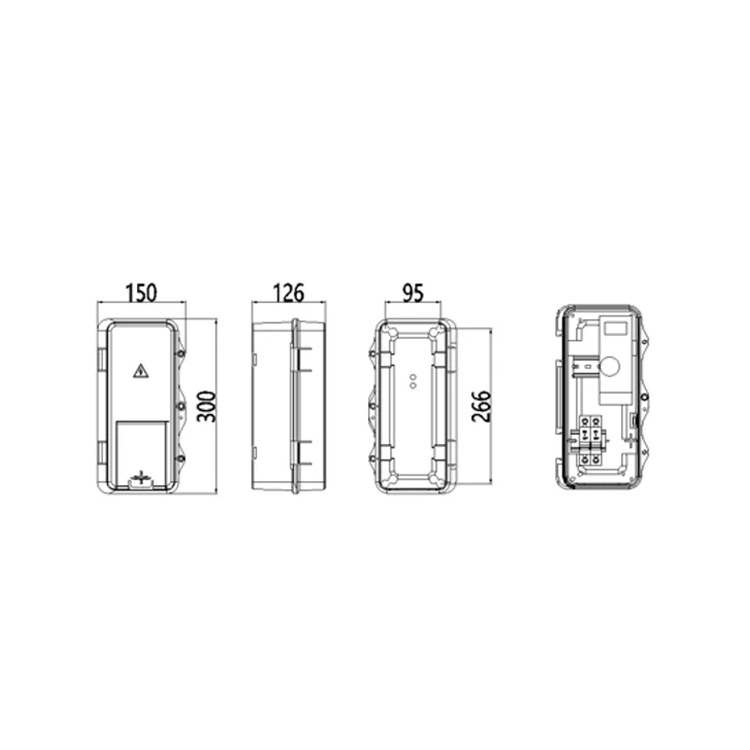

| Dimensions (HxWxD, mm) | 300*150*126mm |
| Maximum operating temperature | 85℃ |
| Maximum relative humidity | 100% |
| Maximum annual rainfall | 2000 mm |
| Maximum altitude above mean sea level | 3000m |
| Water Absorption | ≤ 0.1% |
| protection level | IP54 |
| Resistance to mechanical shocks | IK09 |
| Flammability | UL94-V0 |
| Mechanical strength | Strength:64MPA Flexural strength:103MPA |
| Light transmission (Transparent window) | >88% |
| Heat Deflection | ≥158℃ |
| Heat resistant & Flame retardant (Glow Wire) | ≥750℃ & ≥960℃ |
| Installation type | Wall mounted / Pole mounted |
| Installation Location | Indoor / Outdoor |
Advantage
1. Model No.:SO-D101D
2. High protection rate IP54
3. Type: Din-Rail type Meter Enclosure
4. Outline Dimension: 365*180*130mm
5. Color: White or Gray
6. Port: Ningbo/Shanghai, China
7. Operating Temperature: -25 ℃ ~ +50℃
8. Materal:PC/ABS+PC/ABS/PC+GF10%
9. Optional wall mounted or pole mounted
10. Span life more than 30 Years
11.Anti-tamper：Meter box door locks, Meter box door seals Door open detection sensor (optional)
12.Excellent electricity insulation performance
Location
- Metallurgy, steel, nuclear power plants
- Tunnels, subways, charging piles
- Photovoltaic systems and other electrical connection environments that require waterproofing and dustproofing
