Lv Pole Mounted Circuit Breakers D165T 165A with digital trip unit
- Model Number:
- D165T
- Conductor Range:
- 25-70mm²
- Brand:
- SMICO
- Standard:
- HN 63-S-11
- Supply Ability:
- 1000pcs one month
- Voltage:
- 0.44KV
- Color:
- Gray
- MOQ:
- 10
Description
The protection and management of MV/LV transformers in rural areas requires the use of specific circuit breakers adapted to significant load imbalances, and thus guarantees complete power usage even in unbalanced conditions. These devices (4 poles, three of which are protected) use air-break technology with chambers with metal partitions to cut the arc. Low voltage pole mounted circuit breaker D165T – D265T with a digital trip unit.
The protection and management of MV / LV transformers in rural areas requires the use of specific Circuit Breakers adapted to significant load imbalances and thus guarantees the total use of the installed power even in unbalanced conditions. These devices (4 poles - 3 protected) use air-break technology with chambers with metal partitions to cut the arc
Specification
| Stadards | HN 63-S-11 |
| Rated Voltage(Ur) | 0.44KV |
| Rated Current | 165A |
| Rated short-circuit breaking capacity | 4KA |
| Rated short-circuit making current | 6.8KA |
| Rated short-time withstand current(1s) | 4KA/S |
| Rated power-frequency withstand voltage(50HZ-1 min) | 10KV |
| Lighting impulse withstand level of ovtage(1.2/50) | 20KV |
| Degree of protection | IP31 |
| Number of outputs | 1 |
| Conductor size | 25-70mm² |
| Operating temperature | -25...50°C |
| Storage temperature | -25...70°C |
Advantage
1.Transformer protection (50 kVA or 100 kVA) more compact and easier to use than a fused solution
2.When the Circuit Breaker is closed, a spark gap limits the rise in potential of the LV neutral from the earth, for a value exceeding 10 kV
3.When the Circuit Breaker is open, an electrical connection is done between the neutral of the transformer and the ground
4.Contact us to define your needs (number of feeders, fixing support, type of rod assembly, Trip Unit type, Load Indicator option, etc.)

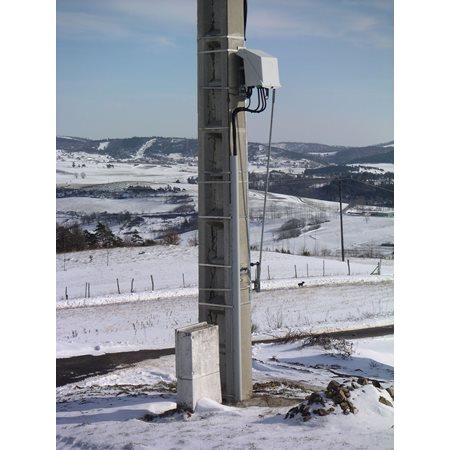

Location
