Low Voltage Regulator

General

To face the challenge of global warming, all power utility shifted to seeking for increase renewable energy connect to Grid. Like distributed renewable energy is widely connected to LT side ,such like 0.4KV.

Upon more and more distributed renewable energy injection to LT line, those RE-energy not only booster LT and transformer voltage also reduce transformer receiving capacity.

SMICO Electric LSVR series voltage regulators are especially designed to regulation on-grid site voltage problem to increase transformer capacity to receiving more RE-energy.

Application

Distributed renewable on-grid site

Telecom power supply

Agriculture irrigation

Tunnel project

Long feeder line in rural areak

Function

Automatic voltage regulation function
Adjust the voltage output voltage and set valve according to the real-time monitoring

Wireless remote control
Transfer the real-time data to the background management system through the monitoring system to improve the scientific construction and transformation of the distribution network.

Capacitor compensation(optional)
0~25% power capacitor reactive power compensation

Electric energy data measurement.
Three-phase current-voltage measurement, and store power quality data.

Features-Smart IGBT Type

Automatic control with intelligent controller

Outdoor IP44 protection class

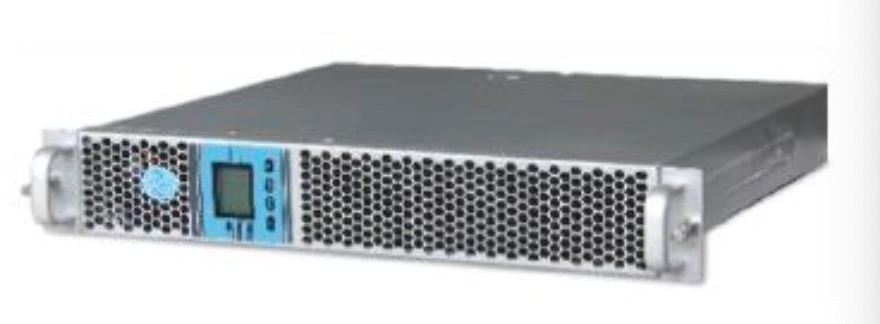

New technology with IGBT module

Larger regulation range up to ±20%UN

Fast response time <5ms

Average loss <0.5% p Long-term 1.1 times

Integrated structural design, easy installation and maintenance

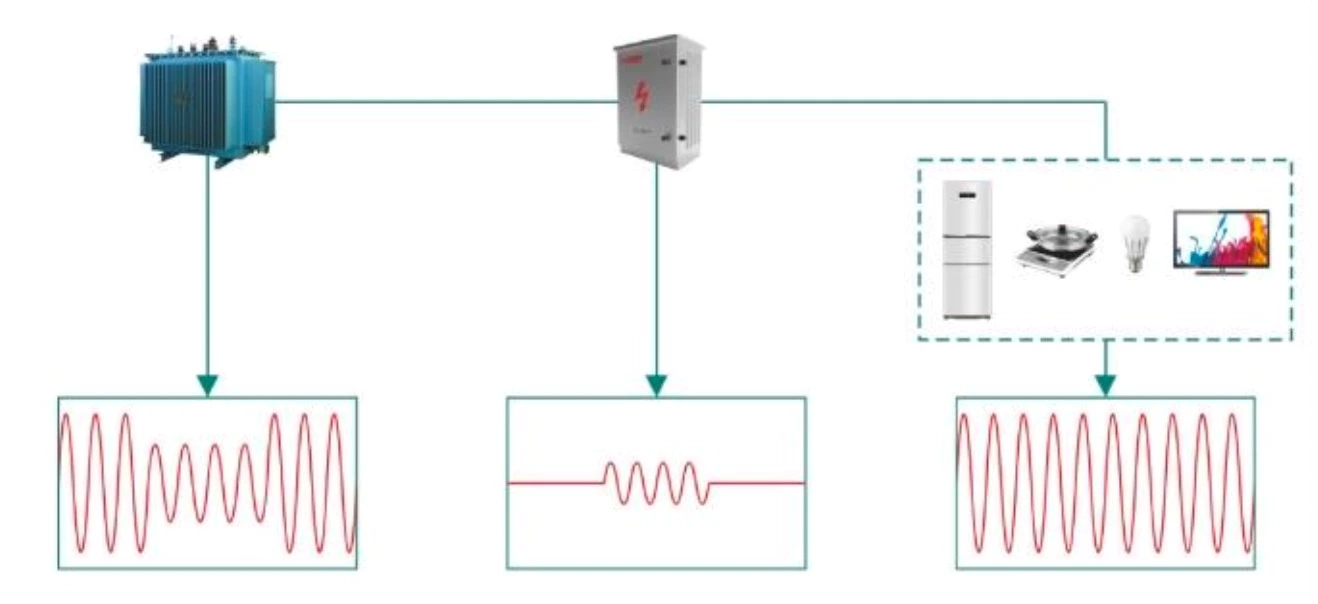

Before and after VR installed

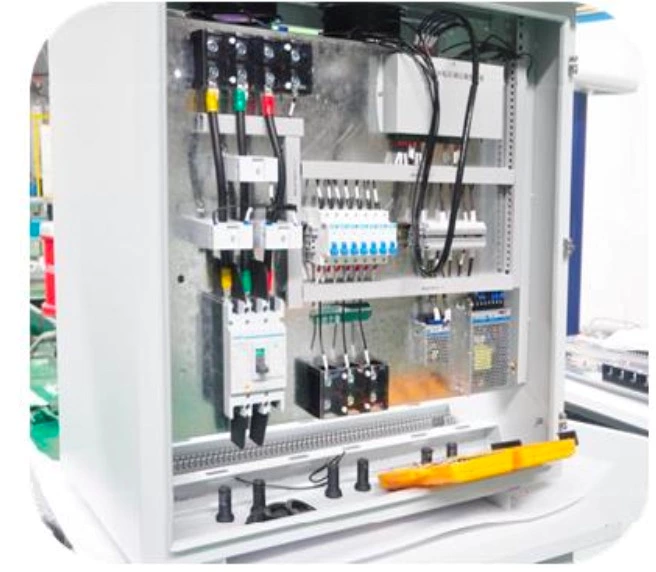

Features-Contact Type

Automatic control with intelligent controller

Larger regulation range up to ±20%UN

Real time monitoring of Electric power quality

Average loss <0.5% p Long-term 1.1 times

Integrated structural design, easy installation and maintenance

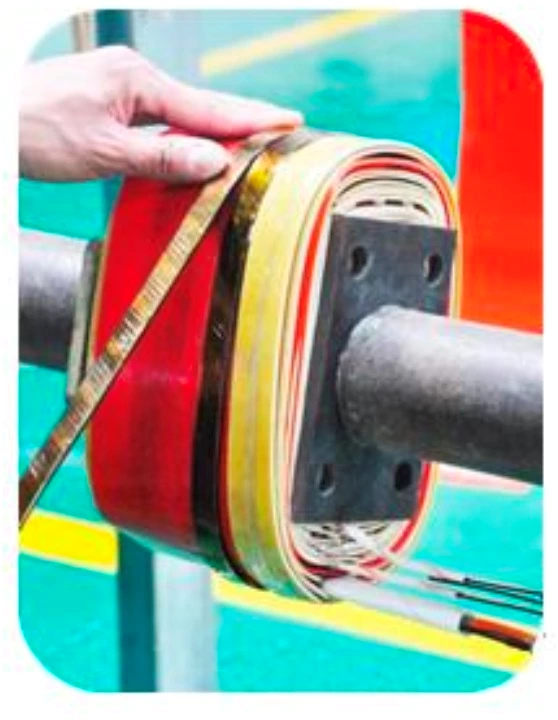

Foil coil winding, AMA interlayer insulation

Pressed vacuum heating process

Wound core structure, noise level <45dB

Average loss <0.5% p Long-term 1.1 times

High-quality contactors with an electrical life of 100,000 times

Switching transition <5ms

Maintenance free for 20 years

Reactive power compensation with Auto-capacitors
