Load isolation switch

Mini Waterproof Isolating Switch

The mini isolating switch is made of UV-resistant and anti-corrosion polycarbonate material, and is available in single-stage and bipolar.

...
Model Number:
UKF4

Description:

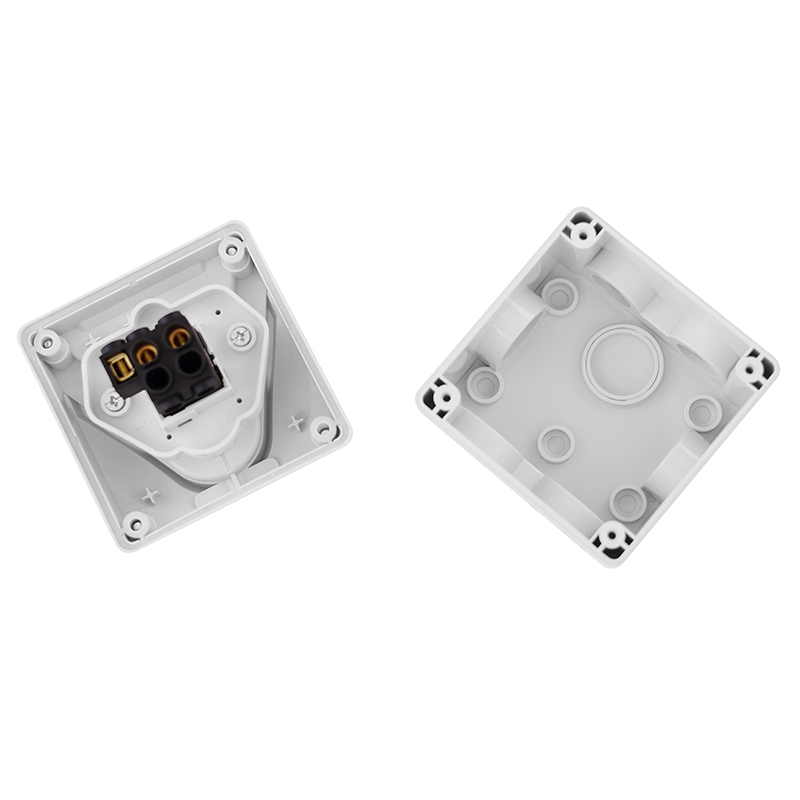

The mini isolating switch is made of UV-resistant and anti-corrosion polycarbonate material, and is available in single-stage and bipolar. The small isolating switch is suitable for use in similar places with a rated voltage of 250V and a rated current of 16A. The product is mainly composed of a shell, a handle and an inner tank. The product has beautiful appearance and compact structure.

The plastic housing of the isolation switch effectively guards against dust, moisture, and other impurities entering the interior of the switch. This protection prevents potential faults such as short circuits or breakdowns that could be caused by the ingress of contaminants. The robust construction ensures that the switch maintains its integrity even in harsh environmental conditions, further enhancing its reliability.

Mini Waterproof Isolating Switch

Characteristic:

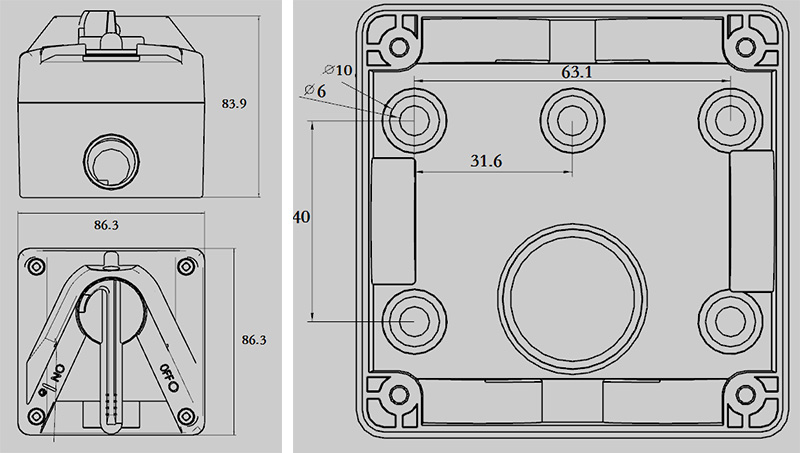

SIZE:86*86*86(MM)

Specification:1P/2P

Rated current:16A/20A/25A/32A

Rated voltage:250V

Material:PC

Material of contact:Silver contact point

Colour: RAL 7035

Product accessories: Mounting fittings

IP protection level: IP66

Flame retardant: 850℃ (30s)

Operating environment temperature: -25℃~+40℃ in places with corrosion and conductive dust.
