KTP-C small module Clamping range 6.5-10mm IP65 Matching KBL framework 046510
- Part:
- KTP-C
- Packaging Details:
- CTNS
- Delivery Time:
- within 10-14days
- Payment Terms:
- T/T
- Supply Ability:
- 100000 pcs per month
- Product Certification:
- CE
- Order No.:
- KTP-C
KTP-C small module Clamping range 6.5-10mm IP65 Matching KBL framework 046510

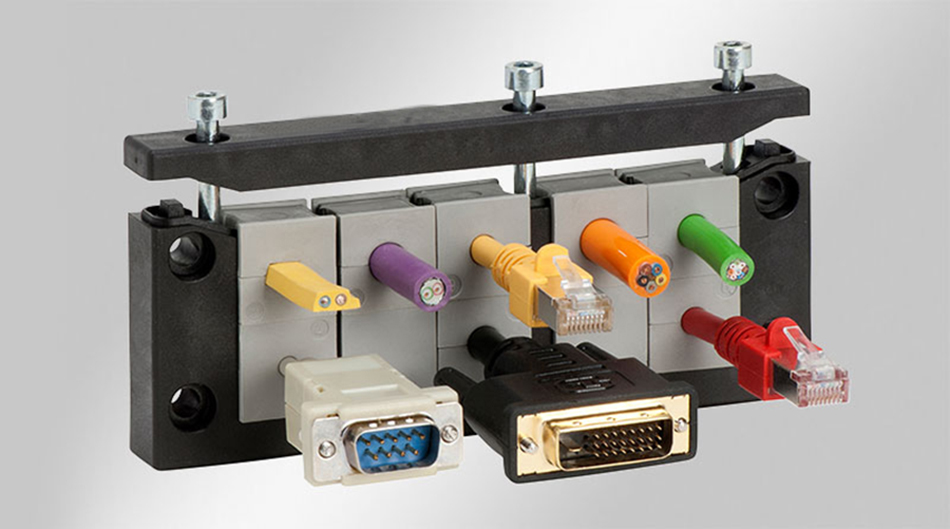

Split cable entry system for routing cables with connectors providing an IP54 / UL Type 12 rating.
Routing, sealing and providing strain relief for cable diameters from 1 to 35 mm.
The cable entry system is easy to install. Cable grommets are placed into compartments and are securely fixed to the frame during assembly.
| Type | KTP-C |
| Part No. | 046510 |
| Material | Elastomer |
| Module color | Grey |
| Flame class | UL94-V0, Self-extinguishing |
| Protection degree | IP65 |
| Temperature | -40°C to + 90°C ( Static) |
| Properties | Halogen-free, silicone-free |
| Number of cables | 1 Pcs |
| Clamping range | 6.5-10 mm |
| Use | KBL frame |
