IP54 Cable entry system Flame class UL94-V0 Self-extinguishing Detachable frame KBL 16/4
- Part:
- KBL 16/4
- Packaging Details:
- CTNS
- Delivery Time:
- within 10-14days
- Payment Terms:
- T/T
- Rated voltage conductor:
- 100000 pcs per month
- Product Certification:
- CE
- Order No.:
- KBL 16/4
IP54 Cable entry system Flame class UL94-V0 Self-extinguishing Detachable frame KBL 16/4

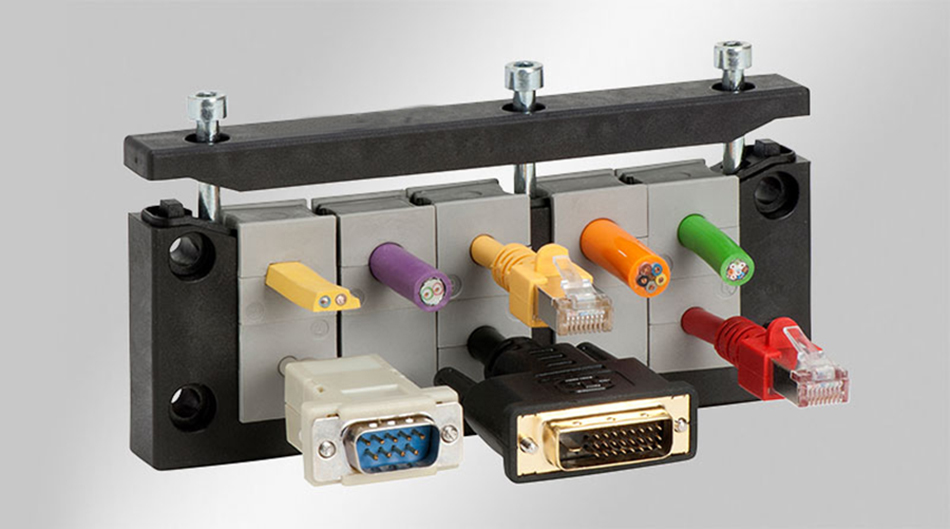

Split cable entry system for routing cables with connectors providing an IP54 / UL Type 12 rating.
Routing, sealing and providing strain relief for cable diameters from 1 to 35 mm.
The cable entry system is easy to install. Cable grommets are placed into compartments and are securely fixed to the frame during assembly.
| Type | KBL 16 detachable frame（Module purchased separately） |
| Frame model | KBL 16/4 |
| Trame part No. | 042164 |
| Material | Polyamide (PA) |
| Flame class | UL94-V0, Self-extinguishing |
| Protection degree | IP54, With gasket and correct selection of the cable inserts（Conform to DIN EN 60529:2000-09） |
| Temperature | - 40°C to + 140°C (Static) |
| Properties | Halogen-free, silicone-free |
| Number of KT modules small / large | 4×KT（ small module） |
| Cut-out dimensions（mm） | 37 × 85 |
| Height | 17 mm |
