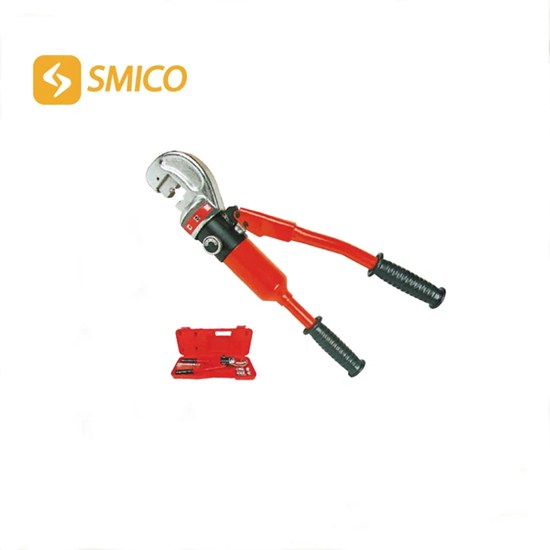

Hydraulic Crimping Tools 1.The compression pliers are designed for hydraulic crimping on power calbe and wire.The crimped conductor is tested in high conductivity and close contact so that it's easy to break out and turn hot. 2.Open out design for convenient operation. 3.Dies are quickly put on tube by double speed unit.Then compression force lift and automatically change to low speed.The operation finishes with energy saving and time shorten. 4.Fitted with safety valve.When pressure reaches to limited max.Value,pressure release automatically to prevent over pressure. 5.Standard eleven sets of die assembling: 16、25、35、50、70、95、120、150、185、240、300 6.Packing case is made from robustintegral plastic box. |
Specifications Output 12T Contact Mould 16-240mm2 Ram Stroke 25mm Size 520×145×80mm Weight 7.0kg |
