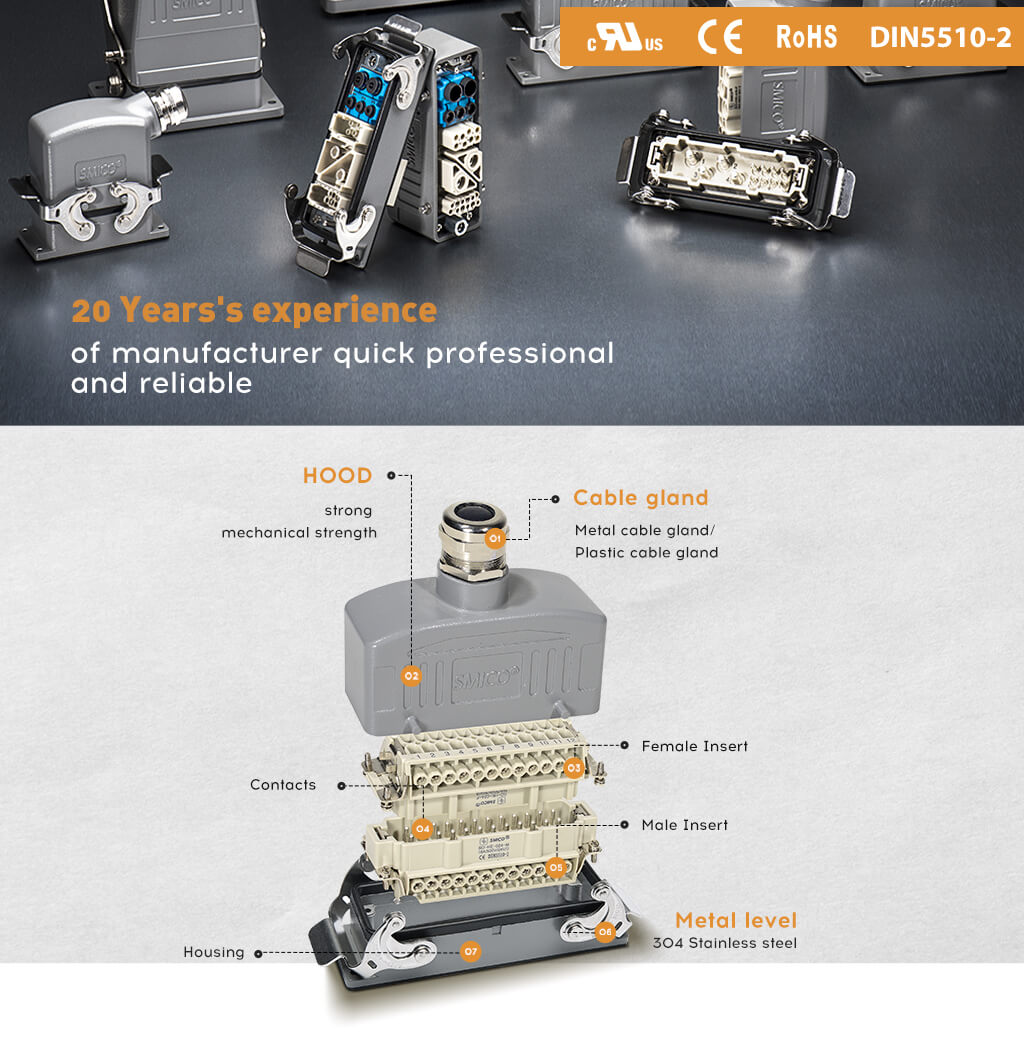

SMICO Brid QUINTAX 3A series electromagnetic shielding module heavy duty connectors
- Part:
- SO-H3A-001-M
- Packaging Details:
- Standard Export Cartons
- Delivery Time:
- Within 7 Days
- Payment Terms:
- L/C, T/T, Western Union, Paypal
- Supply Ability:
- 100000 pcs per month
- Product Certification:
- CE,UL,CUL,ROHS,DMT
- Order No.:
- 09150033001
| Inserts | |
| Number of contacts | 2 |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Q-Coax contacts | |
| Number of contacts | |
| －Q-Coax | 4+shielding |
| －High Density Q-Coax | 8+shielding |
| Electrical data acc. to EN 61 984 | |
| －Q-Coax | 10A 50V 0.8kv 3 |
| －High Density Q-Coax | 5A 50V 0.8kv 3 |
| Rated current | 10/5A |
| Rated voltage | 50V |
| Rated impulse voltage | 0.8kv |
| Pollution degree | 3 |
| Material | |
| －Insulator | polycarbonate |
| －Outer conductor | zinc alloy |
| Contact resistance | ≤4mΩ |
| Limiting temperatures | -40℃...+85℃ |
| Flammability acc. to UL 94 | V0 |
| Outer surface finish | nickel |
| Cable diameter | 3-9.5mm |
| D-Sub crimp contacts(5A) | |
| Material | copper alloy |
| Surface | hard-gold plated |
| Contact resistance | ≤3mΩ |
| Crimp terminal | |
| －mm2 | 0.09-0.52mm2 |
| －AWG | 28-20 |
| D contacts(10A) | |
| Material | copper alloy |
| Surface | hard-gold plated |
| Contact resistance | ≤3mΩ |
| Crimp terminal | |
| －mm2 | 0.14-2.5mm2 |
| －AWG | 26-14 |
