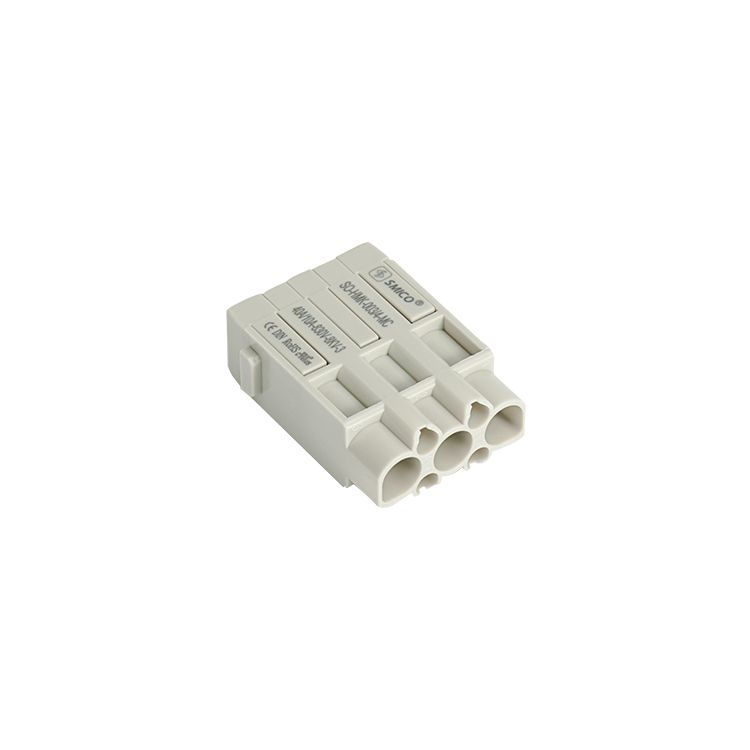

HMK 003 plus 4 Heavy Duty Electrical Connector 7 Pin With Copper Alloy Crimp Contacts 09140073001 HMK-003/4-MC
- Part:
- SO-HMK-003/4-MC
- Packaging Details:
- Standard Export Cartons
- Delivery Time:
- Within 7 Days
- Payment Terms:
- L/C, T/T, Western Union, Paypal
- Supply Ability:
- 100000 pcs per month
- Product Certification:
- UL CUL CE ROHS DMT
- Order No.:
- 09140073001
Description
Specification
| Inserts | |
| Number of contacts | 3/4 |
| Electrical dataacc. to EN 61 984 | |
| Power contacts | |
| ---Rated current | 40A |
| ---Rated voltage | 830V |
| ---Rated impulse voltage | 8kV |
| ---Pollution degree | 3 |
| Signal contacts | |
| ---Rated current | 10A |
| ---Rated voltage | 830V |
| ---Rated impulse voltage | 8kV |
| ---Pollution degree | 3 |
| Rated voltage acc. to UL/CSA | 600V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life -mating cycles | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-silver plated |
| hard-gold plated | |
| Contact resistance | |
| ---Power contacts | ≤0.3mΩ |
| ---Signal contacts | ≤3mΩ |
| Crimp terminal | |
| ---mm2 | |
| ------Power contacts | 1.5-6mm2 |
| ------Signal contacts | 0.14-2.5mm2 |
| ---AWG | |
| ------Power contacts | 16-10 |
| ------Signal contacts | 26-14 |
| Max. insulation diameter | |
| ---Signal contacts | 5mm |
Advantage
SMICO heavy duty connector
-
Compatible with other brands
-
accept OEM /ODM
-
accept customized colour : like blue ,black
-
The popular parts in stock , delivery time fast
-
Export Packing : Packing for each items respectively or packing for full one set
