Heavy duty connector D-SUB Modular 9 Pin Connectors With Silver Plated Contacts
- Part:
- SO-HMDS-009-MC
- Packaging Details:
- Standard Export Cartons
- Delivery Time:
- Within 7 Days
- Payment Terms:
- L/C, T/T, Western Union, Paypal
- Supply Ability:
- 100000 pcs per month
- Product Certification:
- UL CUL CE ROHS DMT
- Order No.:
- 09140093001
Heavy duty connector D-SUB - Heavy duty connector D-SUB Modular 9 Pin Connectors With Silver Plated Contacts - China Smico Electrical

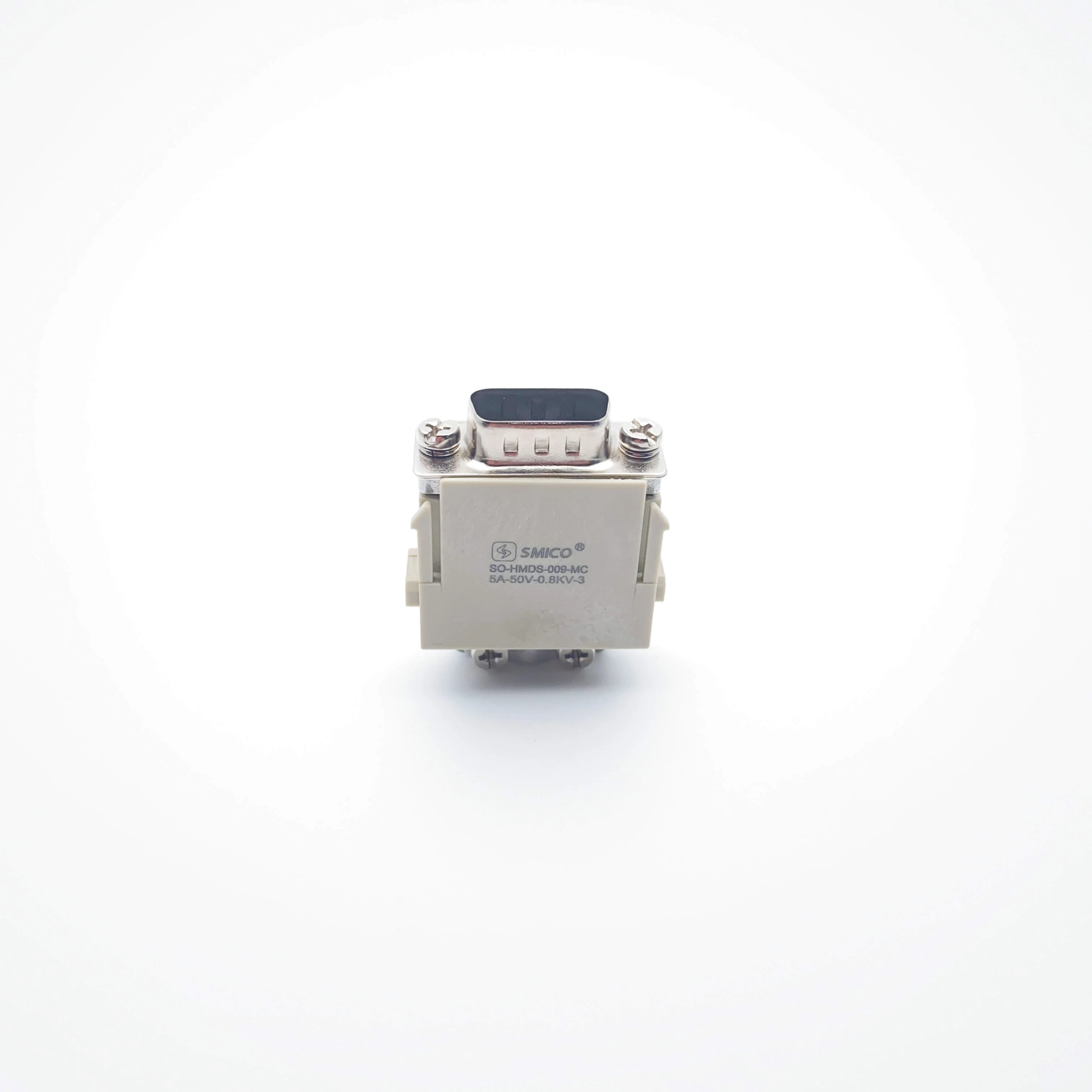

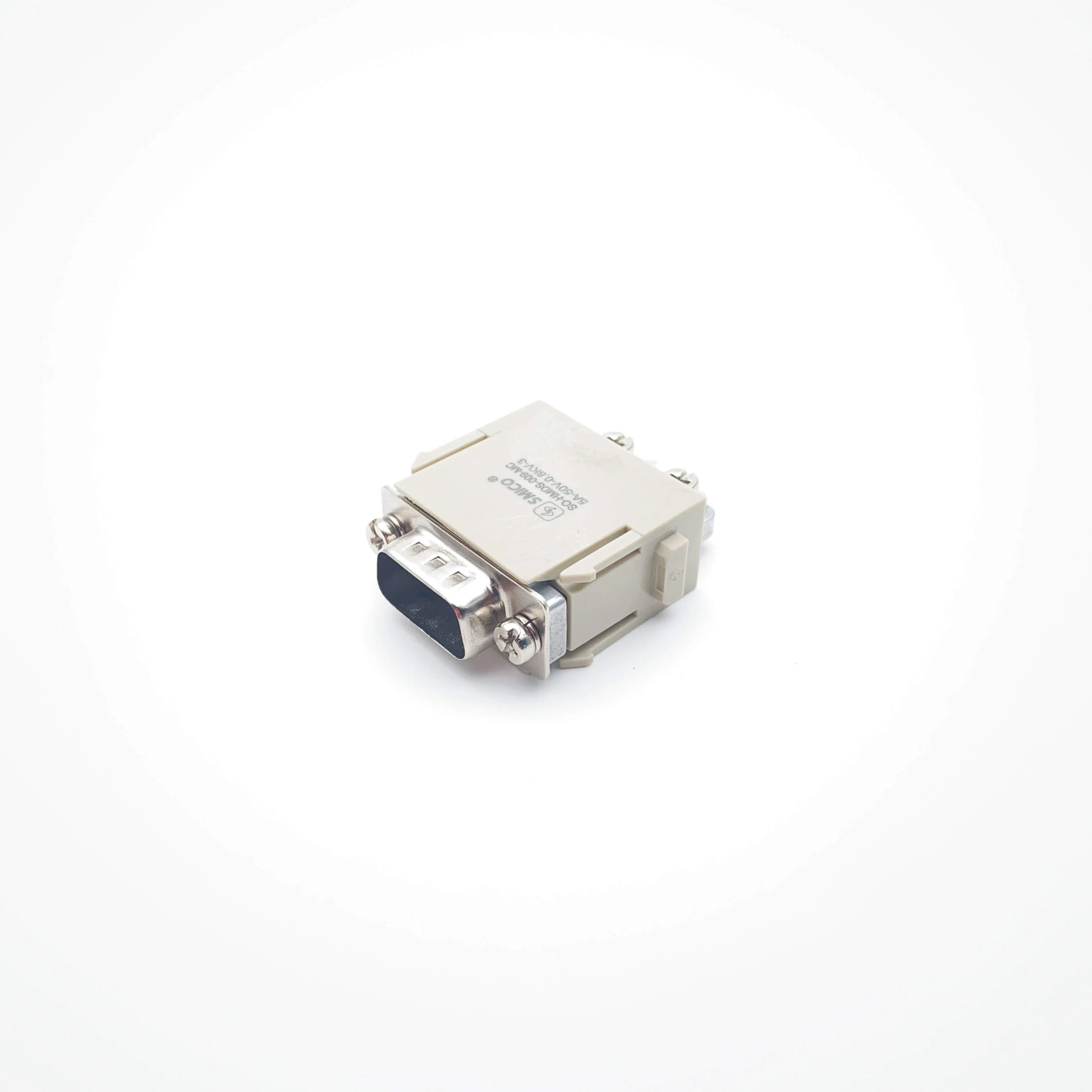

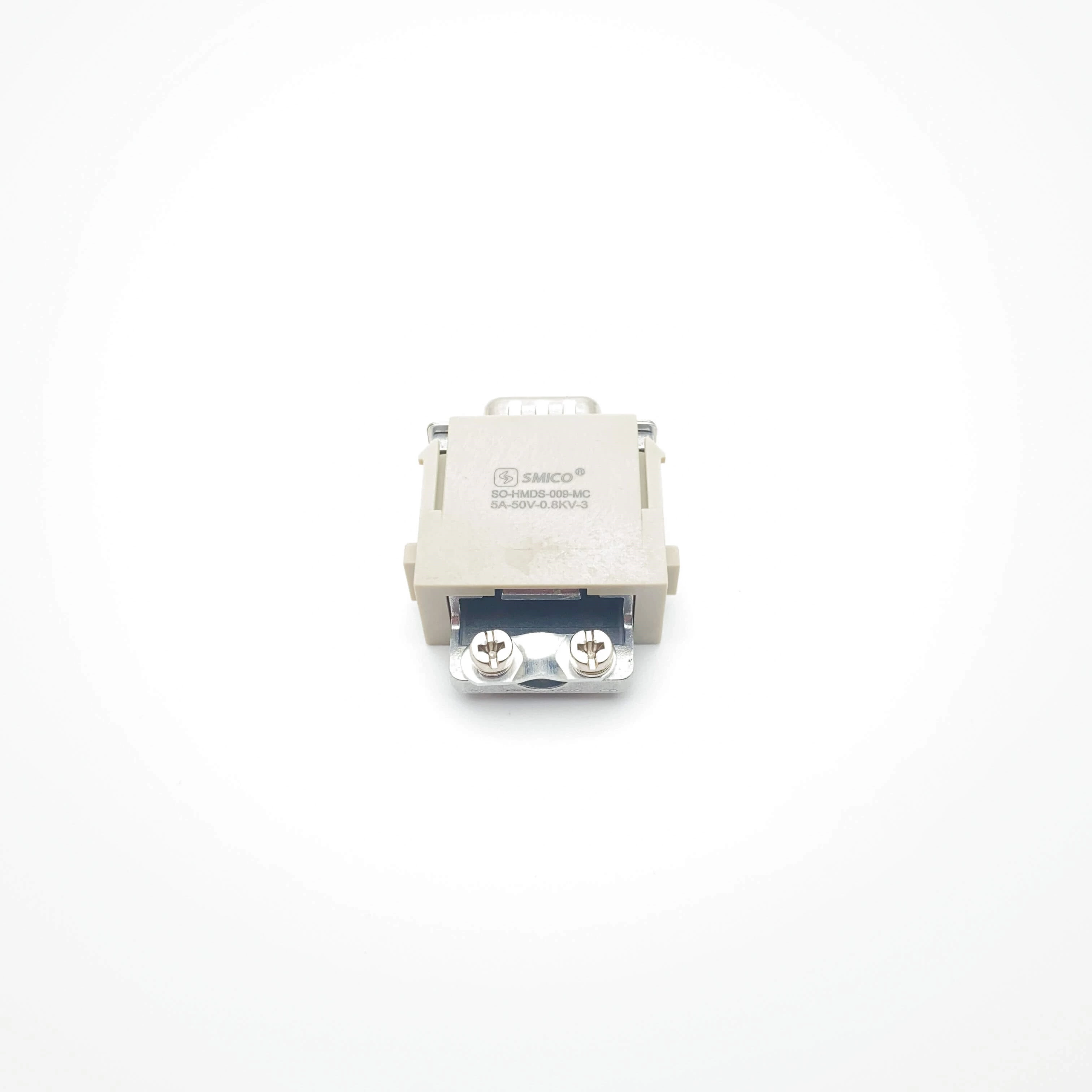

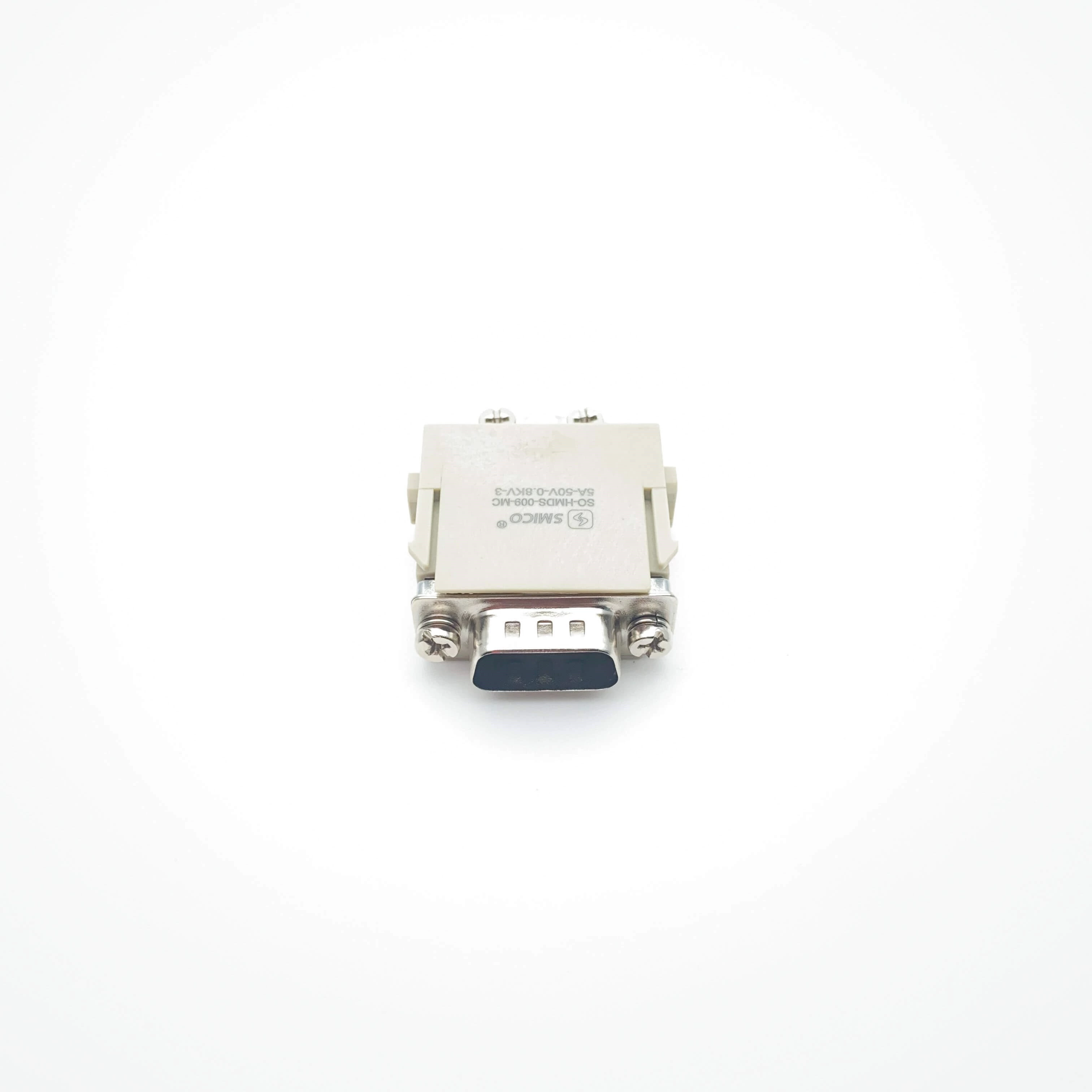

Heavy duty connector D-SUB Modular 9 Pin Connectors With Silver Plated Contacts
| Inserts | |
| Number of contacts | 9 |
| Electrical dataacc. to EN 61 984 | |
| ---Rated current | 5A |
| ---Rated voltage | 50V |
| ---Rated impulse voltage | 0.8kV |
| －Pollution degree | 3 |
| Rated voltage acc. to UL/CSA | 600V |
| Insulation resistance | ≥10^10Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life -mating cycles | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-silver plated |
| hard-gold plated | |
| Contact resistance | ≤3mΩ |
| Crimp terminal | |
| ---mm2 | 0.09-0.82mm2 |
| ---AWG | 28-18 |
