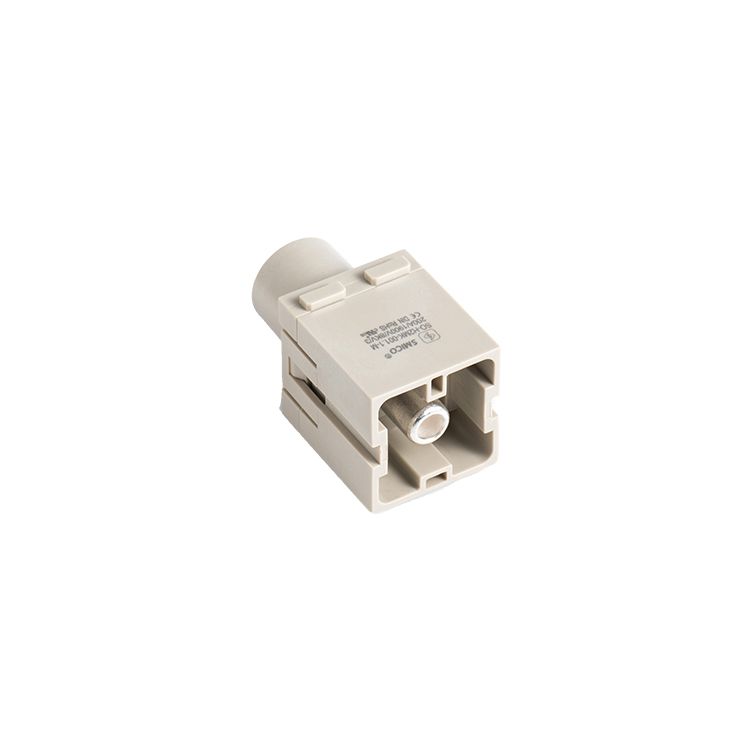

H2MK-001.1-M 200A axial module heavy duty connector 09140012663 ,09140012662
- Number of contacts:
- 1
- Rated current:
- 200A
- Part:
- SO-H2MK-001.1-M
- Packaging Details:
- Standard Export Cartons
- Delivery Time:
- Within 7 Days
- Payment Terms:
- L/C, T/T, Western Union, Paypal
- Supply Ability:
- 100000 pcs per month
- Rated voltage conductor:
- 1000V
- Product Certification:
- UL CUL CE ROHS DMT
- Order No.:
- 09140012663
Description
The advance for modular heavy duty connector :
1. Combination of different connectors to one unit
2.Shorter installation times
3.Important space saving
4.Save money for components as well as for the whole industrial site
5.Future safe design due to easy extensions
The Modular series heavy duty connector is designed for combining different transmission media in one connector. The multifaceted system of inserts, contacts, frames, hoods and housings as well as accessories fulfils individual customer requirements. The customer can choose between more than 100 different modules. These are suitable for different transmission media and cover various termination techniques. The patented hinged frame enables the configuration of all modules in the well-accepted hoods and housings.
Specification

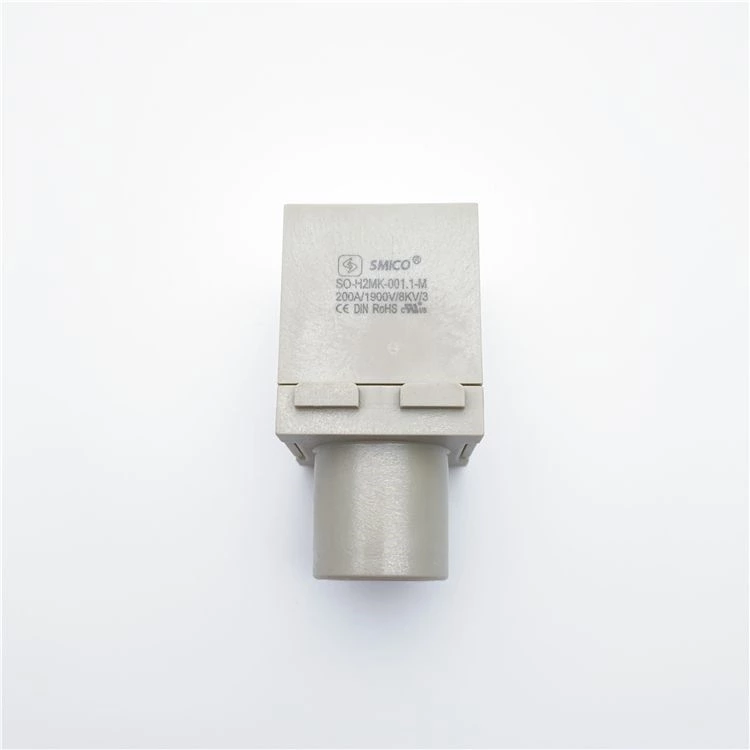

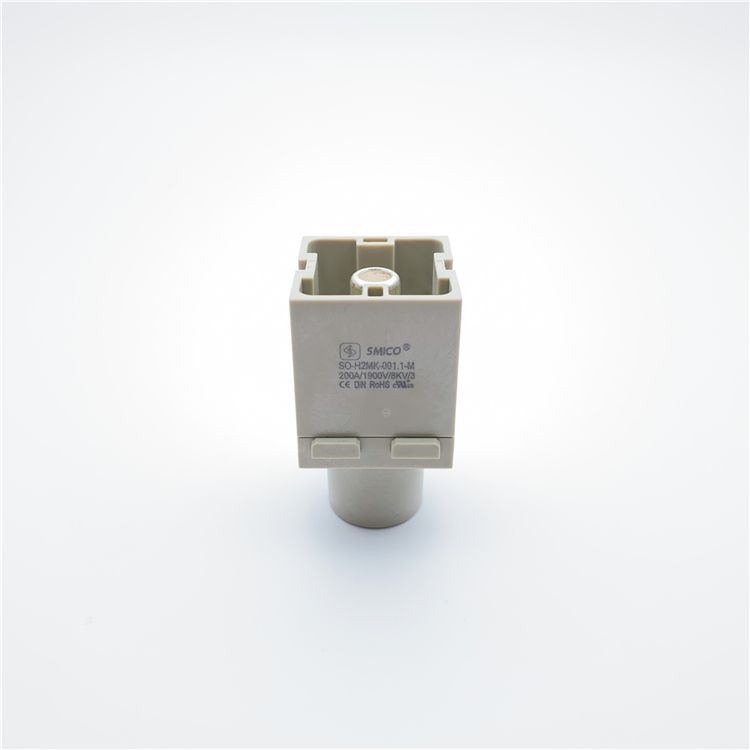

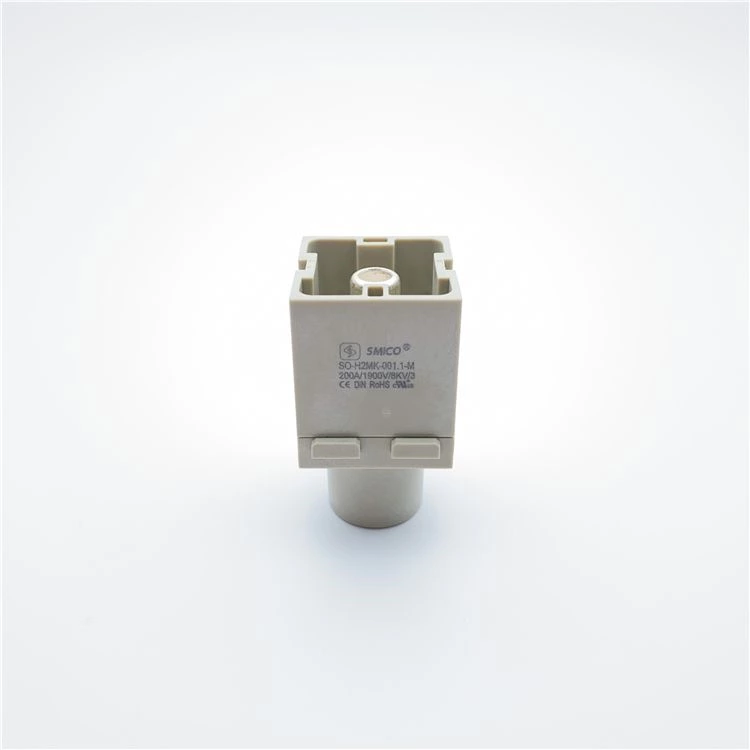

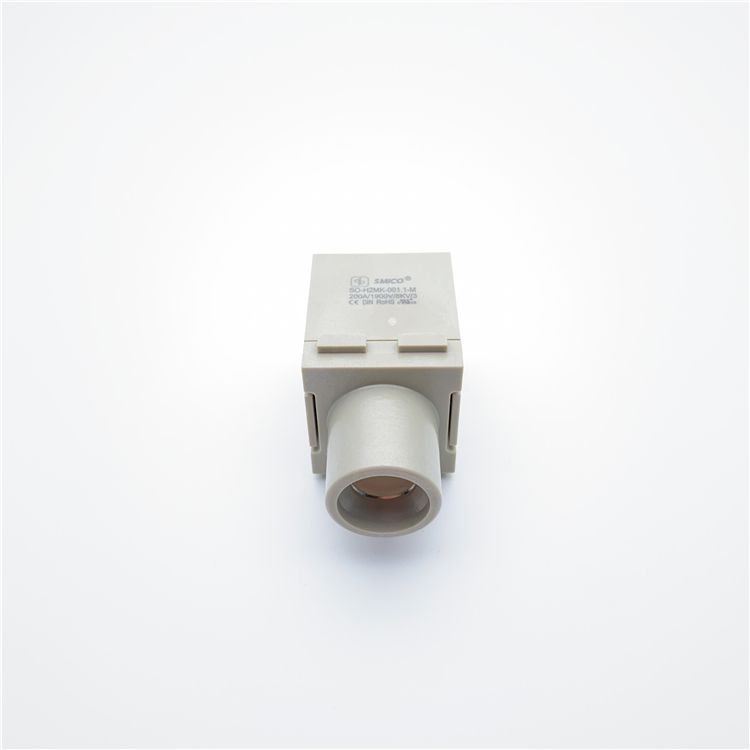

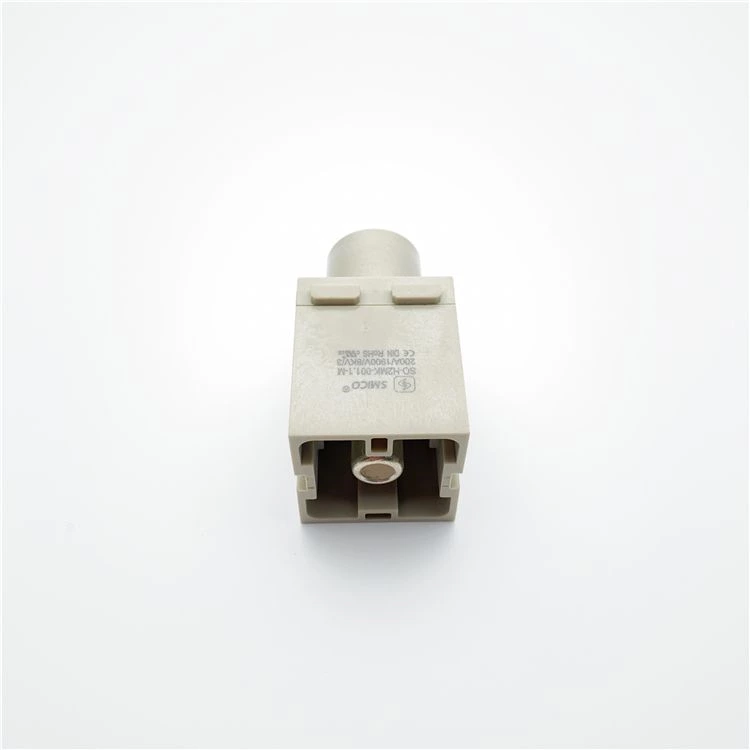

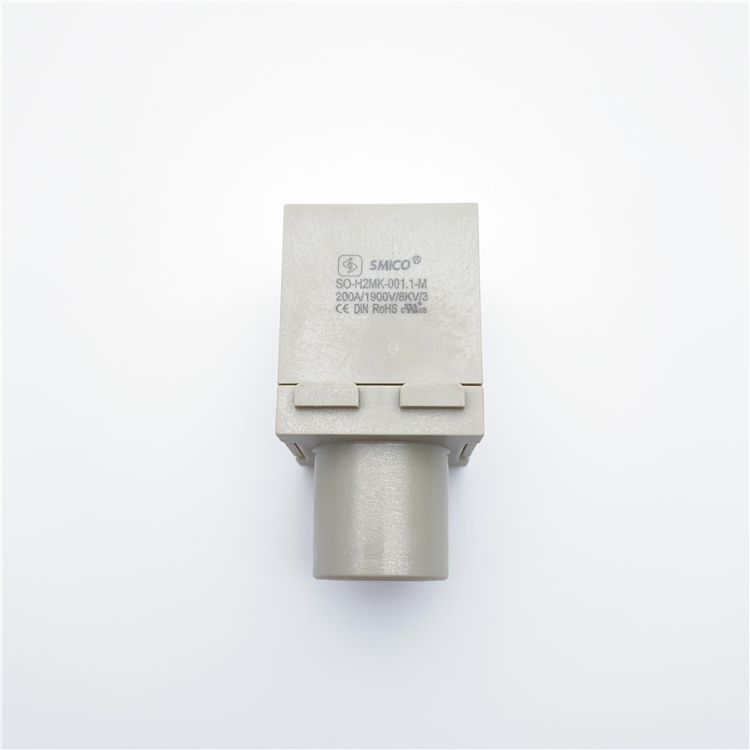

H2MK-001-M 200A axial module heavy duty connector 09140012663 ,09140012662
SMICO heavy duty connector 200A Crimp and Axial module are compatible other brand module.Contacts can be unlocked from the mating side .
1P ,200A male crew terminal:
| Inserts | |||||||||||
| Number of contacts | 1 | ||||||||||
| Electrical dataacc. to EN 61 984 | |||||||||||
| ---Rated current | 200A | ||||||||||
| ---Rated voltage | 1900V | ||||||||||
| ---Rated impulse voltage | 8KV | ||||||||||
| －Pollution degree | 3 | ||||||||||
| Rated voltage acc. to UL | 600V | ||||||||||
| Insulation resistance | ≥10^10Ω | ||||||||||
| Material | polycarbonate | ||||||||||
| Limiting temperatures | -40℃...+125℃ | ||||||||||
| Flammability acc. to UL 94 | V0 | ||||||||||
| Mechanical working life -mating cycles | ≥500 | ||||||||||
| Contacts | |||||||||||
| Material | copper alloy | ||||||||||
| Surface | hard-silver plated | ||||||||||
| Contact resistance | 0.3mΩ | ||||||||||
| For stranded wire according to IEC 60 228 Class 5 | |||||||||||
| Screw terminal | |||||||||||
| ---Wire gauge | 25-70mm2 | ||||||||||
| ---AWG | 2-0 | ||||||||||
| ---Hexagonal driver | SW 5 | ||||||||||
| ---Stripping length | 16mm | ||||||||||
| ---Tightening tourque |
|
||||||||||
Advantage
SMICO heavy duty connector
-
Compatible with other brands
-
accept OEM /ODM
-
accept customized colour : like blue ,black
-
The popular parts in stock , delivery time fast
-
Export Packing : Packing for each items respectively or packing for full one set
Location

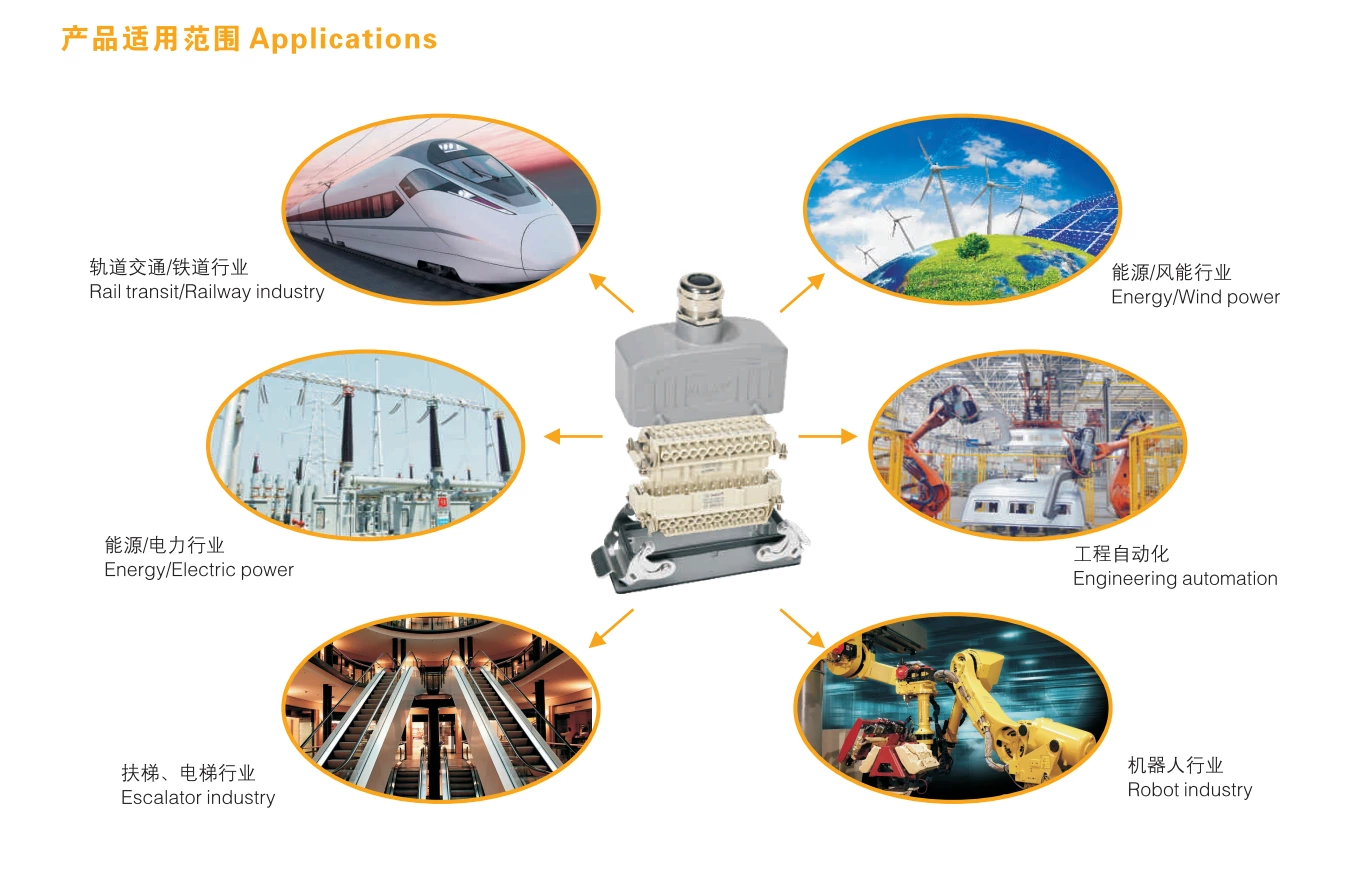

SMICO Heavy duty connectors Applications :
- Machinery
- Automation
- Robotics
- Rail
- Energy Distribution
- Renewable Energy
- Construction Machinery
- Professional Light and Sound
Packaging
Videos
Downloads
| H2MK-001.1-M 200A axial module heavy duty connector 09140012663 ,09140012662 | Download |
FAQs
01.How many employees are there in your factory?
We have more than 130 employees, including the entire production chain.
02.Whether to provide technical documents?
Sure. If there is anything unclear about the product, we will provide you with as detailed technical documents as possible.
03.Does this insert can fit with my frame?
Our module insert can fit with Harting,ILME,Weidmuller,TE and other brand.
04.How to order?
Please email us your purchase order and we will send you a quotation and a proforma invoice.
