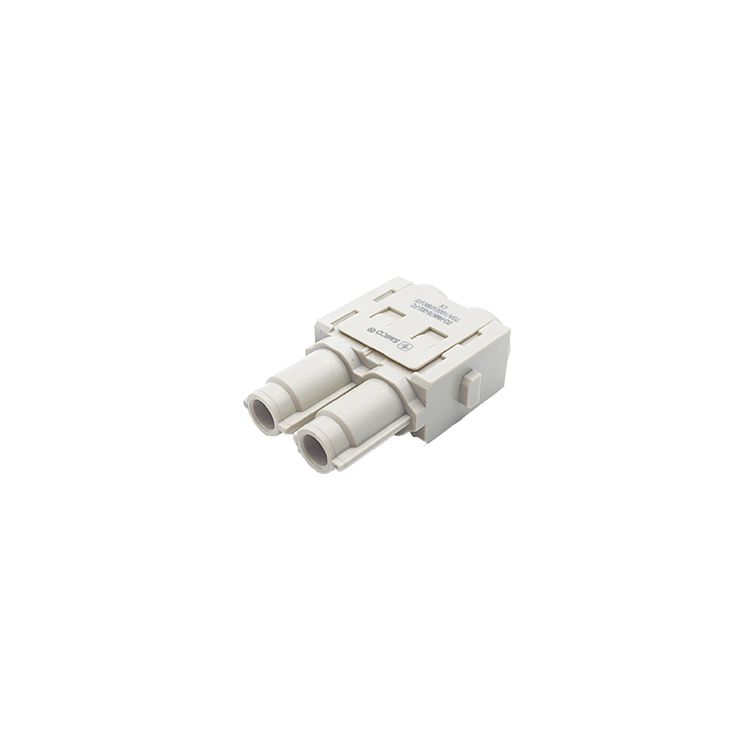

09140023141 HMK70-002-FC female 70A modular industrial HDC heavy duty connector
- Number of contacts:
- 2 pins
- Rated current:
- 40A
- Part:
- SO-HMK70-002-FC
- Packaging Details:
- Standard Export Cartons
- Delivery Time:
- Within 7 Days
- Payment Terms:
- L/C, T/T, Western Union, Paypal
- Supply Ability:
- 100000 pcs per month
- Rated voltage conductor:
- 1000V
- Product Certification:
- UL CUL CE ROHS DMT
- Order No.:
- 09140023141
Description
Heavy duty connector Hybrid module - 09140023141 HMK70-002-FC female 70A modular industrial HDC heavy duty connector - China Smico Electrical
The H-Modular series is designed for combining different transmission media in one connector. The multifaceted system of inserts,
contacts, frames, hoods and housing fulfils individual customer requirements. To continuously enable new configurations, the
H-Modular series growths constantly.
More than 50 different modules for different transmission media are available. These cover various termination techniques. The
patented H-Modular hinged frame enables the configuration of all modules in the well-accepted H hoods and housing size 6B-24B.
Further additional solutions are available, e.g. suitable docking frames for drawer units.
Individual customer requirements can be realized. Combining various transmission media in one single connector results in lower
expenditures in installation time and production downtime. Space savings and cost saving are further benefits. The easy extension
possibilities secure a further safe design
Specification

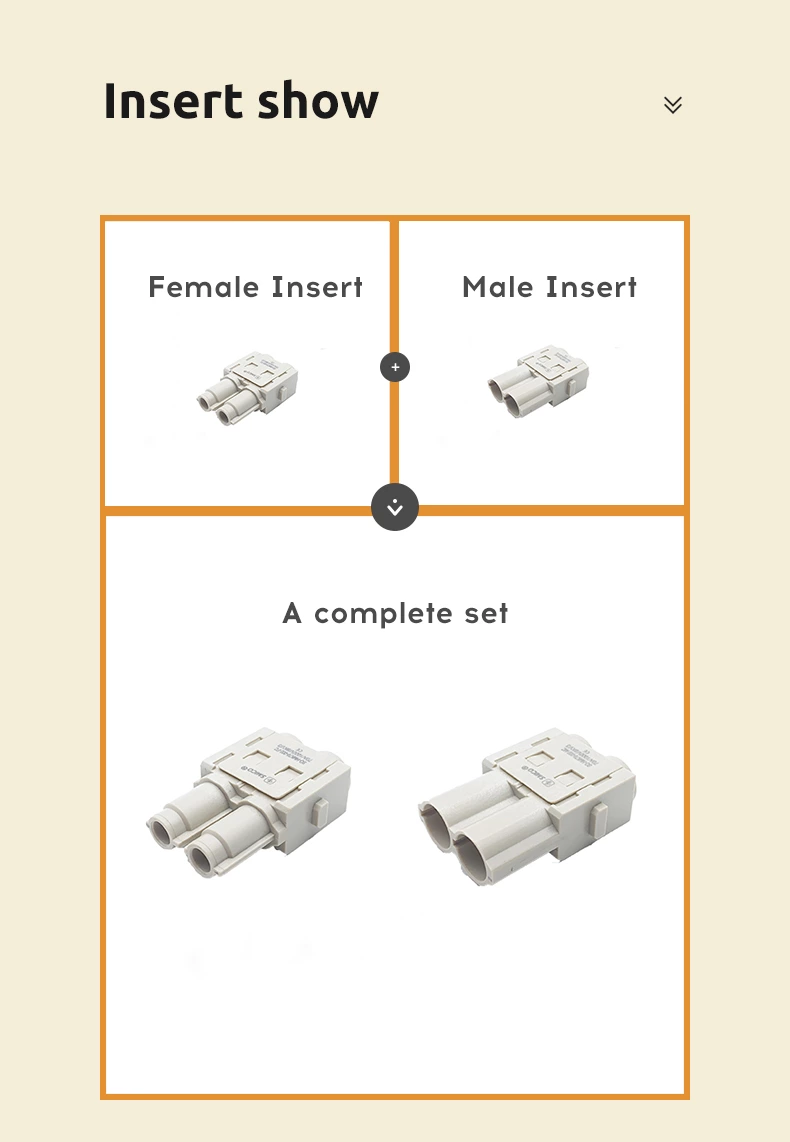

09140023141 HMK70-002-FC female 70A modular industrial HDC Hybrid module heavy duty connector
70A modular HDC Crimp termination ,use different cable range crimping contacts that you need and use crimping tool and removal tool
| Inserts | |
| Number of contacts | 2 |
| Electrical dataacc. to EN 61 984 | |
| ---Rated current | 70A |
| ---Rated voltage | 1000V |
| ---Rated impulse voltage | 8kV |
| －Pollution degree | 3 |
| Insulation resistance | ≥10^10Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life -mating cycles | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-silver plated |
| Contact resistance | ≤0.5mΩ |
| Crimp terminal | |
| ---mm2 | 10-25mm2 |
Advantage
SMICO heavy duty connector
-
Compatible with other brands
-
accept OEM /ODM
-
accept customized colour : like blue ,black
-
The popular parts in stock , delivery time fast
-
Export Packing : Packing for each items respectively or packing for full one set

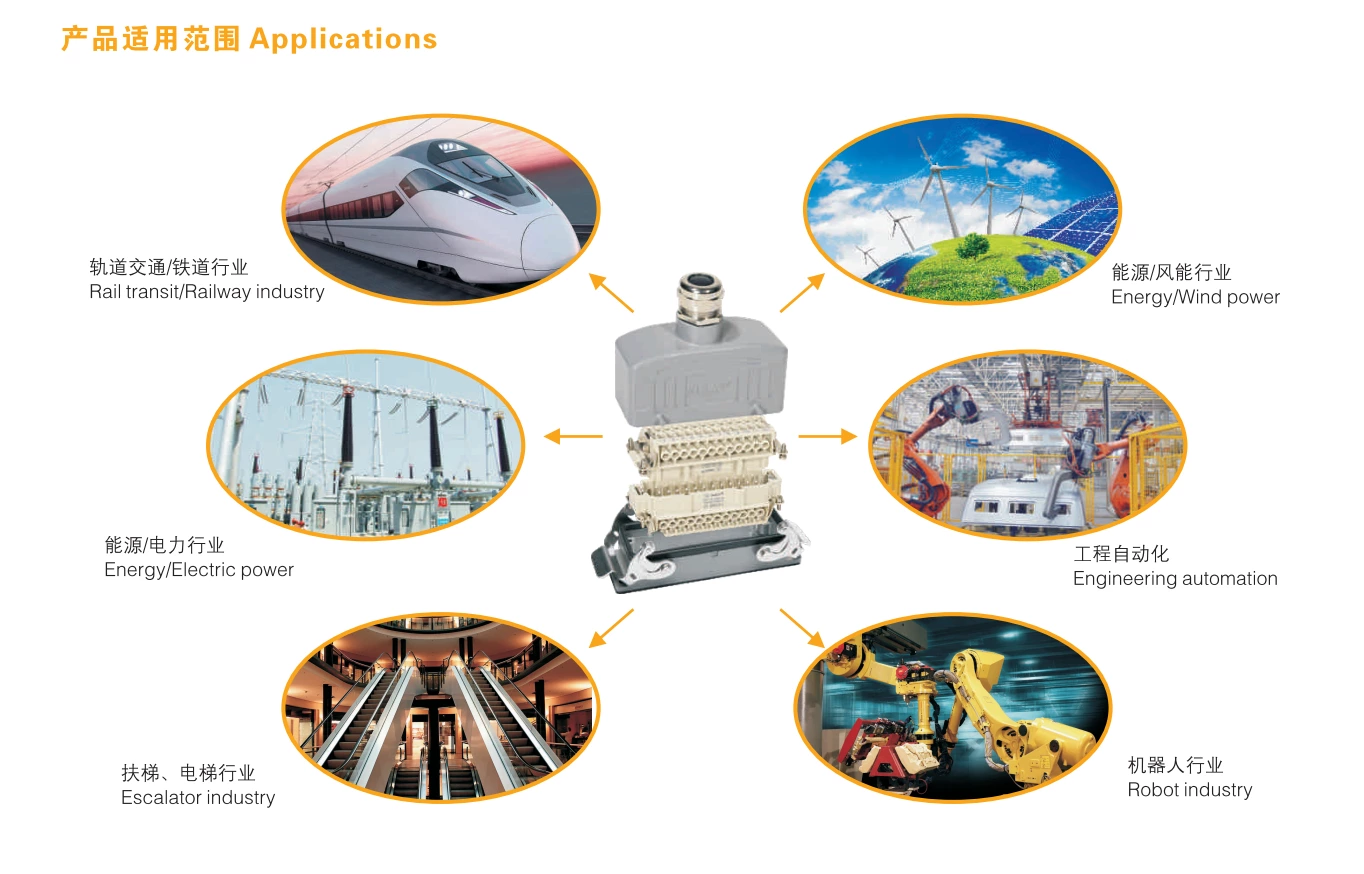

Location
- Machinery
- Automation
- Robotics
- Rail
- Energy Distribution
- Renewable Energy
- Construction Machinery
- Professional Light and Sound
Packaging
Videos
Downloads
| 09140023141 HMK70-002-FC female 70A modular industrial HDC heavy duty connector | Download |
FAQs
01.How many employees are there in your factory?
We have more than 130 employees, including the entire production chain.
02.Whether to provide technical documents?
Sure. If there is anything unclear about the product, we will provide you with as detailed technical documents as possible.
03.Does this insert can fit with my frame?
Our module insert can fit with Harting,ILME,Weidmuller,TE and other brand.
04.How to order?
Please email us your purchase order and we will send you a quotation and a proforma invoice.
