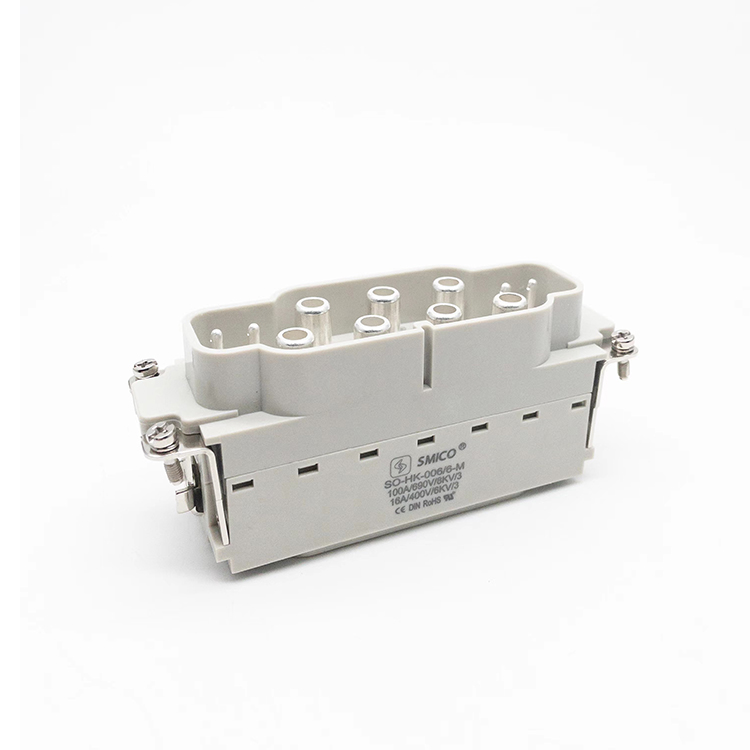

Heavy Duty Connector Aviation Plug HK series 6pins 100A and 6pins 16A male inserts HK-006/6-M
- Number of contacts:
- 6+6 pins
- Rated current:
- 100/16A
- Part:
- SO-HK-006/6-M
- Packaging Details:
- Standard Export Cartons
- Delivery Time:
- Within 7 Days
- Payment Terms:
- L/C, T/T, Western Union, Paypal
- Supply Ability:
- 100000 pcs per month
- Rated voltage conductor:
- 690V/400V
Description
Heavy Duty Connector Aviation Plug HK series 6pins 100A and 6pins 16A male inserts
12 Pin Heavy Duty Wire Connector SO-HK-006/6-M 100A/16A With Screw Terminal Inserts , We offer various heavy duty rectangular power connectors and signal connectors
6+6 Poles + PE, 100/16 A male Screw Terminal :
| Inserts | Suitable Shell:16BHood/Housing |
| Number of contacts | 6/6+PE |
| Electrical data acc. to EN 61 984 | |
| Power area | |
| ---Rated current | 100A |
| ---Rated voltage | 690V |
| ---Rated impulse voltage | 8kV |
| ---Pollution degree | 3 |
| Signal area | |
| ---Rated current | 16A |
| ---Rated voltage | 400V |
| ---Rated impulse voltage | 6kV |
| ---Pollution degree | 3 |
| Rated voltage acc. to UL/CSA | 600/300V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Power contacts | |
| ---Material | copper alloy |
| ---Surface | hard-silver plated |
| hard-gold plated | |
| ---Contact resistance | ≤0.5mΩ |
| ---Crimp terminal | |
| ------mm² | 16-35mm² |
| ------AWG | 5-2 |
| Signal contacts | |
| ---Material | copper alloy |
| ---Surface | hard-silver plated |
| hard-gold plated | |
| ---Contact resistance | ≤3mΩ |
| ---Crimp terminal | |
| ------mm² | 0.2-2.5mm² |
| ------AWG | 24-13 |
SMICO heavy duty connector can match the following interchangeable.
The hood and housing for H16B .
| Suppier | Plug insert | Socket insert |
| SMICO | SO-HK-006/36-MC | SO-HK-006/36-MC |
| H | 09380423101 | 09380423101 |
| ILME | CXM 6/36 | CXF 6/36 |
| TE | T2120422101-000 | T2120422201-000 |
| LAPP EPIC | ||
| PHOENIX | ||
| MOLEX | ||
| WEIDMULLER | HDC S6/36 MC | HDC S6/36 FC |
| WIELAND | 72.713.4253.0 | 72.703.4253.0 |
| AMPHENOL |
SMICO heavy duty connector
-
Compatible with other brands
-
accept OEM /ODM
-
accept customized colour : like blue ,black
-
The popular parts in stock , delivery time fast
-
Export Packing : Packing for each items respectively or packing for full one set
-
Without MOQ except the customized type

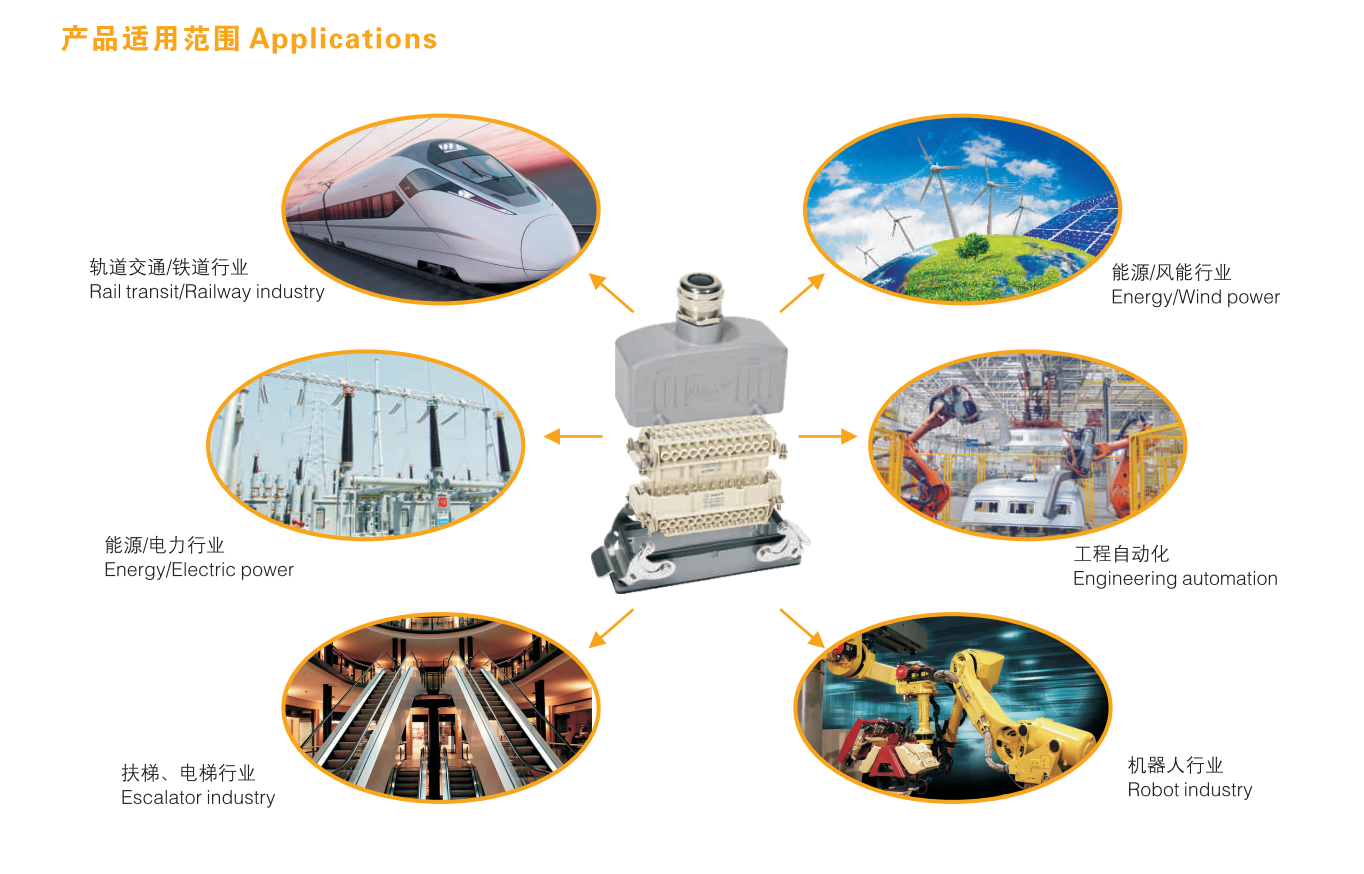

SMICO Heavy duty connectors Applications :
- Machinery
- Automation
- Robotics
- Rail
- Energy Distribution
- Renewable Energy
- Construction Machinery
- Professional Light and Sound
What's SMICO heavy duty connectors connect way :
SMICO connectors has crimp,cage and screw termination, termination available with wire protection . We offer various heavy duty rectangular power connectors and signal connectors . Quick response.
