Rectangular Connector HE-010-M 16A 10pin 09330102601
- Number of contacts:
- 10
- Rated current:
- 16A
- Part:
- SO-HE-010-M
- Packaging Details:
- Standard Export Cartons
- Delivery Time:
- Within 7 Days
- Payment Terms:
- L/C, T/T, Western Union, Paypal
- Supply Ability:
- 100000 pcs per month
- Rated voltage conductor:
- 500V
- Product Certification:
- UL CUL CE ROHS DMT IEC-61984
- Order No.:
- 09330102601
Description
Specification
Rectangular Connector HE-010 16A 10pin 09330102601
Rectangular connectors can be seen in many places. This is also a very common small part in our lives,
but rectangular connectors have a very important role.

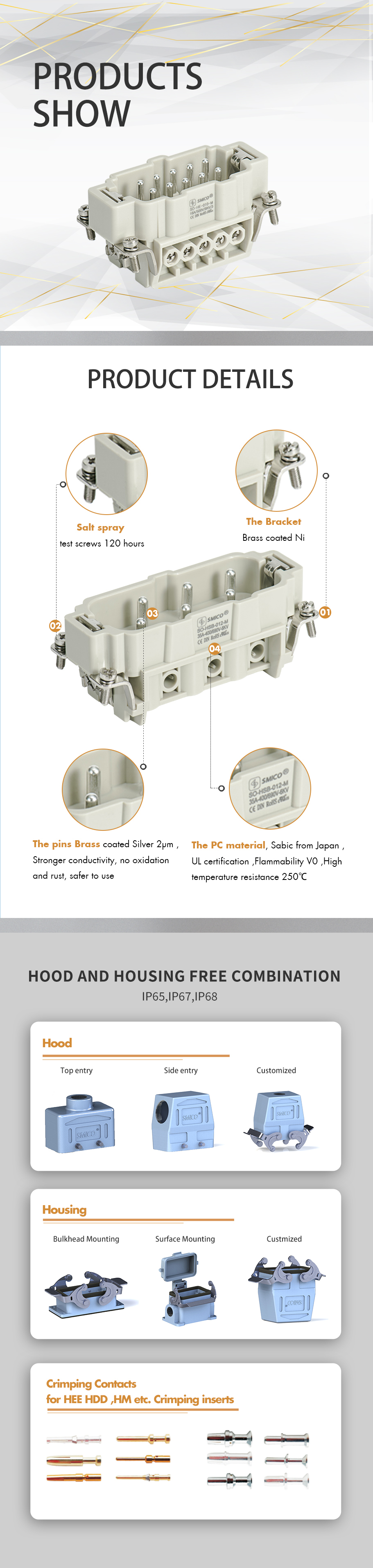

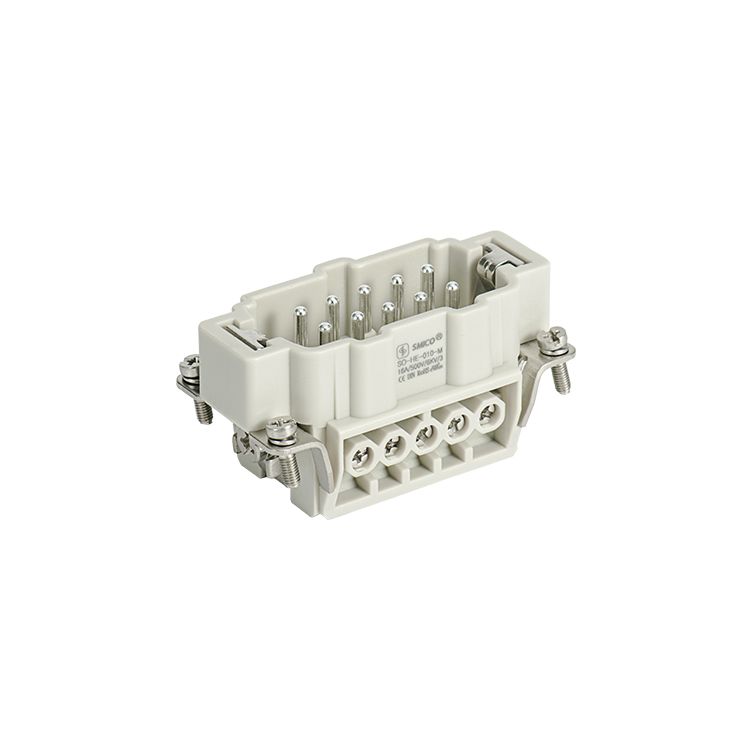

10 Poles+PE,16A,screw Male insert
| Inserts | Suitable Shell:10BHood/Housing |
| Number of contacts | 10 |
| Electrical data acc. to EN 61 984 | |
| ---Rated current | 16A |
| ---Rated voltage conductor | 500V |
| ---Rated impulse voltage | 6kV |
| ---Pollution degree | 3 |
| ---Pollution degree 2 also | 16A 400/690V 6kV 2 |
| Rated voltage acc. to UL/CSA | 600V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-gold plated |
| hard-silver plated | |
| Contact resistance | ≤1mΩ |
| Screw terminal | |
| ---Wrie gauge | 0.14-2.5mm2 |
| ---AWG | 26-14 |
| ---Tightening/Test torque | 0.5N·m |
| ---Stripping length | 7.0mm |

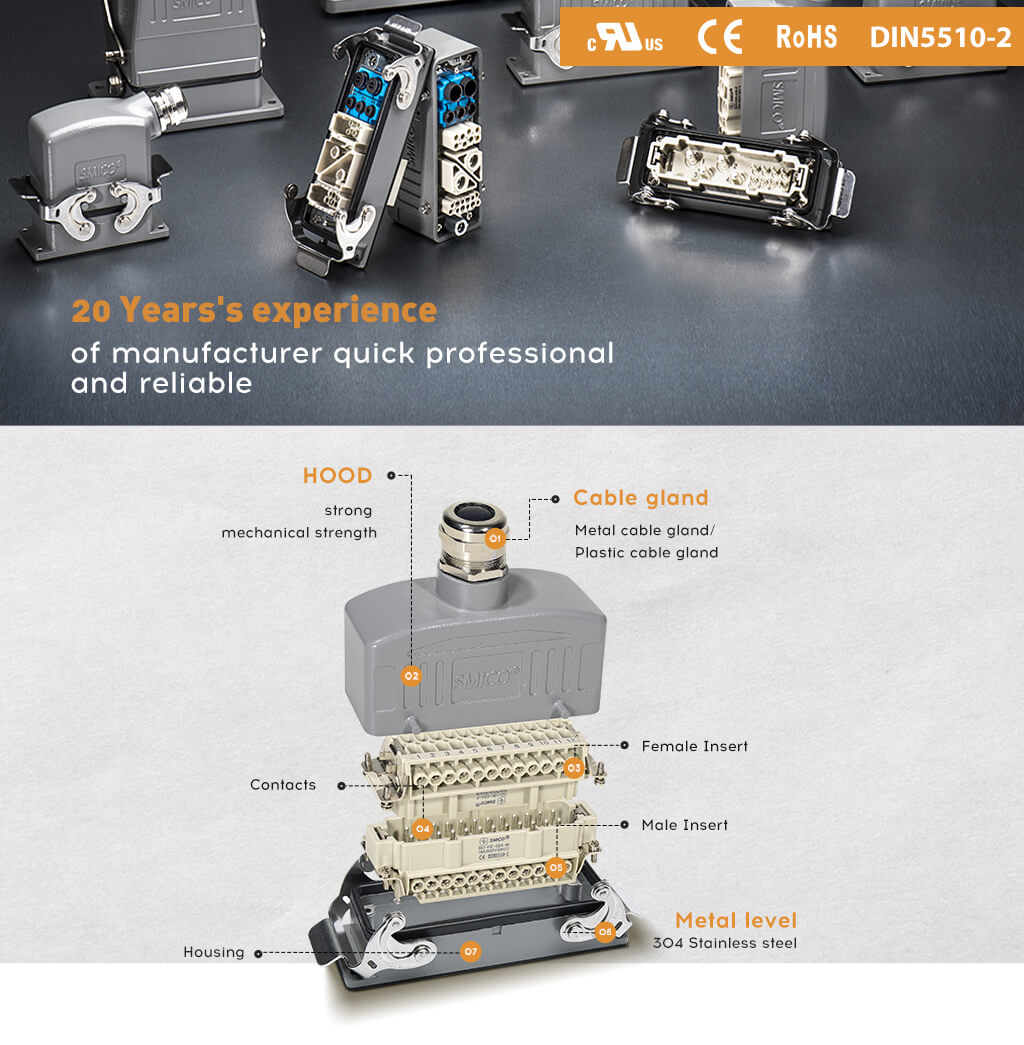

SMICO heavy duty connector can match the following interchangeable.
The hood and housing for H10B .
| Suppier | Plug insert | Socket insert |
| SMICO | SO-HE-010-M | SO-HE-010-F |
| H | 09330102601 | 09330102701 |
| ILME | CNEM 10 T | CNEF 10 T |
| TE | ||
| LAPP EPIC | 10.1920 | 10.1930 |
| PHOENIX | 1648173 | 1648186 |
| MOLEX | ||
| WEIDMULLER | HDC HE 10 MS | HDC HE 10 FS |
| WIELAND | 70.310.1002.0 | 70.300.1002.0 |
| AMPHENOL |
Rectangular connectors can be divided into several types according to the different shells. The first is the aluminum cooler shell.
The connectors of this shell have products with various pitches. In addition to our common 9.15 and other commonly used pitch products,
there are 1.27MM pitch products. There is also a product with a full-speed shell, which also has a variety of pitches to choose from.
The same is true for the extended shell, but the connector of this shell can also be developed in a targeted manner according to the needs of the customer, which provides customers with considerable convenience. In today's production and life, we should choose good and excellent products to serve us better.
