HE-016-MC Heavy Duty Connectors industrial connector crimp terminal 09330162602
- Number of contacts:
- 16
- Rated current:
- 16A
- Part:
- SO-HE-016-MC
- Packaging Details:
- Standard Export Cartons
- Delivery Time:
- Within 7 Days
- Payment Terms:
- L/C, T/T, Western Union, Paypal
- Supply Ability:
- 100000 pcs per month
- Rated voltage conductor:
- 500V
- Product Certification:
- UL CUL CE ROHS DMT IEC-61984
- Order No.:
- 09330162602
HE-016-MC Heavy Duty Connectors industrial connector crimp terminal 09330162602
HE-016-MC Heavy Duty Connectors industrial connector crimp terminal 09330162602 16pin , HE-016-MC can instead of industrial plug socket , round plug socket , aviation plug socket and use in more envirnment
The HDC portfolio consists of:
- Hoods, housings and bases: available in different protection degrees IP65, IP67, IP68 and IP69k
- Contact systems: ranging from 5A to 650A in screw, crimp and cage clamp termination
- Inserts: available in up to 216 pins in one connector for crimp, screw termination or cage clamp

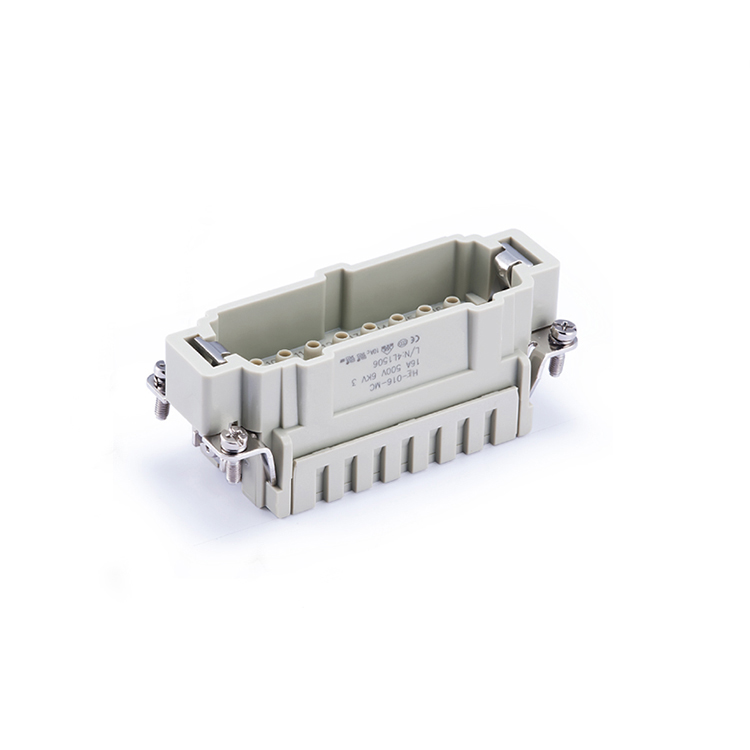

16 Poles+PE,16A,screw Male insert
| Inserts | Suitable Shell:16BHood/Housing |
| Number of contacts | 16 |
| Electrical data acc. to EN 61 984 | |
| ---Rated current | 16A |
| ---Rated voltage conductor | 500V |
| ---Rated impulse voltage | 6kV |
| ---Pollution degree | 3 |
| ---Pollution degree 2 also | 16A 400/690V 6kV 2 |
| Rated voltage acc. to UL/CSA | 600V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-gold plated |
| hard-silver plated | |
| Contact resistance | ≤1mΩ |
| Screw terminal | |
| ---Wrie gauge | 0.14-2.5mm2 |
| ---AWG | 26-14 |
| ---Tightening/Test torque | 0.5N·m |
| ---Stripping length | 7.0mm |
SMICO heavy duty connector can match the following interchangeable.
The hood and housing for H16B .
Applications
- Machinery
- Automation
- Robotics
- Rail
- Energy Distribution
- Renewable Energy
- Construction Machinery
- Professional Light and Sound
