HE-016-F Heavy Duty 16 Pin Connectors 16A 500V industrial connector screw terminal 09330162701
- Number of contacts:
- 16
- Rated current:
- 16A
- Part:
- SO-HE-016-F
- Packaging Details:
- Standard Export Cartons
- Delivery Time:
- Within 7 Days
- Payment Terms:
- L/C, T/T, Western Union, Paypal
- Supply Ability:
- 100000 pcs per month
- Rated voltage conductor:
- 500V
- Product Certification:
- UL CUL CE ROHS DMT IEC-61984
- Order No.:
- 09330162701
Description
SMICO provides complete portfolio solution that can easily satisfy the various connection and space requirement in machinery application.
• HMN
-
— Modular design
-
— Easy for interface configuration
-
— Integrated solution to transmit power, signal, and data
• HE/HA/HD Series
-
— Wide range of different versions regarding Pin quantities, connector size, capability for current and voltage requirements
-
— Wide range of contacts available with different plating
-
— Hoods and Housings with Coating or EMC protection to fit various solutions requirements
Specification

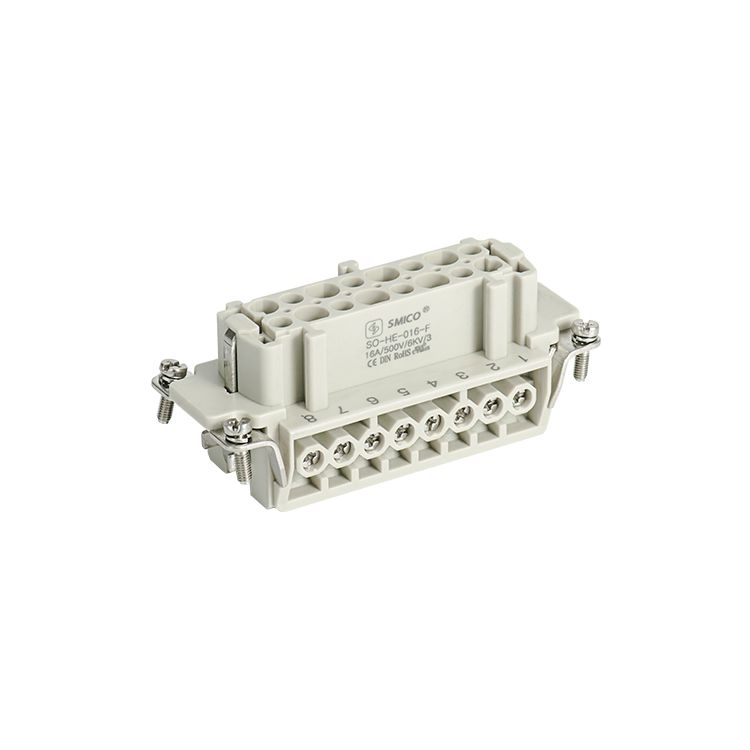

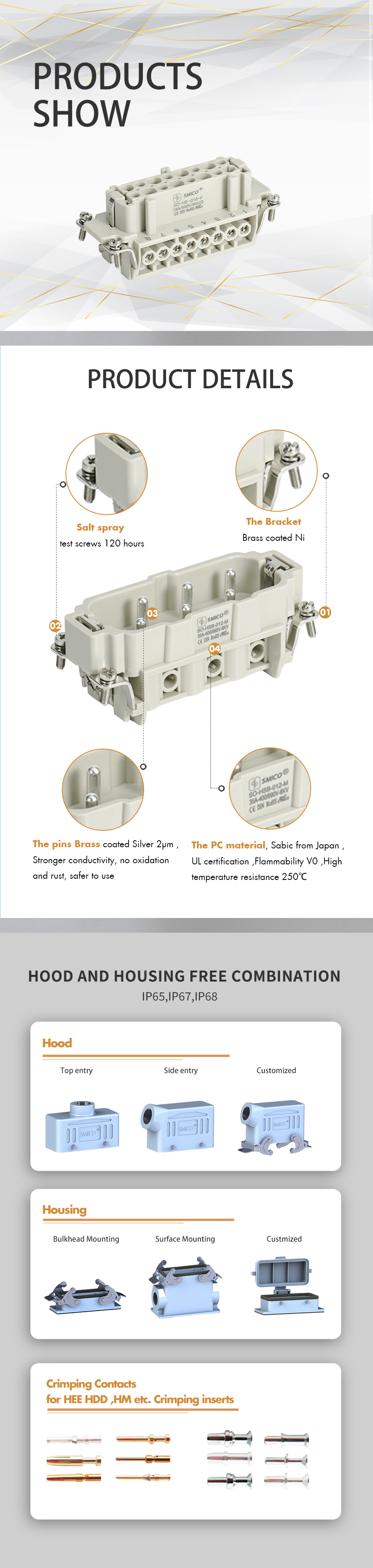

HE 016 F Heavy Duty 16 Pin Connectors 16A 500V industrial connector screw terminal
16 Poles+PE,16A,screw Female insert
| Inserts | Suitable Shell:16BHood/Housing |
| Number of contacts | 16 |
| Electrical data acc. to EN 61 984 | |
| ---Rated current | 16A |
| ---Rated voltage conductor | 500V |
| ---Rated impulse voltage | 6kV |
| ---Pollution degree | 3 |
| ---Pollution degree 2 also | 16A 400/690V 6kV 2 |
| Rated voltage acc. to UL/CSA | 600V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-gold plated |
| hard-silver plated | |
| Contact resistance | ≤1mΩ |
| Screw terminal | |
| ---Wrie gauge | 0.14-2.5mm2 |
| ---AWG | 26-14 |
| ---Tightening/Test torque | 0.5N·m |
| ---Stripping length | 7.0mm |

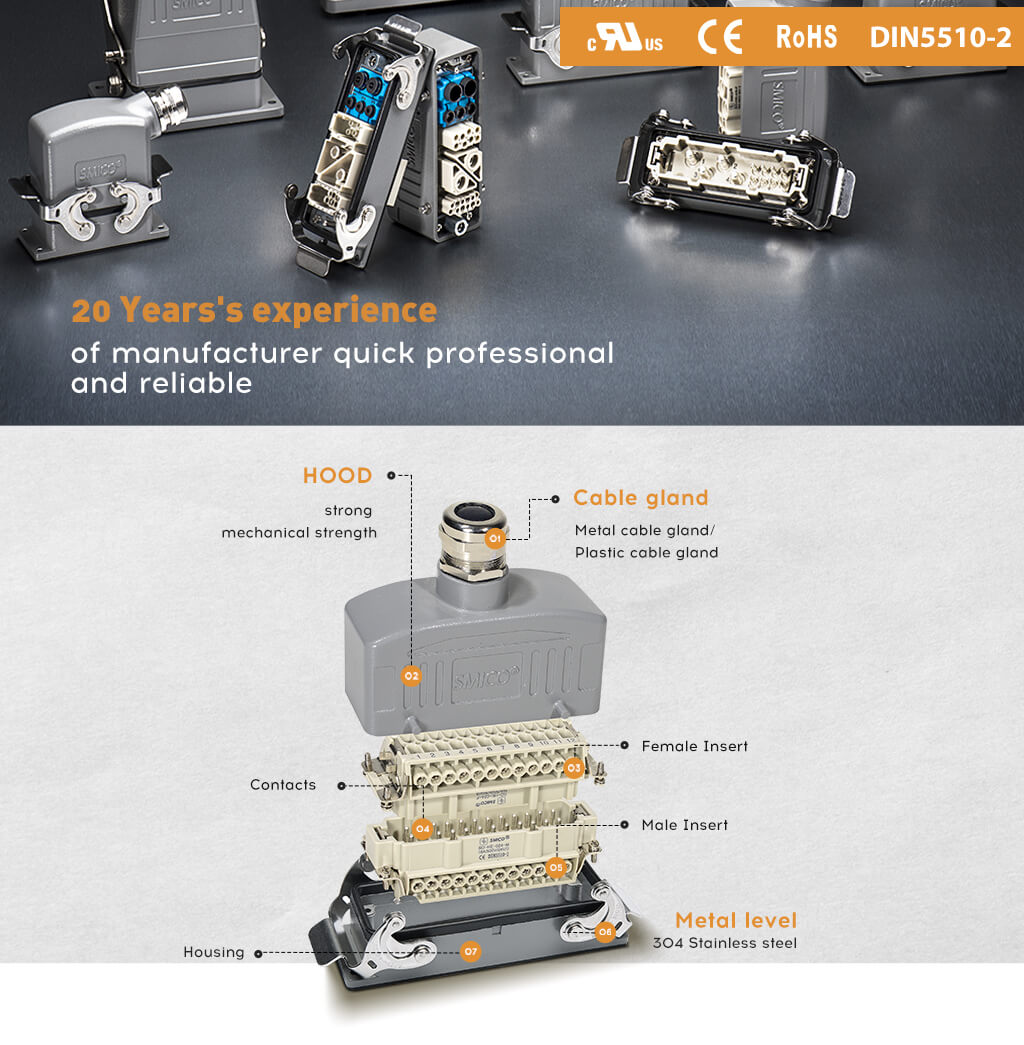

SMICO heavy duty connector can match the following interchangeable.
The hood and housing for H16B .
| Suppier | Plug insert | Socket insert |
| SMICO | SO-HE-016-M | SO-HE-016-F |
| HARTING | 09330162601 | 09330162701 |
| ILME | CNEM 16 T | CNEF 16 T |
| TE | ||
| LAPP EPIC | 10.1940 | 10.1950 |
| PHOENIX | 1648238 | 1648241 |
| MOLEX | ||
| WEIDMULLER | HDC HE 16 MS | HDC HE 16 FS |
| WIELAND | 70.310.1602.0 | 70.300.1602.0 |
| AMPHENOL |
Advantage
SMICO heavy duty connector
-
Compatible with other brands
-
accept OEM /ODM
-
accept customized colour : like blue ,black
-
The popular parts in stock , delivery time fast
-
Export Packing : Packing for each items respectively or packing for full one set
