Rectangle socket insert 128 pins for heavy duty connectors 09210643101 HD-128-FC
- Number of contacts:
- 128
- Rated current:
- 10A
- Part:
- SO-HD-128-FC
- Packaging Details:
- Standard Export Cartons
- Delivery Time:
- Within 7 Days
- Payment Terms:
- L/C, T/T, Western Union, Paypal
- Supply Ability:
- 100000 pcs per month
- Rated voltage conductor:
- 250V
- Product Certification:
- UL CUL CE ROHS DMT
- Order No.:
- 09210643101
Description
Heavy-duty connector purchase steps
Connectors are the most widely used electronic equipment in the industry, serving various "connection" tasks. But in some special harsh industrial environments such as dust, humidity, and mechanical stress, we need stronger, more durable, and more resistant connectors to connect the "interfaces" of wires and equipment. At this time, you need the "special forces" in the connector-the heavy-duty connector.
So here comes the question:
Generally, everyone will pick a connector, but how to choose a heavy-duty connector?
The first step is to determine the connection method of the connector.
The connection methods of heavy-duty connectors include screws, shrapnel, in-line, cold press, and coaxial screws.
The second step is to determine the number of loops, voltage and current.
The third step is to determine the cable connector.
Step 4, confirm the shell type.
The sturdy housing helps the connector to withstand frost and vibration.
Optional Tips: Heavy-duty connectors with different protective shells, dimensions, and cable entry methods are all different.
Specification

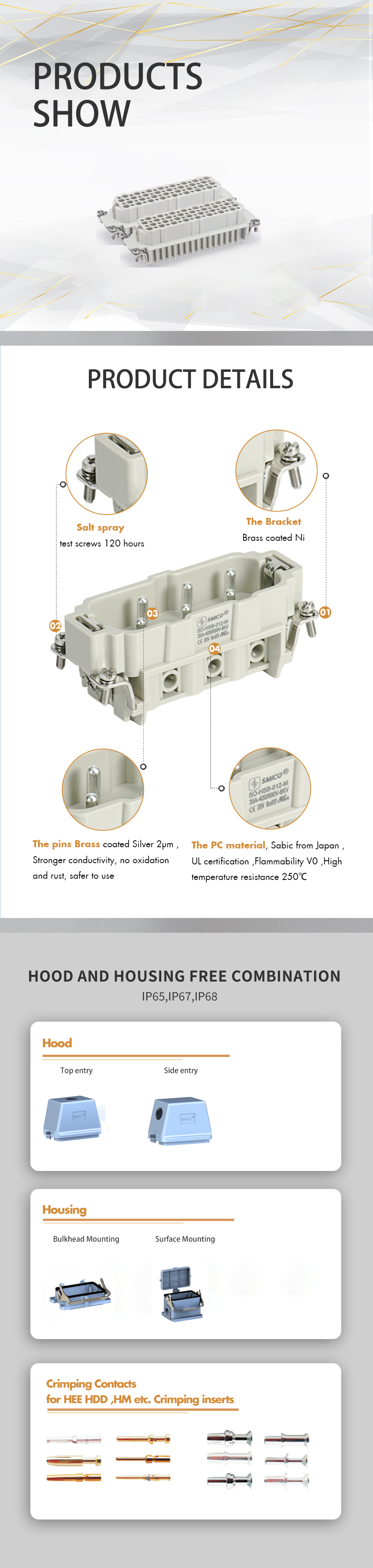

Rectangle socket insert 128 pins for heavy duty connectors
Rectangle socket insert 128 pins for heavy duty connectors connect the wire at or less 10A ,250V . for the machine or equipment that used .
128Poles + PE, 10A Female Crimping terminal :
| Inserts | Suitable Shell:48BHood/Housing |
| Number of contacts | 128 |
| Electrical data acc. to EN 61 984 | |
| ---Rated current | 10A |
| ---Rated voltage conductor | 250V |
| ---Rated impulse voltage | 4kV |
| ---Pollution degree | 3 |
| ---Pollution degree 2 also | 10A 230/400V 4kV 2 |
| ---Rated voltage acc. to UL/CSA | 600V |
| ---Rated voltage for wrap terminal acc. to CSA | 2A 30V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-gold plated |
| hard-silver plated | |
| Contact resistance | ≤3mΩ |
| Crimp terminal | |
| ---Wrie gauge | 0.14-2.5mm² |
| ---AWG | 26-14 |
SMICO heavy duty connector can match the following interchangeable.
The hood and housing for H48B .
| Suppier | Plug insert | Socket insert |
| SMICO | SO-HD-064-MC | SO-064-FC |
| H | 09210643001 | 09210643101 |
| ILME | CDM 64 | CDF 64 |
| TE | ||
| LAPP EPIC | 11.2720 | 11.2730 |
| PHOENIX | 1584431 | 1584444 |
| MOLEX | ||
| WEIDMULLER | HDC HD 64 MC | HDC HD 64 FC |
| WIELAND | 73.700.6458.0 | 73.710.6458.0 |
| AMPHENOL |
Advantage
SMICO heavy duty connector
-
Compatible with other brands
-
accept OEM /ODM
-
accept customized colour : like blue ,black
-
The popular parts in stock , delivery time fast
-
Export Packing : Packing for each items respectively or packing for full one set
Location
- Machinery
- Automation
- Robotics
- Rail
- Energy Distribution
- Renewable Energy
- Construction Machinery
- Professional Light and Sound
Packaging
Videos
Downloads
| Rectangle socket insert 128 pins for heavy duty connectors 09210643101 HD-128-FC | Download |
FAQs
01.How many employees are there in your factory?
We have more than 130 employees, including the entire production chain.
02.Whether to provide technical documents?
Sure. If there is anything unclear about the product, we will provide you with as detailed technical documents as possible.
03.Does this insert can fit with my frame?
Our module insert can fit with Harting,ILME,Weidmuller,TE and other brand.
04.How to order?
Please email us your purchase order and we will send you a quotation and a proforma invoice.
