HD 7 Pin Heavy Duty Multi Female Connector industrial connector 09210073131 HD-007-FC
- Number of contacts:
- 7
- Rated current:
- 10A
- Part:
- SO-HD-007-FC
- Packaging Details:
- Standard Export Cartons
- Delivery Time:
- Within 7 Days
- Payment Terms:
- L/C, T/T, Western Union, Paypal
- Supply Ability:
- 100000 pcs per month
- Rated voltage conductor:
- 250v
- Product Certification:
- UL CUL CE ROHS DMT
- Order No.:
- 09210073131
Description
Specification

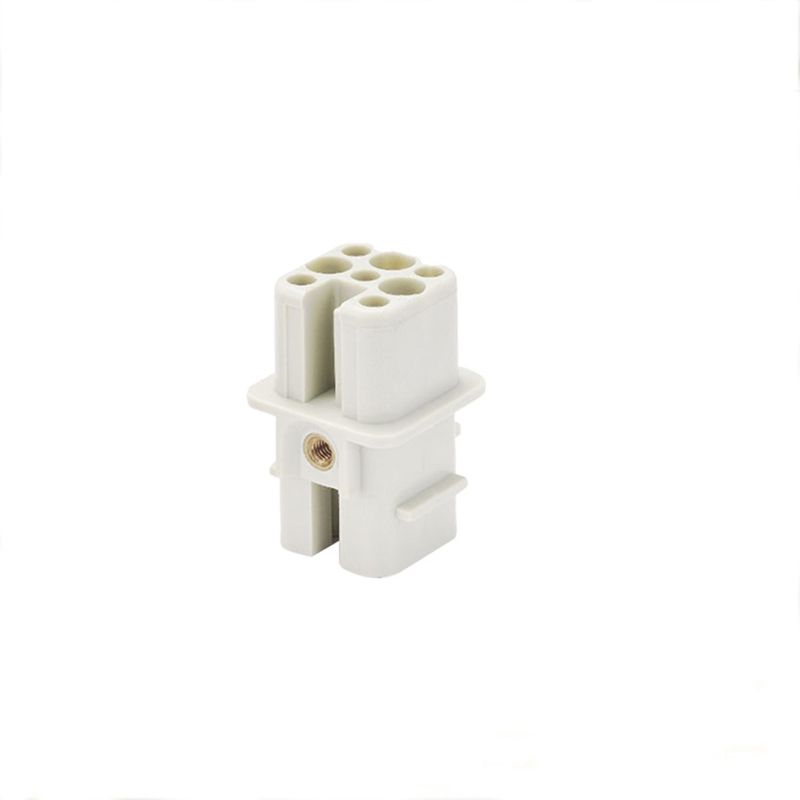

HD 7 Pin Heavy Duty Multi Female Connector industrial connector
| Inserts | Suitable Shell:3AHood/Housing |
| Number of contacts | 7 |
| Electrical data acc. to EN 61 984 | |
| ---Rated current | 10A |
| ---Rated voltage conductor | 250V |
| ---Rated impulse voltage | 4kV |
| ---Pollution degree | 3 |
| ---Rated voltage acc. to UL/CSA | 600V |
| Insulation resistance | ≥10^10Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-gold plated |
| hard-silver plated | |
| Contact resistance | ≤3mΩ |
| Crimp terminal | |
| ---Wrie gauge | 0.14-2.5mm² |
| ---AWG | 26-14 |
SMICO heavy duty connector can match the following interchangeable.
The hood and housing for H3A .
| Suppier | Plug insert | Socket insert |
| SMICO | SO-HD-007-MC | SO-007-FC |
| H | '09210073031 | '09210073131 |
| ILME | CDM 07 | CDF 07 |
| TE | ||
| LAPP EPIC | 11.2505 | 11.2515 |
| PHOENIX | ||
| MOLEX | ||
| WEIDMULLER | HDC HD 7 MC | HDC HD 7 FC |
| WIELAND | 73.710.0753.0 | 73.700.0753.0 |
| AMPHENOL |
There are many types of heavy-duty connectors, such as circular plug-ins, rectangular heavy-duty connectors, etc., but the manufacturing process is still the same, generally divided into four stages: stamping, electroplating, spraying, and assembly.
Advantage
SMICO heavy duty connector
-
Compatible with other brands
-
accept OEM /ODM
-
accept customized colour : like blue ,black
-
The popular parts in stock , delivery time fast
-
Export Packing : Packing for each items respectively or packing for full one set
Location
- Machinery
- Automation
- Robotics
- Rail
- Energy Distribution
- Renewable Energy
- Construction Machinery
- Professional Light and Sound
Packaging
Videos
Downloads
| HD 7 Pin Heavy Duty Multi Female Connector industrial connector 09210073131 HD-007-FC | Download |
FAQs
01.How many employees are there in your factory?
We have more than 130 employees, including the entire production chain.
02.Whether to provide technical documents?
Sure. If there is anything unclear about the product, we will provide you with as detailed technical documents as possible.
03.Does this insert can fit with my frame?
Our module insert can fit with Harting,ILME,Weidmuller,TE and other brand.
04.How to order?
Please email us your purchase order and we will send you a quotation and a proforma invoice.
