64 Pin Heavy Duty Connector,Waterproof Industrial Rectangular Connectors 09210643001 HD-064-MC
- Number of contacts:
- 64 pins
- Rated current:
- 10A
- Part:
- SO-HD-064-MC
- Packaging Details:
- Standard Export Cartons
- Delivery Time:
- Within 7 Days
- Payment Terms:
- L/C, T/T, Western Union, Paypal
- Supply Ability:
- 100000 pcs per month
- Rated voltage conductor:
- 250V
- Product Certification:
- UL CUL CE ROHS DMT
- Order No.:
- 09210643001
Description
Specification

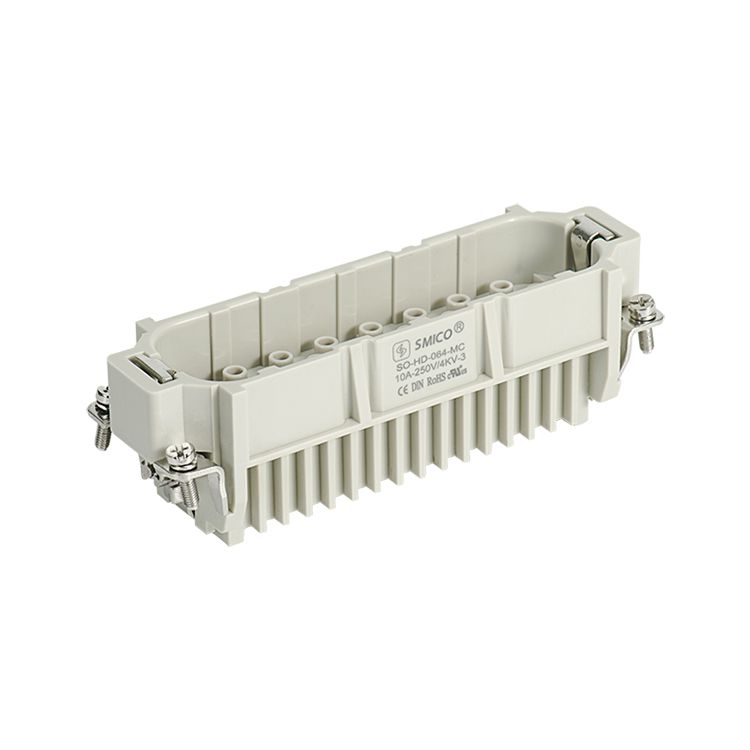

64 Pin Heavy Duty Connector,Waterproof Industrial Rectangular Connectors
64Poles + PE, 10 A Male crimping Terminal :
| Inserts | Suitable Shell:24BHood/Housing |
| Number of contacts | 64 |
| Electrical data acc. to EN 61 984 | |
| ---Rated current | 10A |
| ---Rated voltage conductor | 250V |
| ---Rated impulse voltage | 4kV |
| ---Pollution degree | 3 |
| ---Pollution degree 2 also | 10A 230/400V 4kV 2 |
| ---Rated voltage acc. to UL/CSA | 600V |
| ---Rated voltage for wrap terminal acc. to CSA | 2A 30V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-gold plated |
| hard-silver plated | |
| Contact resistance | ≤3mΩ |
| Crimp terminal | |
| ---Wrie gauge | 0.14-2.5mm² |
| ---AWG | 26-14 |
SMICO heavy duty connector can match the following interchangeable.
The hood and housing for H24B .
| Suppier | Plug insert | Socket insert |
| SMICO | SO-HD-064-MC | SO-064-FC |
| H | 09210643001 | 09210643101 |
| ILME | CDM 64 | CDF 64 |
| TE | ||
| LAPP EPIC | 11.2720 | 11.2730 |
| PHOENIX | 1584431 | 1584444 |
| MOLEX | ||
| WEIDMULLER | HDC HD 64 MC | HDC HD 64 FC |
| WIELAND | 73.700.6458.0 | 73.710.6458.0 |
| AMPHENOL |
Heavy-duty connector is a modular connector product line, mainly composed of upper and lower covers, ferrules, pins and other components. It is specially designed to meet the requirements of harsh environmental conditions and is widely used in industrial automation, hot runner molds, rail transit, wind energy, equipment manufacturing, industrial system connection, and information and control fields.
Advantage
The use of pre-installation can greatly improve the efficiency of equipment installation and reduce the error rate of wiring.
Abundant combinations and modular combinations maximize the effective utilization of equipment space.
Heavy-duty connectors provide high protection levels (IP65, IP67, IP68) for the unparalleled advantages of equipment connection systems in harsh environments.
Reliable and safe locking system design.
Modular design can meet the needs of different customers.
The rich product series of SMICO connectors can meet the electrical or signal connection in different fields and occasions.
Meet the requirements to ensure the safe, reliable and efficient coordinated operation of various components in various environments.
Location
- Machinery
- Automation
- Robotics
- Rail
- Energy Distribution
- Renewable Energy
- Construction Machinery
- Professional Light and Sound

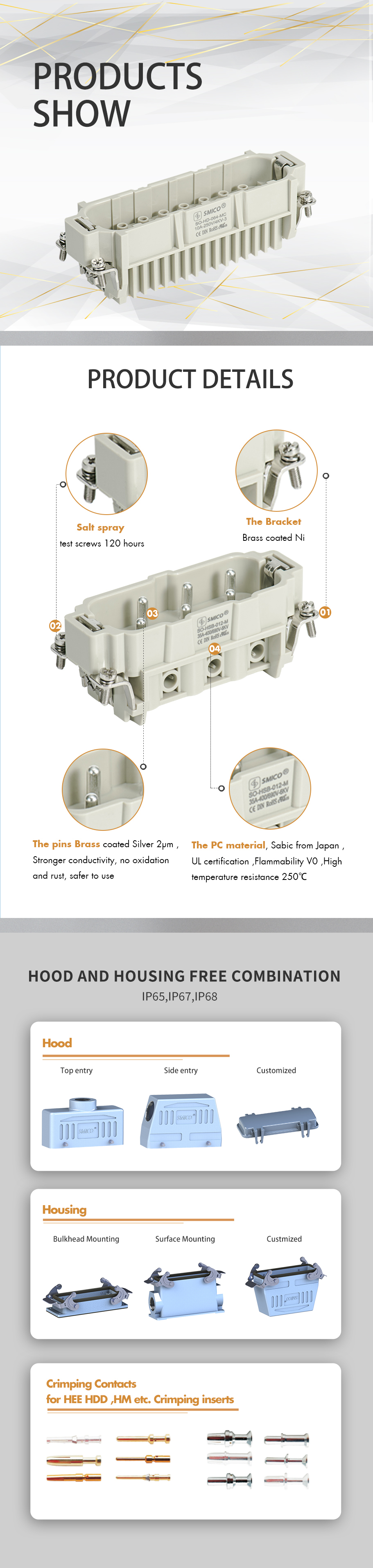

Packaging
Videos
Downloads
| 64 Pin Heavy Duty Connector,Waterproof Industrial Rectangular Connectors 09210643001 HD-064-MC | Download |
FAQs
01.How many employees are there in your factory?
We have more than 130 employees, including the entire production chain.
02.Whether to provide technical documents?
Sure. If there is anything unclear about the product, we will provide you with as detailed technical documents as possible.
03.Does this insert can fit with my frame?
Our module insert can fit with Harting,ILME,Weidmuller,TE and other brand.
04.How to order?
Please email us your purchase order and we will send you a quotation and a proforma invoice.
