3pin HA Silm hdc heavy duty connectors insert 09200032611
- Number of contacts:
- 3
- Rated current:
- 10A
- Part:
- SO-HA-003-M
- Packaging Details:
- Standard Export Cartons
- Delivery Time:
- Within 7 Days
- Payment Terms:
- L/C, T/T, Western Union, Paypal
- Supply Ability:
- 100000 pcs per month
- Rated voltage conductor:
- 230/400V
- Order No.:
- 09200032611

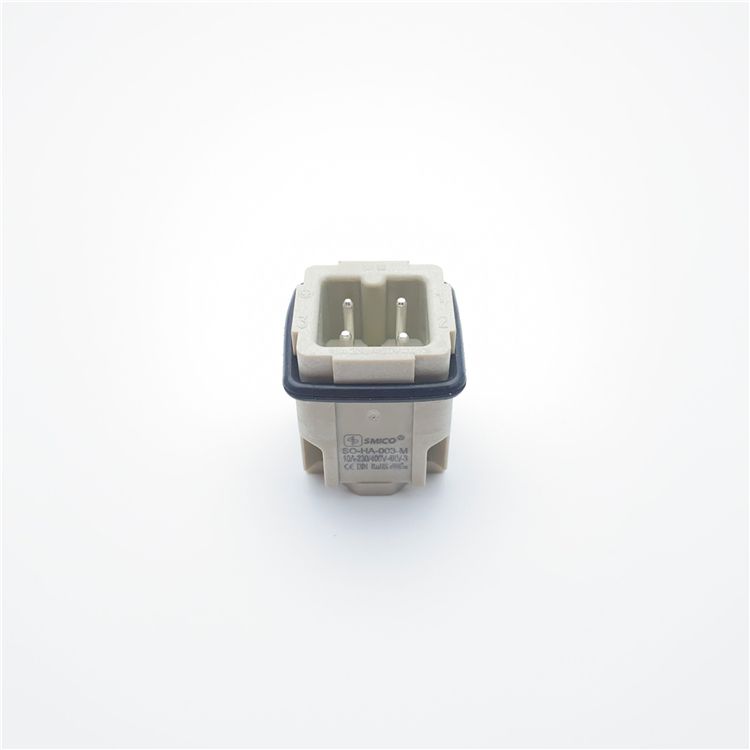

3pin HA Silm hdc heavy duty connectors insert 09200032611
HA Silm hdc heavy duty connectors insert -SMICO Connectivity 3pin 4pin HA-003-M ,10A used for industrial robot ,various harness field .
Different position to install and free combination to use .

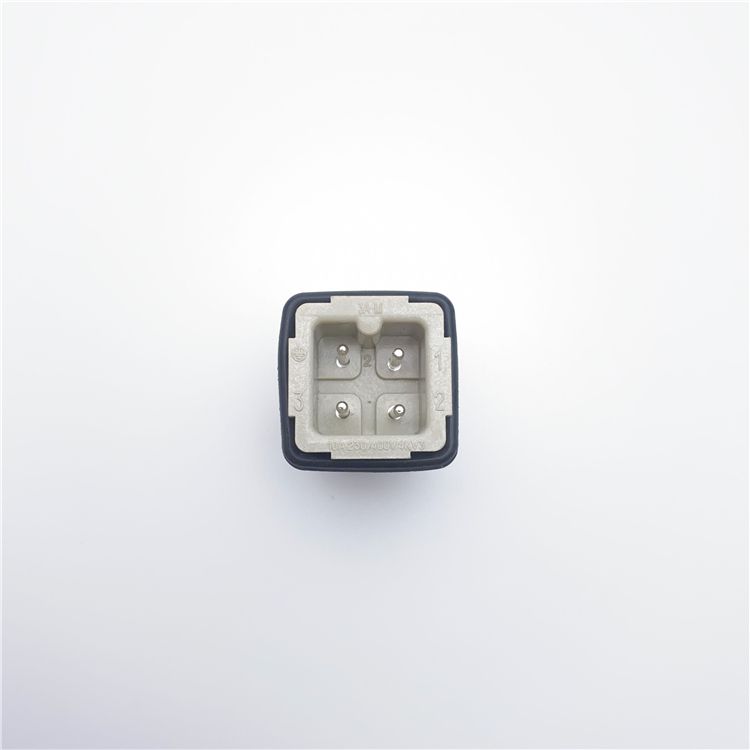

3 Poles + PE, 10 A Male Screw Terminal :
| Silm Inserts | Suitable Shell:3AHood/Housing |
| Number of contacts | 3 |
| Electrical data acc. to EN 61 984 | |
| ---Rated current | 10A |
| ---Rated voltage conductor | 230/400V |
| ---Rated impulse voltage | 4kV |
| ---Pollution degree | 3 |
| ---or | 10A 250V 4kV 3 |
| Rated voltage acc. to UL | 600V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-gold plated |
| hard-silver plated | |
| Contact resistance | ≤1mΩ |
| Screw terminal | |
| ---Wrie gauge | 1.0-2.5mm2 |
| ---AWG | 18-14 |
| ---Tightening/Test torque | 0.25N·m |
SMICO heavy duty connector can match the following interchangeable.
The hood and housing for H3A .
| Suppier | Plug insert | Socket insert |
| SMICO | SO-HA-003-M | SO-HA-003-F |
| H | 09200032611 | 09200032611 |
| ILME | CKM03 | CKF03 |
| TE | ||
| LAPP EPIC | 10420000 | 10421000 |
| PHOENIX | 1585252 | 1585265 |
| MOLEX | ||
| WEIDMULLER | HDC HA 3 MS | HDC HA 3 FS |
| WIELAND | 73.310.0353.0 | 73.300.0353.0 |
| AMPHENOL |
SMICO heavy duty connector
-
Compatible with other brands
-
accept OEM /ODM
-
accept customized colour : like blue ,black
-
The popular parts in stock , delivery time fast
-
Export Packing : Packing for each items respectively or packing for full one set
-
Without MOQ except the customized type

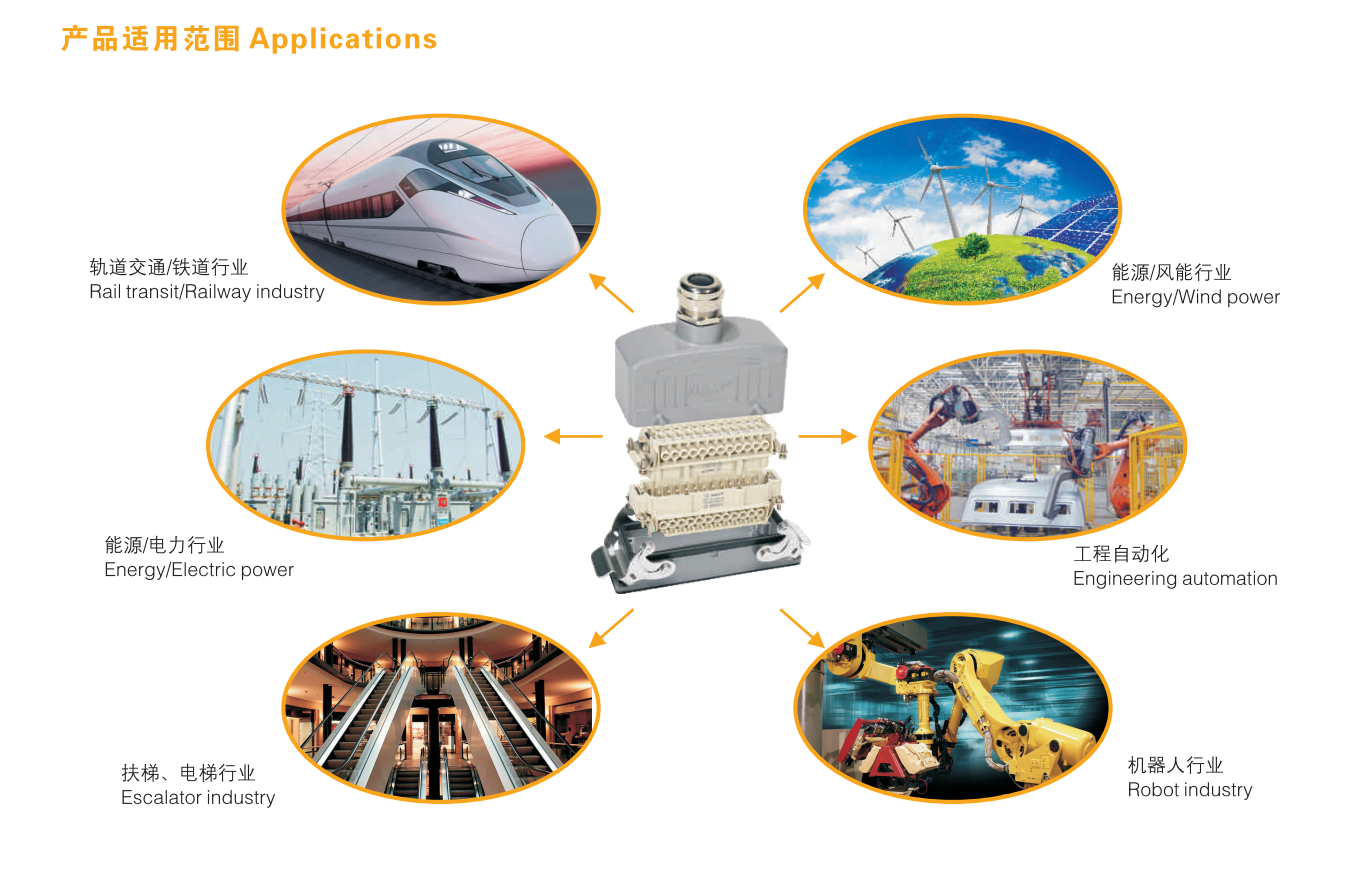

SMICO Heavy duty connectors Applications :
- Machinery
- Automation
- Robotics
- Rail
- Energy Distribution
- Renewable Energy
- Construction Machinery
- Professional Light and Sound
Heavy duty connector H3A hood and Housing :
- H3A.P PC materials , white colour IP65
- HP3/H Zine dia-cost ,epoxy poder coating ,black colour , IP68
- H3A Zinc die-cast ,Grey colour ,IP65 ,Popular type
Hood&Housing Material aluminium die-cast Colour Grey Locking element ---Lever type metal elastic pressing ---Material Stainless steel Hoods/Housing sealing NBR Limiting temperatures -40ºC...+125ºC Flammability acc.to UL 94 V0 Degree of protection acc.to EN 60529 for coupled connector IP65
