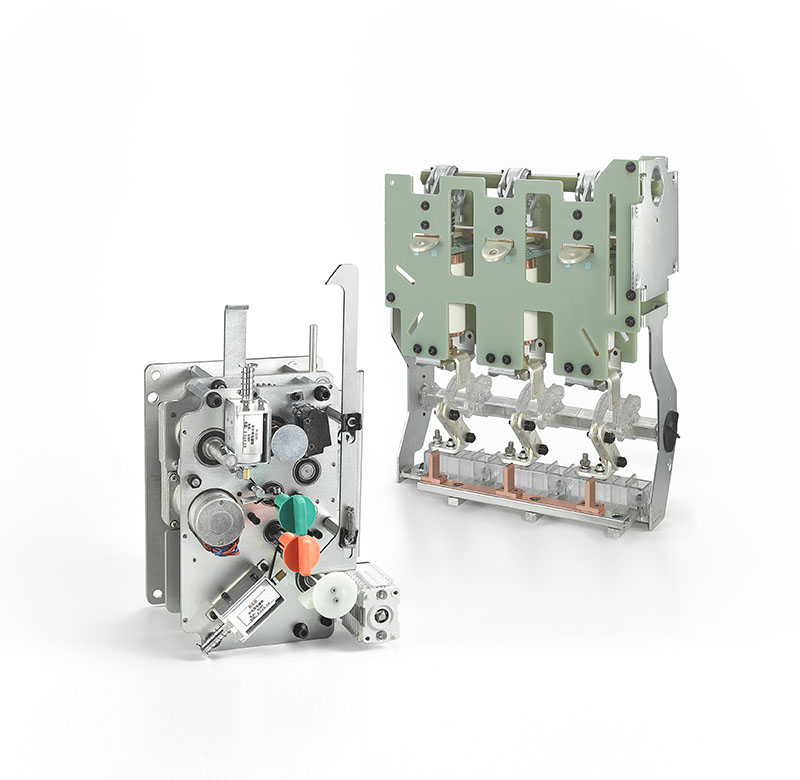

The SF6 circuit breaker V Cabinet spring Operating Mechanism special for 12kV SF6 C-GIS circuit breaker unit
Operation and control by hand, electric energy storage, close and split electromagnetic wire coil, with manual knob type close and open brake
Rigid interlocking device, high reliability

Product introduction

The SF6 circuit breaker V Cabinet spring Operating Mechanism special for 12kV SF6 C-GIS circuit breaker unit
Operation and control by hand, electric energy storage, close and split electromagnetic wire coil, with manual knob type close and open brake
Rigid interlocking device, high reliability
China V cabinet circuit breaker operating mechanism with Strong adaptability, only need to adjust the 4-M8x20 welding stud position on the user’s air chamber
China V cabinet circuit breaker operating mechanism with re-closing function, rated operation order: O-0.3S-CO

Technical parameters

Mechanical life: 10000 times

Closing output power: 85J

Output Angle: 90°

Operating voltage: AC/DC (24V/48V/110V/220V optional)

Auxiliary switch: 4K4B/6K6B/8K8B Optional

Product advantage

The vast majority of similar domestic products adopt low-cost rubber cushion, which is difficult to adjust, easy to age and easy to rebound. Now SMICO it is improved to replace rubber cushion with oil buffer, which fundamentally avoids the above problems. The problem of friction between the spring and the shell of the old mechanism is solved by the innovative guide rod

SF6 circuit breaker V Cabinet spring Operating Mechanism with silicon sol casting process is adopted to avoid the porosity of the traditional fine casting steel parts and the deformation of the electric welding parts.
