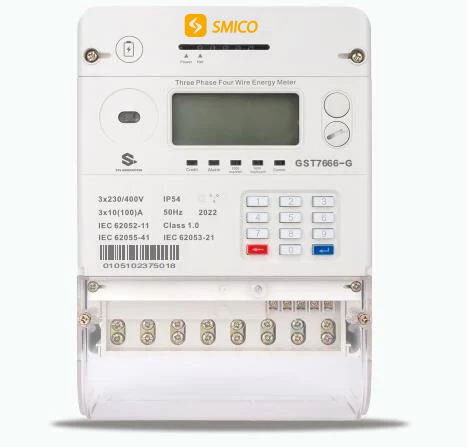

GST7666-G Three-phase Keypad Smart Energy Mete

Details

GST7666-G is a three-phase multi-function energy meter with embedded communication modules，used to accurately measure energy for commercial,industrial & residential customers.

The meter supports optional communication modules of PLC/RF/GPRS/3G/4G, with communication protocol complying with DLMS/COSEM protocol. It could be optionally used in STS-compliant prepayment mode or postpayment mode , withor without communication module based on requirements.

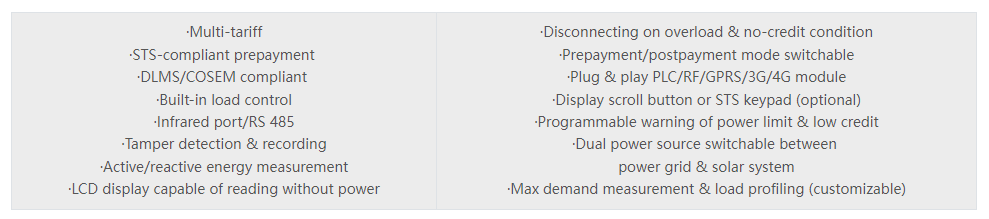

Main Features

Split-type Surcture for Anti-tampering Portection

The meter consists of two parts, the MCU (Metering & Control Unit) and CIU (Customer Interface Unit), which could be linked via communication modes of M-bus, PLC or RF based on requirements.The CIU is installed inside the customer’s home for inputting prepayment token and searching for information, while the MCU is normally installed in a meter enclosure away from the customer’s home.
